STOTT PILATES V2 Max Plus Reformer - Part Identification - Reformers

4

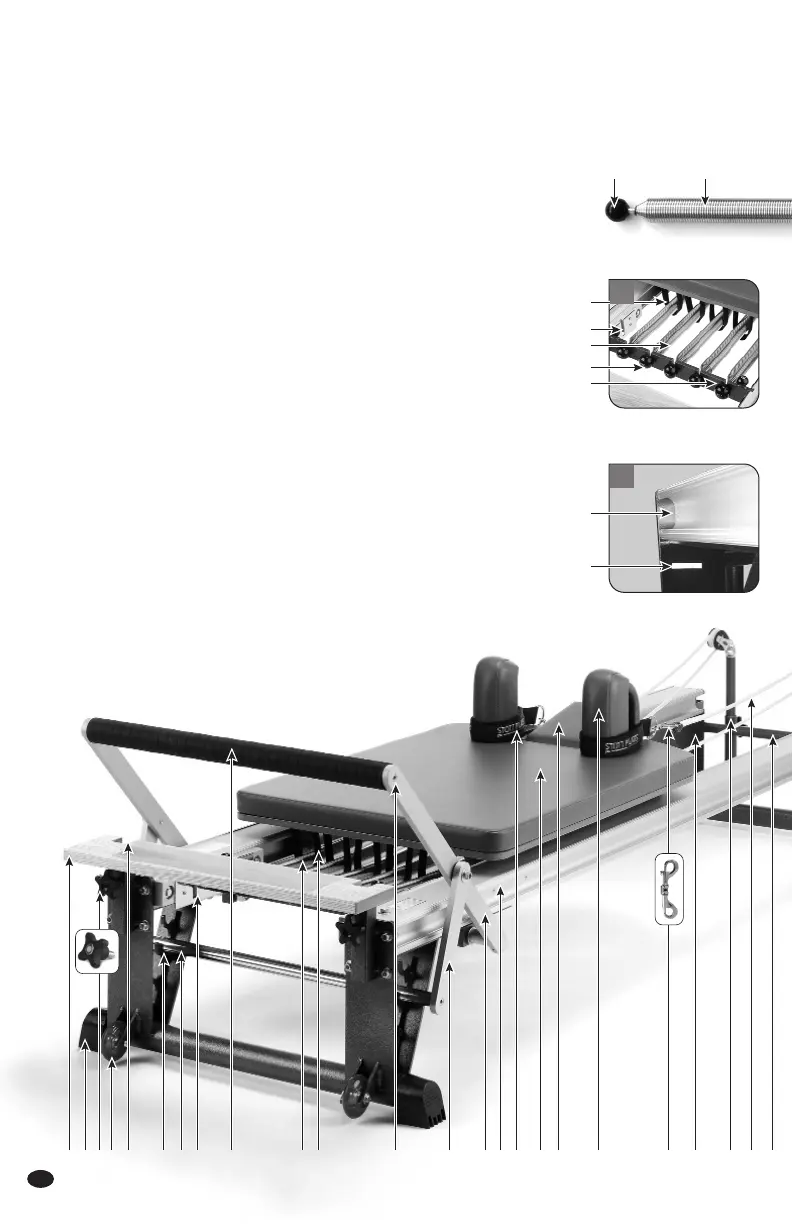

Part Identification for STOTT PILATES
®
Reformers
4
26 Rope Retaining Hook [fig. G]
RETRACTABLE ROPE SYSTEM
27 Socket Head Cap Screw
28 C-channel [fig. C]
29 Carriage Stopper Position [fig. H]
30 Carriage Stopper [fig. C & H]
31 Small Swing Arm Bar
32 Large Swing Arm Bar
33 Aluminum Rail [fig. H]
34 Soft Reformer Loop
35 Carriage [fig. E, F & G]
36 Headrest
37 Padded Shoulder Rest
38 Double-Ended Swivel Spring Clip
RETRACTABLE ROPE SYSTEM
39 Serial Number [fig. C]
40 Pulleybar Receptacle
41 Rope [fig. E & F]
42 Horizontal Metal Bar
PRO & REHAB
43 Horizontal Metal Frame [fig. D]
44 Pulley [fig. I]
45 Pulley Spring [fig. I]
46 Eyehook [fig. D & I]
47 Pulleybar [fig. D]
48 Receptacle Cap
49 3/8” Star Knob [fig. D & E]
1234 5 67 108 11 17 27 31 32 3433
1 Wooden Standing Platform
2 Plastic Foot
PRO & REHAB
3 1/2” Star Knob
4 Easy-Roll Wheel
5 Accessory Board Receptacle
6 Footbar Adjustment Cradle
7 Swing Arm Support
8 Gearbar Slot [fig. B]
9 Gearbar [fig. B]
10 Footbar
11 Spring [fig. A & B]
12 Spring Ball
13 Spring Coil [fig. A]
14 Fixed Cube Nut [fig. A]
15 Spring Bolt [fig. A]
16 Nylon Locknut [fig. A]
17 Spring Holding Loop [fig. B, E & F]
18 Floating Roller [fig. E & F]
19 Fixed Roller [fig. E & F]
20 Bronze Bushing [fig. E & F]
21 Spring Anchoring Bar [fig. E & F]
22 Chrome Tube [fig. E]
TRADITIONAL ROPE SYSTEM
23 Rope Housing Reel [fig. F] RETRACTABLE ROPE SYSTEM
24 Cotter Pin [fig. F] RETRACTABLE ROPE SYSTEM
25 Self-Locking Cleat [fig. F & G]
RETRACTABLE ROPE SYSTEM
35 36 37 38 40 41 42
FIG A – SPRING
12 13
11
12
8.
17
B
9.
FRONT OF
REFORMER
GEARBAR & SPRINGS
12 13
BALL END OF SPRING
C
SERIAL NUMBER STICKER
39
39.
28.
