STOVES Q900GRF DO - Dimensions and Connection Procedures

Dimensions

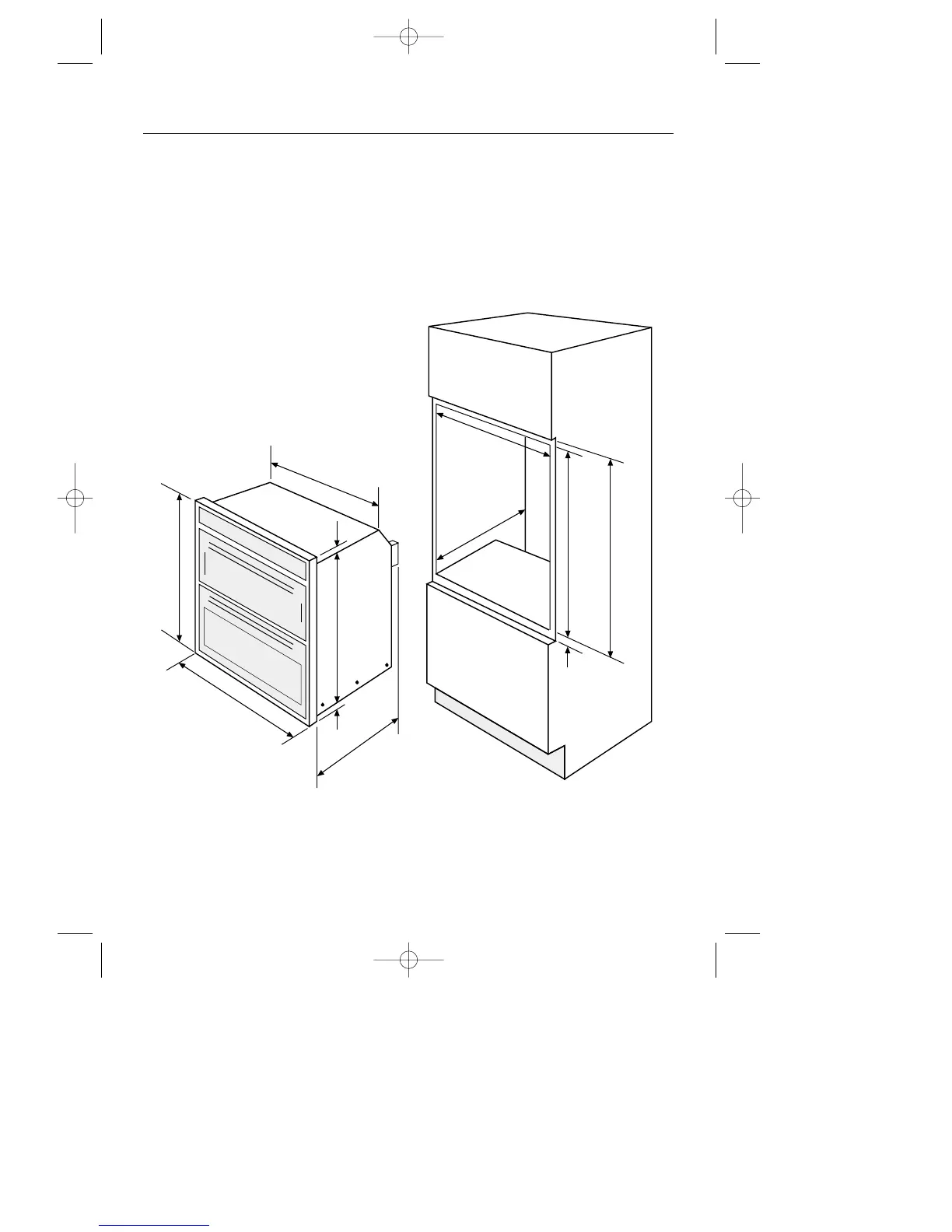

The appliance is designed to fit into a
standard 600mm wide housing unit,
with minimum internal dimensions as
shown.
Note: All sizes are nominal, some
variation is to be expected.
18
min
560 mm
550 mm
min
min
880
mm
869
mm
892
mm
min
888
mm
min
7 mm
547 mm
595 mm
550 mm
17 mm
6 mm
INSTALLATION INSTRUCTIONS
