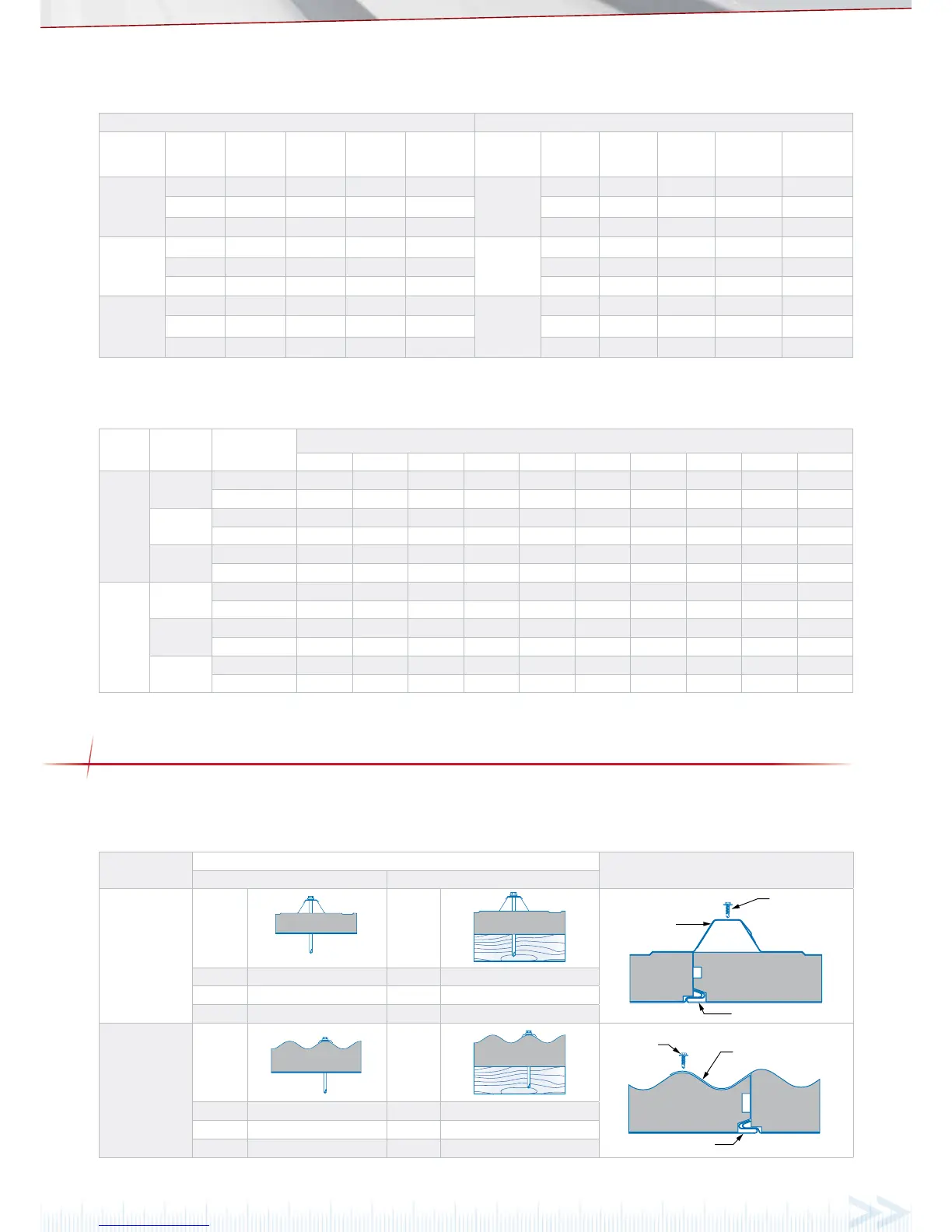

FIXING RECOMMENDATIONS
Cooldek roong should be laid into the prevailing wind and sit neatly on the preceding roof sheet. For Classic prole fasten
through each crest and for CGI prole fasten through every second crest. Use cyclone caps and neoprene washers in all crest
xings. Fix side laps with 12x20 hex head screws with neoprene washers at approximately 1000mm centres, refer below.
The values in all the above tables are for use with steel supports with a minimum thickness of 1.0mm BMT, G550, or timber supports with fixing details as
specified below.
SINGLE SPAN WIND CAPACITIES (kPa)
Table 3
Profile
Panel
Thickness
(mm)
Limit State
SPAN (mm)
1800 2400 3000 3600 4200 4800 5400 6000 6600 7200
Classic
50
Serviceability 3.80 2.69 2.06 1.66 1.38 1.18 1.02 - - -
Strength 6.70 4.50 3.30 2.56 2.07 1.72 1.46 - - -
75
Serviceability - 4.86 3.43 2.58 2.02 1.64 1.37 1.16 1.00 -
Strength - 5.11 3.63 2.75 2.17 1.77 1.48 1.26 1.08 -
100
Serviceability - - 3.51 2.78 2.27 1.91 1.65 1.44 1.27 1.14
Strength - - 4.58 3.47 2.74 2.24 1.87 1.59 1.38 1.21
CGI
50
Serviceability 3.72 2.62 1.99 1.60 1.32 1.13 0.97 - - -
Strength 6.78 4.47 3.24 2.49 1.99 1.64 1.38 - - -
75
Serviceability - 3.81 2.86 2.27 1.86 1.57 1.35 1.18 1.04 -
Strength - 5.84 4.15 3.14 2.48 2.02 1.69 1.44 1.24 -
100
Serviceability - - 3.74 2.89 2.33 1.93 1.63 1.41 1.23 1.09
Strength - - 4.20 3.30 2.69 2.25 1.92 1.67 1.47 1.31
SINGLE SPANS - Domestic Patio Application
Maximum allowable 900mm deck overhang for 50 & 75mm panels and 1200mm for 100mm panels, except in wind classification N4 in which maximum allowable shall be
900mm. The cladding back span shall be no less than 1.5 times the deck overhang. If values are shown in brackets they represent the maximum allowable span if an overhang
is used. For a side to be considered open, the full length of the side must be open.
Table 2
COOLDEK CLASSIC COOLDEK CGI
Open Sides
Panel
Thickness
(mm)
N1 (W28) N2 (W33) N3 (W41) N4 (W50) Open Sides
Panel
Thickness
(mm)
N1 (W28) N2 (W33) N3 (W41) N4 (W50)
Three
50 5400 5400 5400 4200 (3900)
Three
50 5400 5400 5100 3900
75 6600 6600 6000 4800 (3900) 75 6600 6600 6000 4800 (3900)
100 7200 7200 6600 6000 100 7200 7200 6900 6000
Two
50 5400 5400 3900 3300 (3000)
Two
50 5400 5100 3600 3000
75 6600 5500 4800 3900 (3000) 75 6600 5700 4800 3900 (3000)
100 7200 6300 5400 4100 (3500) 100 7200 6600 5400 4100 (3500)
One/None
or
Gable Patio
50 5400 4500 3300 3000 (2000)
One/None
or
Gable Patio
50 5400 4500 3300 3000 (2000)
75 6000 4800 3900 3300 (2100) 75 6300 5100 3900 3300 (2100)
100 6900 5400 4200 3600 (2400) 100 7200 5700 4200 3600 (2400)
Fastener Size Selection
Lapping
Fixing to Steel (minimum 1.0 BMT) Fixing to Timber
Cooldek Classic
Crest Fixing Only
One fixing
required per crest
Panel
Thickness
(mm)
Panel
Thickness
(mm)
50 14-10x125 hex head screw 50 14-10x125 Type 17 screw
75 14-10x150 hex head screw 75 14-10x150 Type 17 screw
100 14-10x175 hex head screw 100 14-10x175 Type 17 screw
Cooldek CGI
Crest Fixing Only
One fixing
required every
second crest
Panel
Thickness
(mm)
Panel
Thickness
(mm)
50 14-10x110 hex head screw 50 14-10x110 Type 17 screw
75 14-10x125 hex head screw 75 14-10x150 Type 17 screw
100 14-10x150 hex head screw 100 14-10x175 Type 17 screw
Table 4
Side lap
Screw
Slip joint
Screw
Slip joint
Side lap
