Stratco HOMESHEDS - Concrete Slab Only

Type C: 16mm plate thickness, 24mm hole
diameter.
Each plate is fixed with two M20 threaded rods
embedded a minimum of 200mm below the thickness
of the slab (e.g.,100mm slab thickness will require
minimum 300mm anchor embedment). Drilled hole
shall be 24mm diameter with chemical injection
required to set anchors.
Refer Figure 4 INTEGRATED FOOTING BASE PLATE
FIXING.
Threaded rod will need to be cut to the required
length.
End columns require the same fixing details as
indicated above. Refer to “Concrete Slab Only”
specification below for fixing requirements of centre
roller door columns on Type 2 sheds.
Refer to manufacturer's specifications for chemical
injection fixing details and setting times.
Notes:
3
Concrete Slab Only:
For this application base plates are to be fixed with
four M12 chemical capsule anchor studs at 90mm
concrete embedment. End columns will require the
same fixing details. Refer Figure 5 SLAB ONLY BASE
PLATE FIXING.

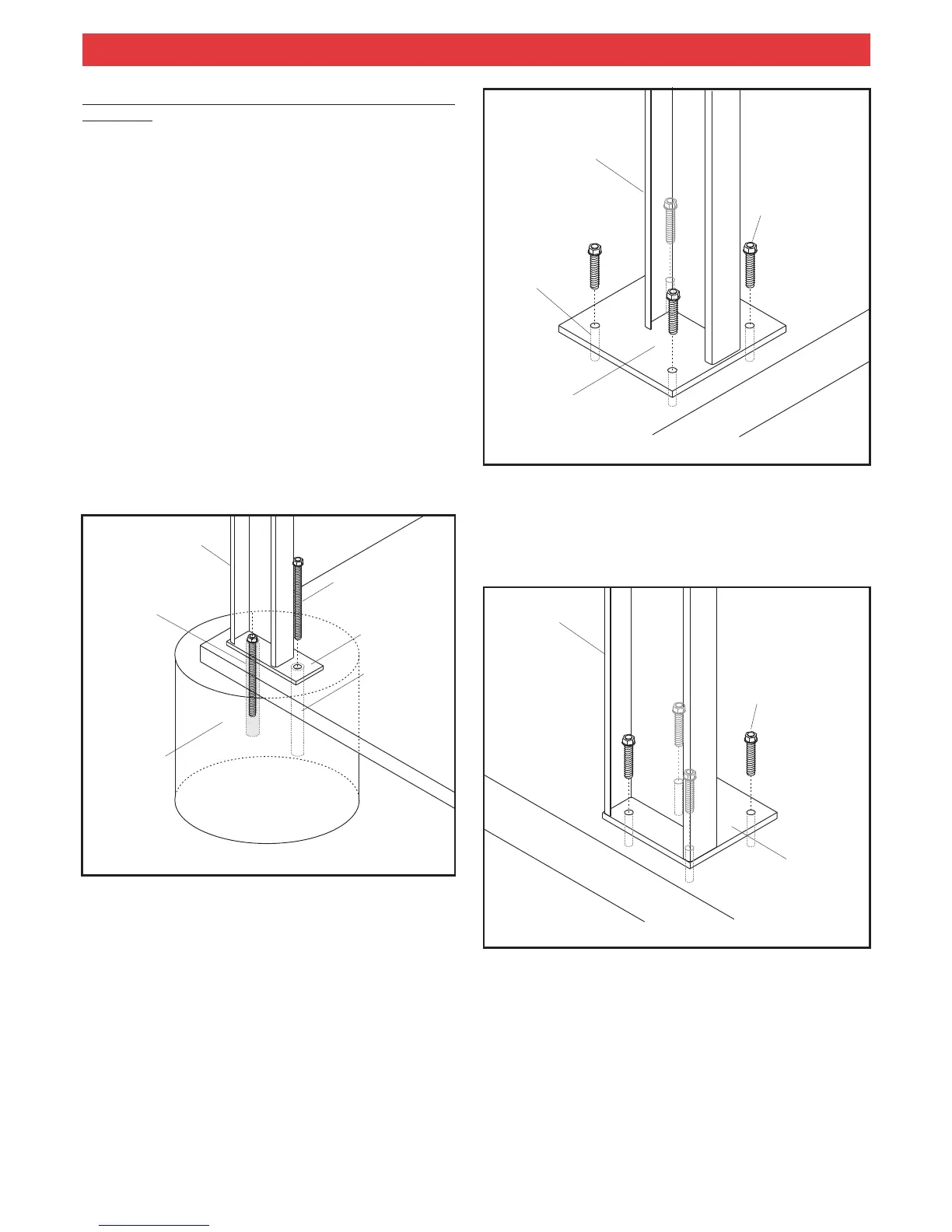

Figure 4 INTEGRATED FOOTING BASE PLATE FIXING
COLUMN
BASE PLATE
CHEMICAL INJECT
ANCHOR
INTEGRATED
FOOTING
PREDRILLED
HOLE
Figure 5 SLAB ONLY BASE PLATE FIXING
COLUMN
BASE PLATE
CHEMICAL
CAPSULE
ANCHOR
PREDRILLED
HOLE
For Type 2 Gable Homesheds in either of the slab
applications, the centre roller door column base plate is
to be fixed with four M12 chemical capsule anchor
studs at 90mm concrete embedment. Refer Figure 6
CENTRE ROLLER DOOR COLUMN FIXING.
COLUMN
CHEMICAL
CAPSULE ANCHOR
Figure 6 CENTRE ROLLER DOOR COLUMN FIXING
BASE PLATE
Refer to manufacturer's specifications for chemical
capsule fixing details and setting times.
Continue with “Framework” instructions to complete
shed.
THREADED ROD
