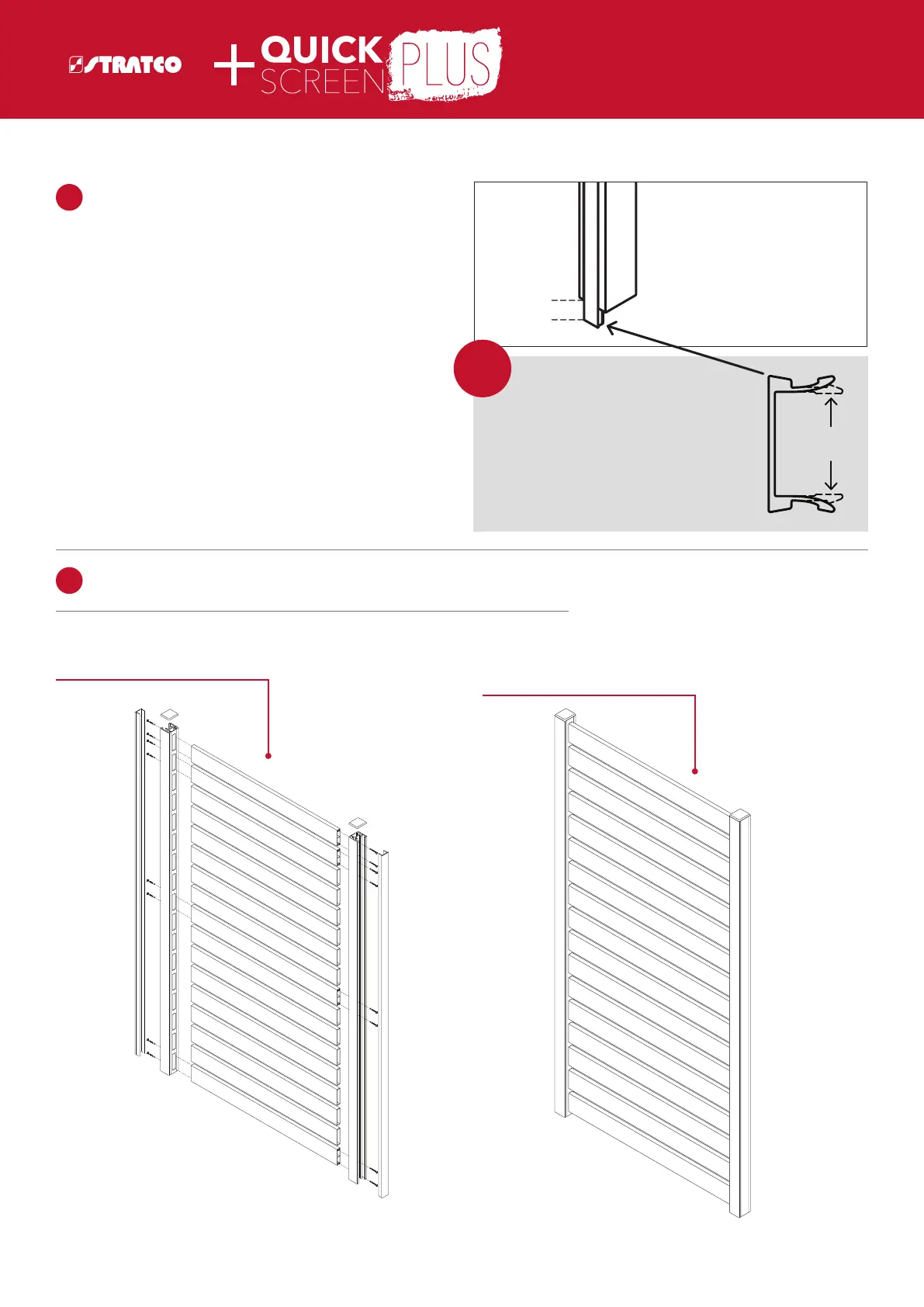

EXPLODED VIEW
COMPLETE GATE
⁄” (10mm)
Insert top caps into side frames.
Important note:
Using pliers, bend
inner legs of outer infill
slightly outward to lock
into position.
Slide 2x outer infills past end of gate side frame
approximately ⁄” (10mm), then using pliers, bend
inner legs of outer infill slightly outwards.
Tap outer infill back to level with gate side frame.
This step is required to stop the outer infill from
sliding down.
!
8
9
PEDESTRIAN GATE
ASSEMBLY GUIDE
