Using the Universal Bracket

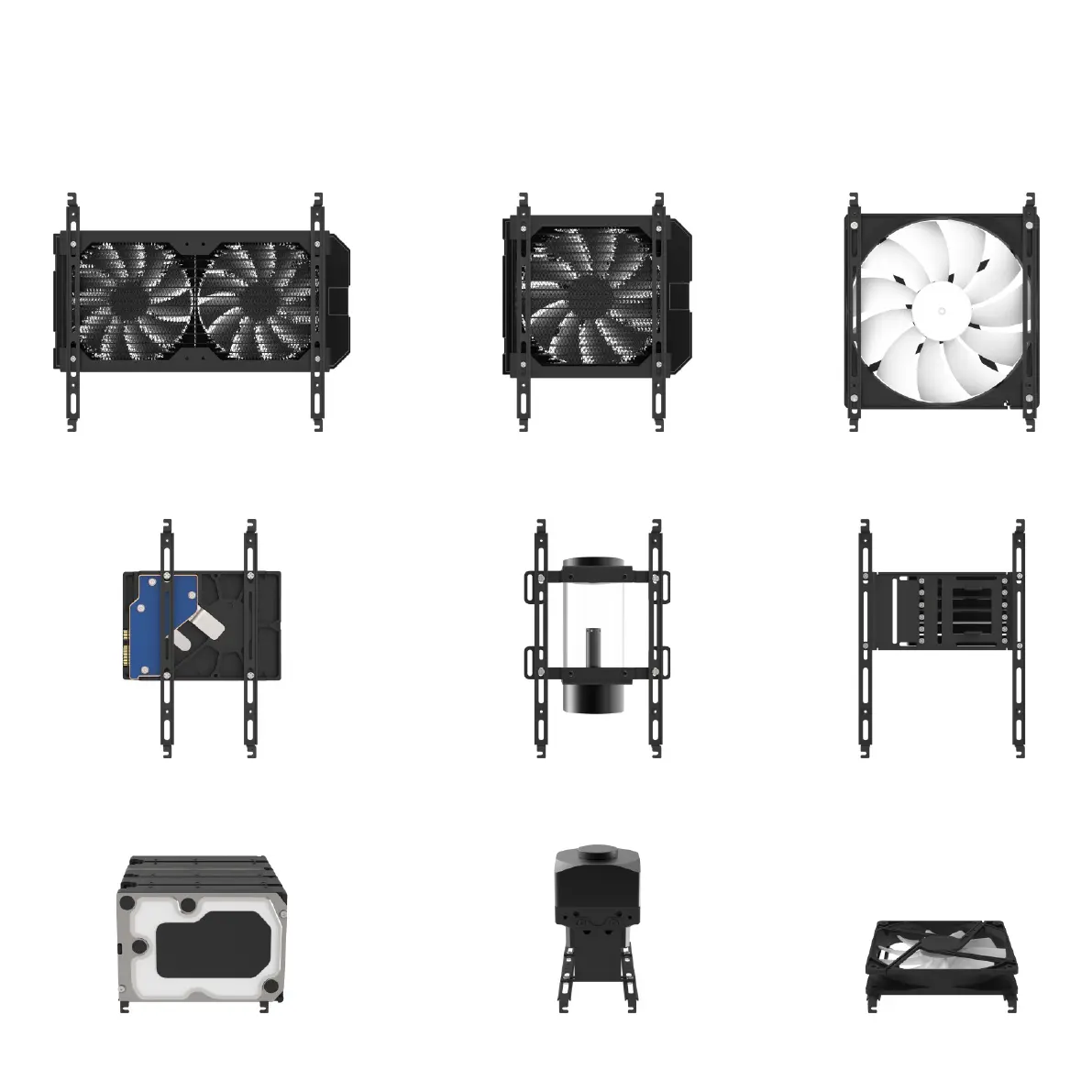

The universal brackets are incredibly versatile and in principle, there is no wrong way to use them, the main limitation is the space available and how creative you
want to get. Fan screws and washers are supplied but typically the hardware being mounted will be supplied with the correct screw thread and length. Below are
just a few examples of what can be mounted using the vertical brackets, with the bottom row showing the horizontal bracket usage.
280mm Radiator 140mm Radiator 180mm Fan
3.5" Drive 150mm Reservoir 2.5" Drives (with drive bracket)
3.5" Drives Water Pump 140mm Fan
