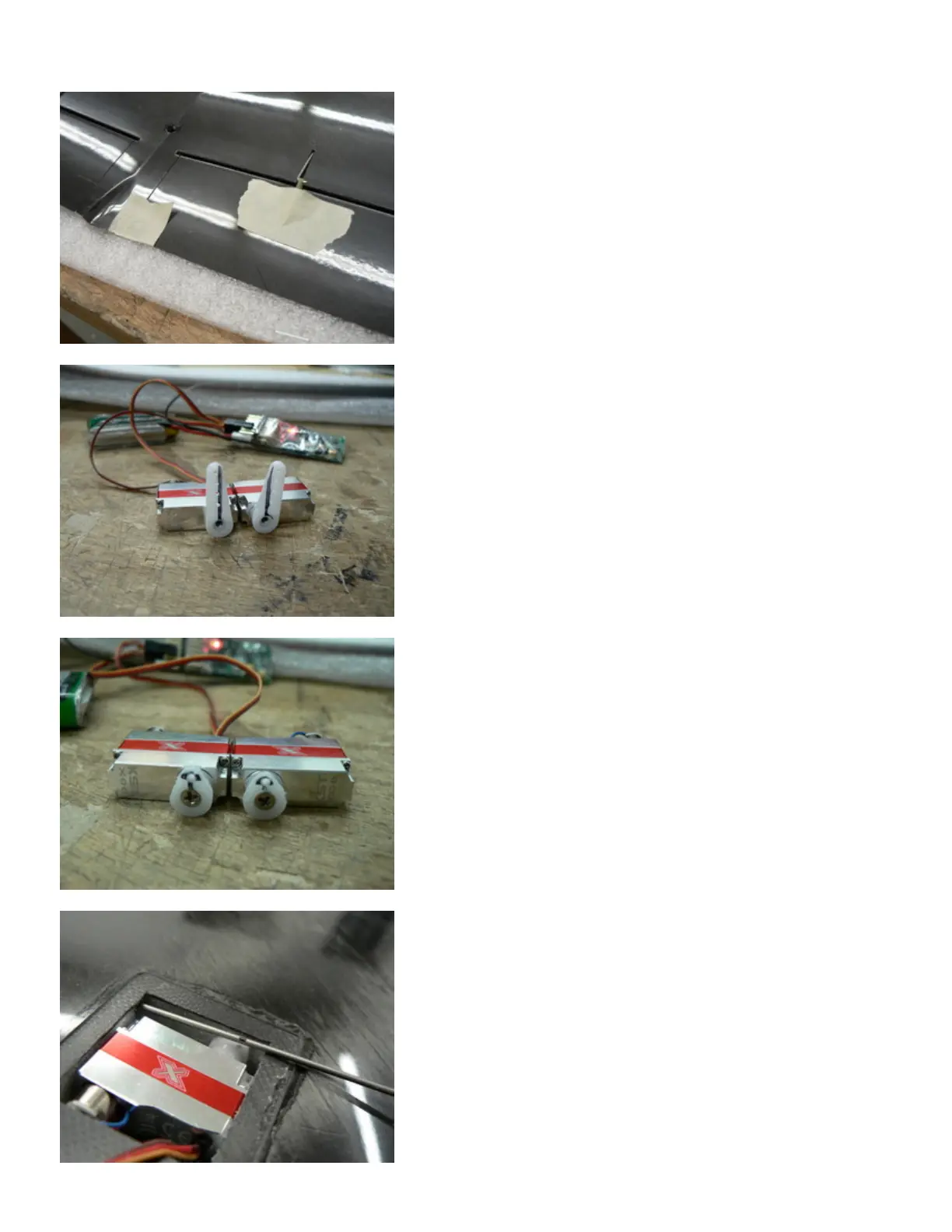

Tape the aileron ends to the wing root tabs to keep them at zero
deflection. Insert the long end of the pushrod wire into the channel.
Install the control horn into the slot and temporarily tape it down.
Prepare the servos and servo arms. Set the servos to the neutral
position. Attach two servo arms as close to 90 degrees as possible.
Draw a line on each arm at exactly 90 degrees. Mark locations of the
new holes, about 4.5-5.0 mm from the axis.
Drill new holes in the servo arms. Cut off all excess material around
the holes to make two nice looking very short servo arms. The
objective is to hide the entire servo and its arm under the cover.
Important! Electronically deflect both servos equally about 20-25
degrees towards the leading edge. This will be the neutral point for
the ailerons. This will provide more down travel for the ailerons
(when used for landing). Drop the servos into the pockets and center
them between the fore/aft walls of the pockets. Mark the location of
the bend on the pushrod wire.
