Streamax X7PRO-H0808 - Rear Panel Layout

User Manual for X7 SE -H0808
For more information, please visit our website www.en.streamax.com
8 - 12

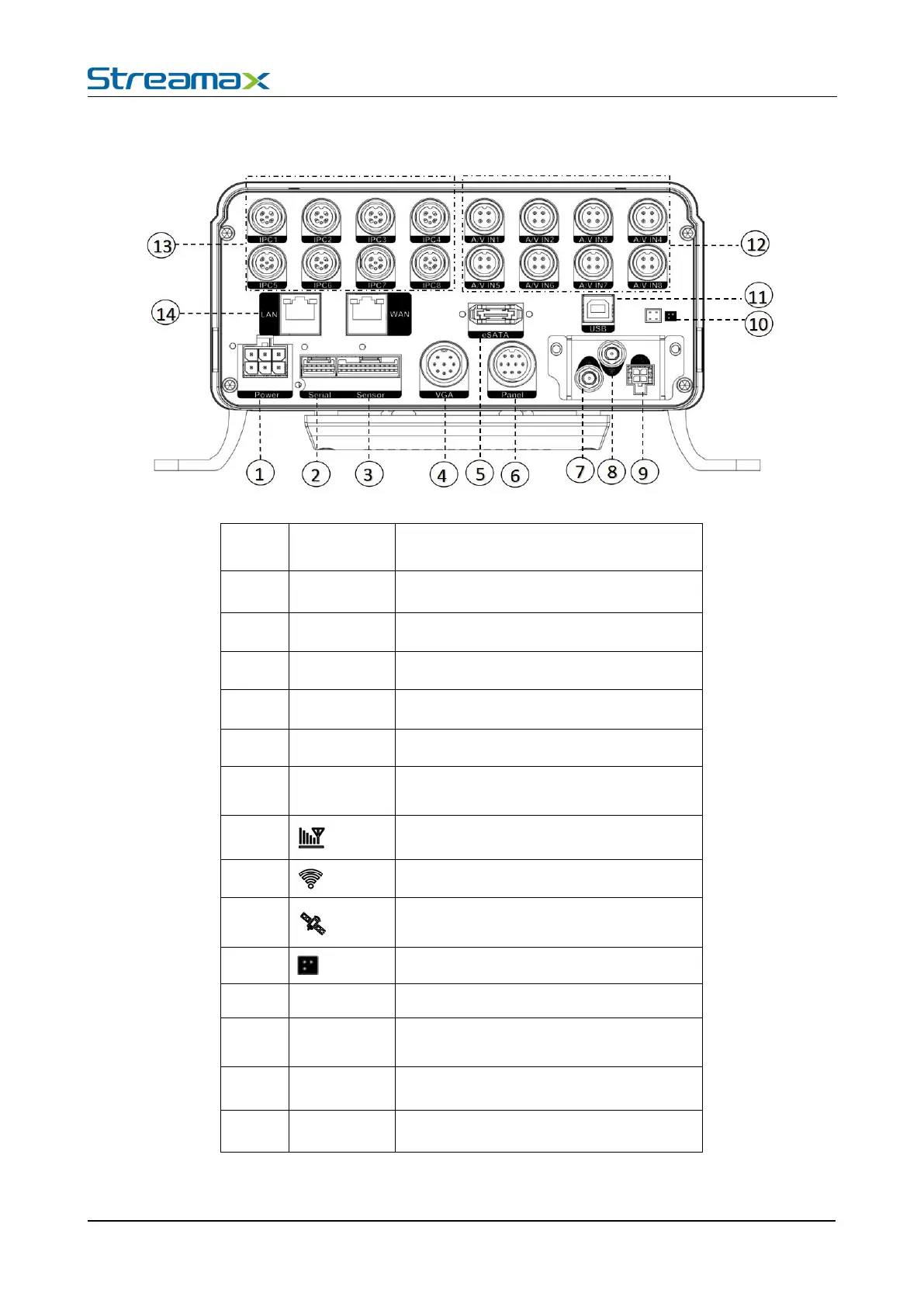

Rear Panel
No.
Print
Description
1
Power
DC8-36V power input
2
Serial
Serial interface
3
Sensor
Sensor interface
4
VGA
VGA video interface
5
eSATA
eSATA interface
6
Panel
Control Panel (CP4) interface
7
3G / 4G antenna interface
8
WIFI antenna interface
9
GPS antenna interface
10
Print serial interface
11
USB
USB 2.0 interface (type-B)
12
A/V IN 1~8
AHD interfaces 1 to 8
13
IPC 1~8
IPC interfaces 1 to 8
14
WAN/LAN
RJ45 (10/100/1000M) network port
