12 BA_141-30-40_A6-7_140416_en

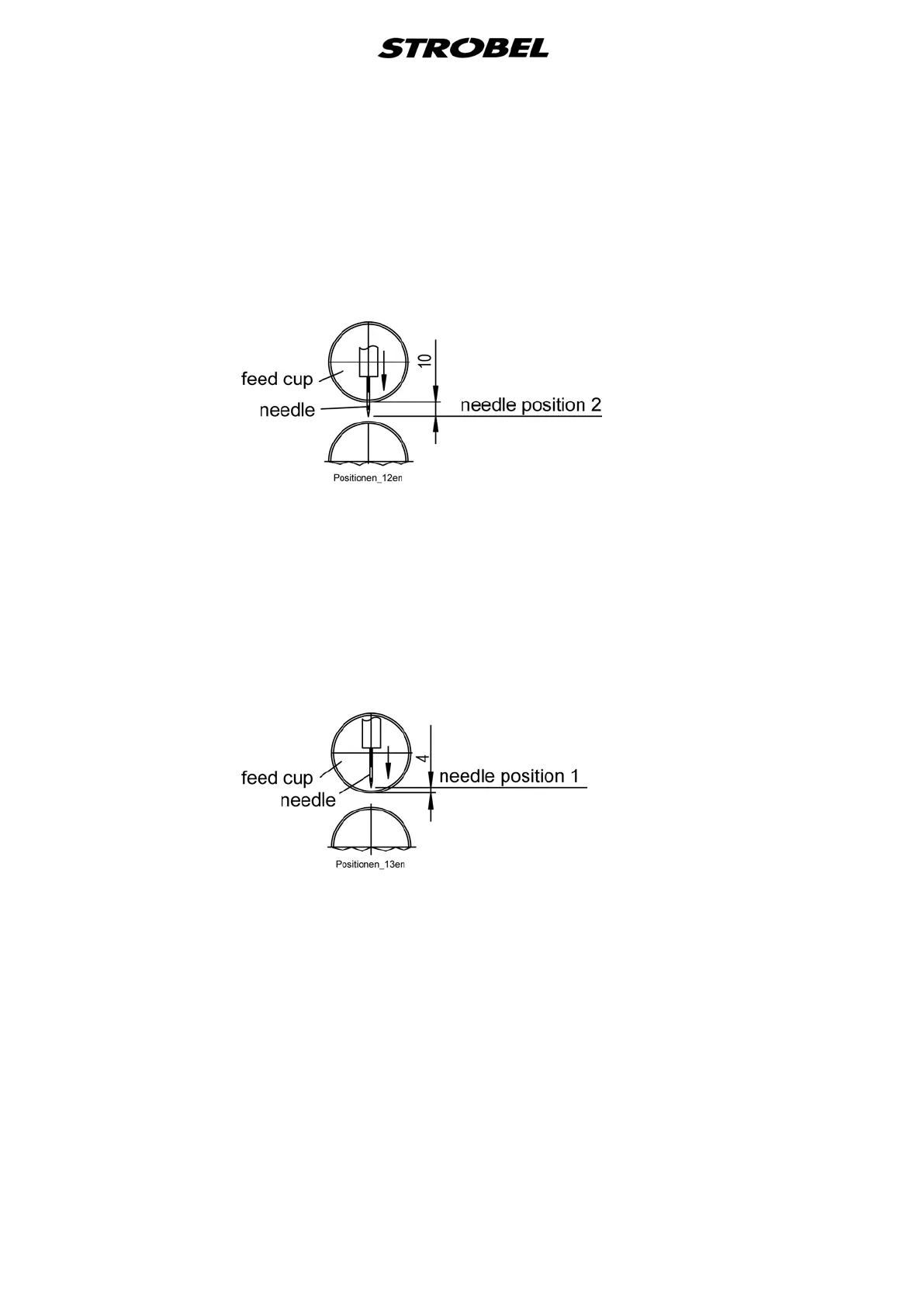

Needle position (with stop outside the seam with pedal position "-2"
(Fig. 4)):
The needle position must be set in such a way, that the distance between
the outer table edge in the stitch direction and the tip of the needle is
about 10 mm.
Needle position is position 2 at the sewing drive.
Fig. 4
Needle position (with stop in and outside the seam with pedal position "0" (Fig.
5)):
The needle position must be set in such a way, that the distance between
the tip of the needle in the stitch direction and outer table edge is about 4
mm.
Needle position is position 1 at the sewing drive.
Fig. 5
