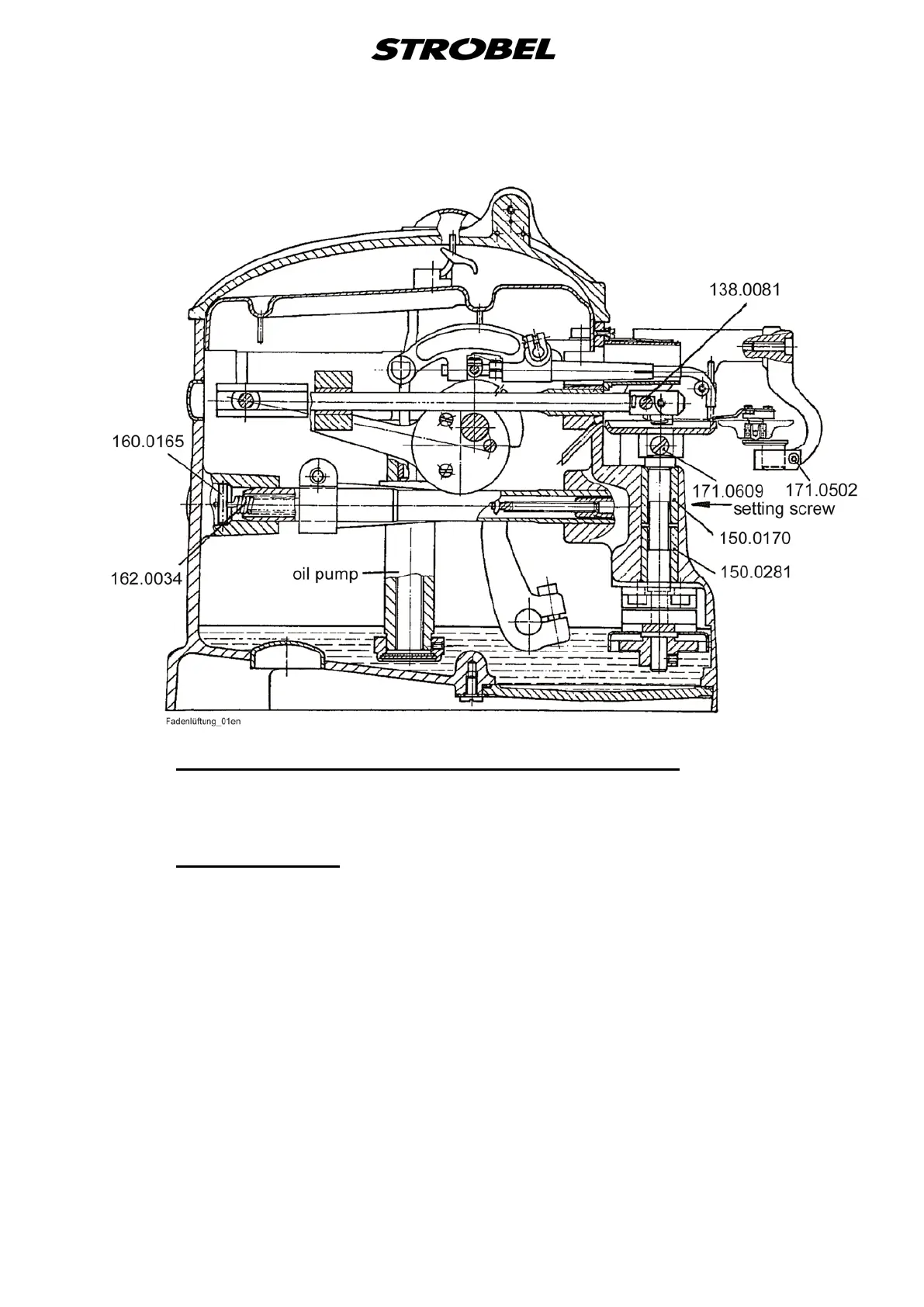

Fig. 9
4.10 Spring tension at feed cup support arm 333.0114
The tension of spring 162.0034 should be adapted to each specific fabric. For
diver’s suits, it is approx. 70 N, for shoes up to 200 N. (Fig. 1 and Fig. 9)
4.10.1 Plate arm lifting
The plate arm lifting is about 12 - 14 mm for all machines. Lever 221.0194 and
lever 121.0033 have to be appropriately adjusted to each other (Fig. 9)
