Strobel 142-30 - Page 30

26 MA_141_142_A10-6-7-3-6-5_130617_en

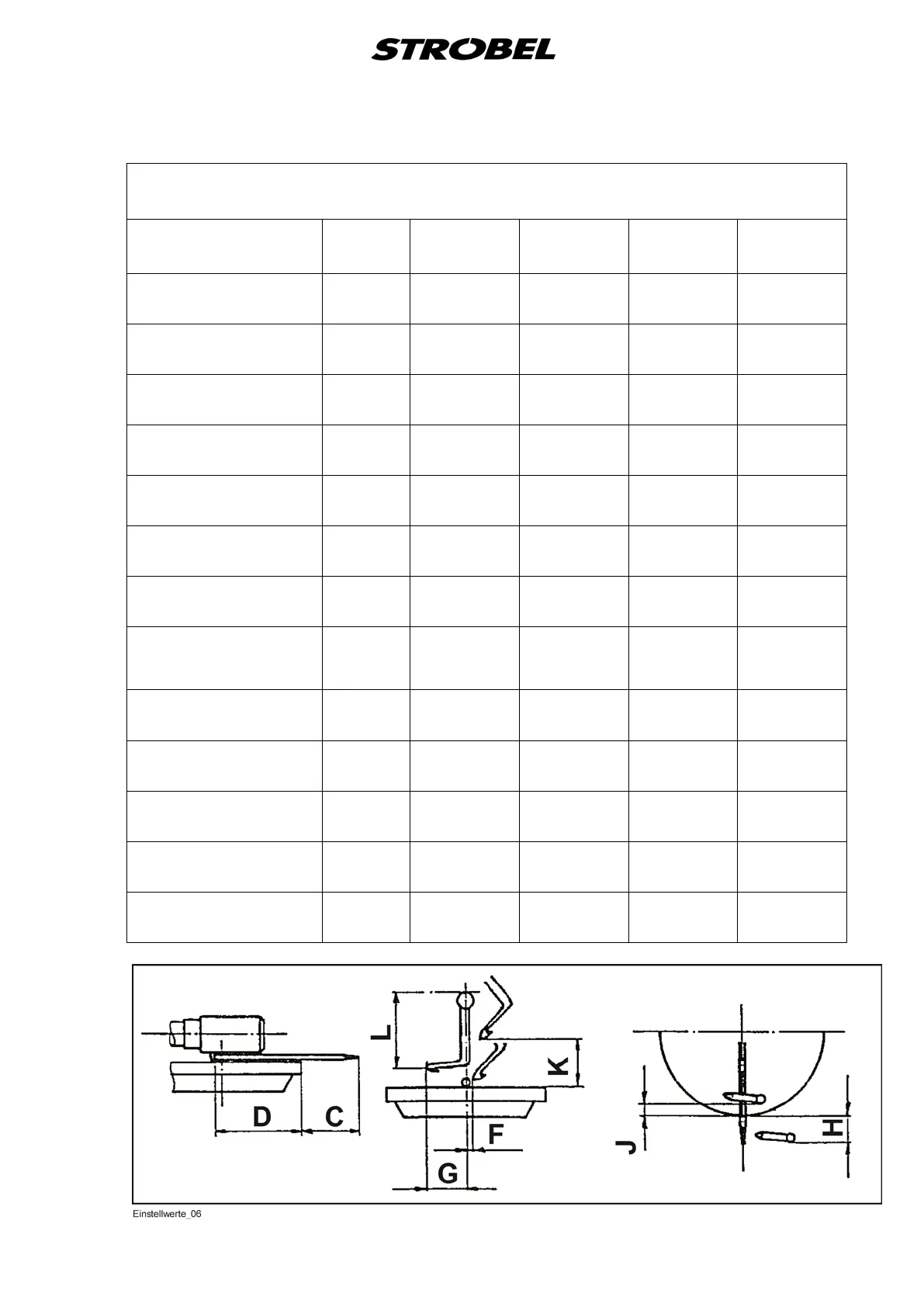

Setting data for Two Thread Overseaming machines
Class Dim. 142-30 142-40
Needle type
1738 1738
Needle size
55 - 100 55
Stitch length
A
2.3 – 5.3 1-4
Stroke of loop
B
4.2 4.5
Needle point front
measured from cup edge
C
18.8 17
Needle stop at needle bar
until cup edge
D
19 21
Stroke of needle bar
eccentric
E
28 24
Looper movement to the
right from needle center to
looper point
F
2.8 5.9
Looper movement to the
left
G
8 6.8
Looper front position
measured from cup edge
H
11.5 9.7
Looper rear position
J
1 1.6
Looper movement
K
8.2 6.7
Looper height
inclusive shaft
L
28.36 31
