8 MA_560_A4_180619_en
2.4
Recommended rated speed 1600 min
-1

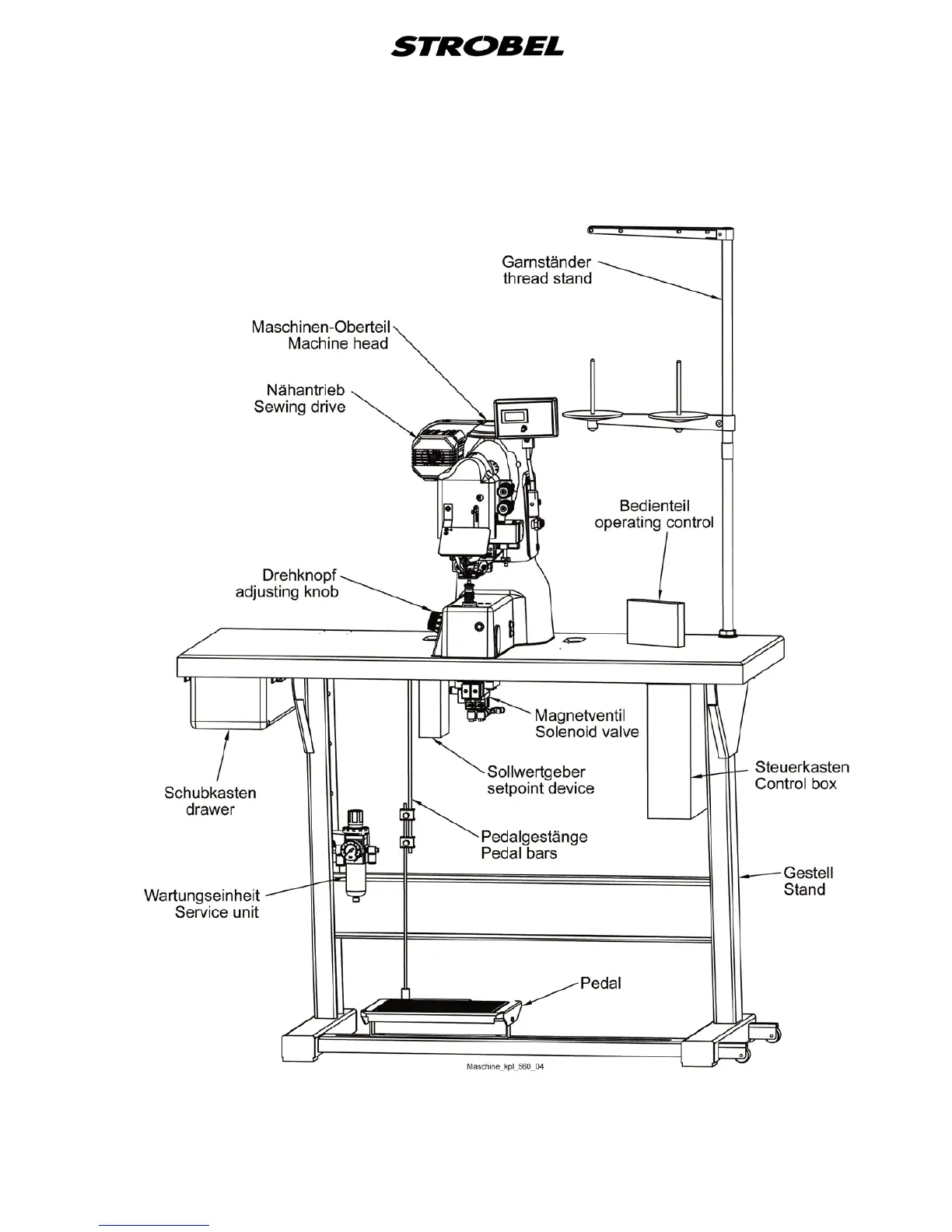

Technical Data
Motor power 400 W
Number of tack stitches 6, 8, 10, 12, 14
Toothed belt pulley/machine Z = 38
Toothed belt profile HDT 5M-9
Kind of stitch Single thread blindstitch spot tacking
Stitch type 101
Needle system GROZ-BECKERT 1717 VRUE
Needle size 90
Thread polyester continuous filament
Thread size 120/2
Air pressure 6 bar
Average air consumption
Cl. 560-11 290 l/h
Cl. 560-21 380 l/h
Required space (m) 0.6 x 1.06
Noise:
medium noise level at a speed of
n = 1200 min
-1
LpAm 72 dB (A)
Noise test according to DIN 45635-48-1 KL3
2.5
Theoretic needle radius 43.6 mm
Summary of setting instructions
Needle glide plate 43.59 -0.04 mm
Needle plate radius 43.67 +0.03 mm
Stitch width 0.7 – 2.0 mm
factory setting 1.2 mm
Loop stroke (left hand needle penetration) 2.5 mm
Needle stroke, Needle eye to looper point 1 ±0.2 mm
(left hand needle penetration)
Distance between looper point and needle 0.1 mm
Plunger lifts needle in its highest position 0.1 - 0.2 mm
Distance between looper and knife:
in basic position 2 mm
in trimming position 1 - 1.5 mm
