12 MA_560_A4_180619_en
3.2
Setting the needle lever
ATTENTION!
Switch off machine electrically!
3.2.1
Control cam (1) is set in a way that the needle lever being in its lowest position
(lower dead point) the radius corresponding to the needle penetration (right
hand needle penetration small radius, left hand needle penetration large
radius), stands exactly under roll (2). Only at the largest stitch width the roll
touches the cam at the right hand needle penetration.

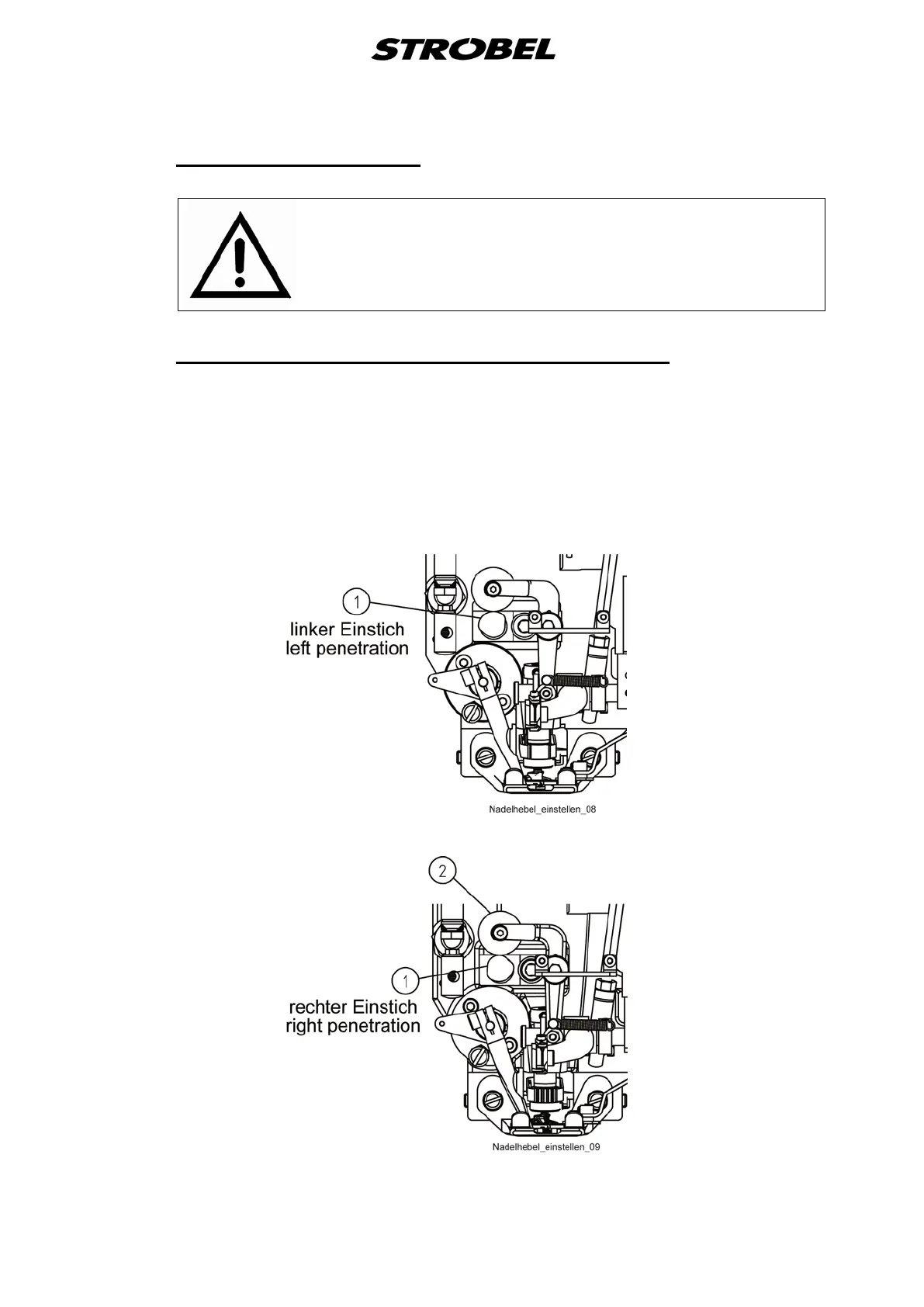

Lateral setting of needle lever (Fig. 3 and Fig. 4)
Attention: cam (1) is bored to gearwheel (3) (Fig. 5).
Fig. 3
Fig. 4
