Strobel 4 - Page 35

259.00.57

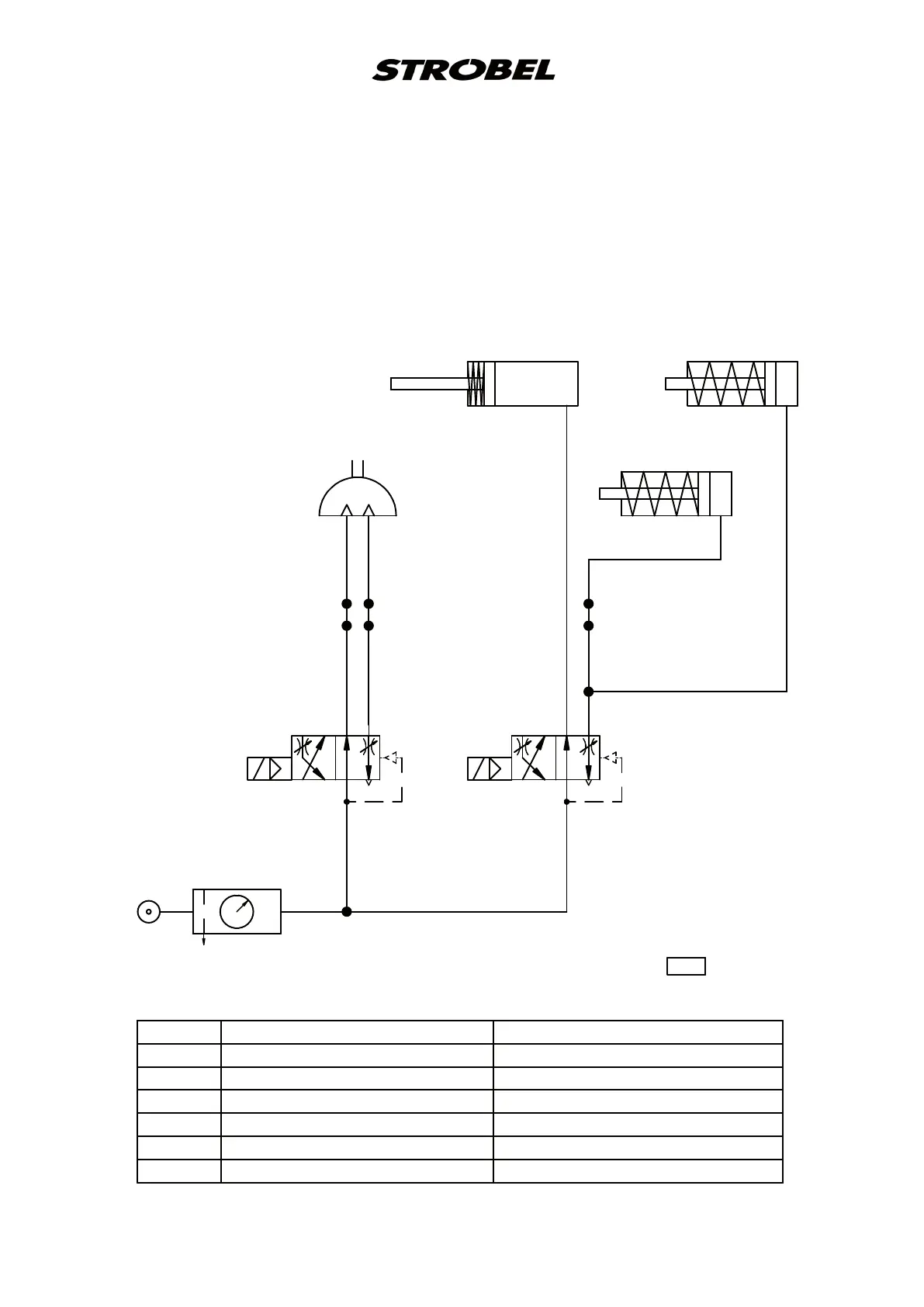

Pneumatischer Schaltplan Kl. 560 ab Ausf. 4
Pneumatic circuit diagram cl. 560 as of version 4
1 V 1
B
P R
A
0 Z 1 Wartungseinheit service unit
1 V 1 4/2-Magnetventil "Lüftung" 4/2-solenoid-way valve "lifting"
1 V 2 4/2-Magnetventil "Fadenzieher" 4/2-solenoid-way valve "thread wiper"
1 A 1 Zylinder "Fadenzieher" cylinder "thread wiper"
1 A 2 Zylinder "Fadenspannung" cylinder "thread tension"
1 A 3 Zylinder "Zusatz-Fadenspannung" cylinder "optional thread tension"
1 M 1 Schwenkantrieb "Lüftung" swivel drive "lifting"
1 M 1
A
B
B A
Am Maschinendeckel
(Buchse und Schläuche
kennzeichnen)
on the machine cover
(mark bush and tubes)
0 Z 1
6bar
10bar max
1 V 2
B
P R
A
1 A 3
1 A 1
1 A 2
4
195.0535
