PART 1
You can fix the antenna on the wall, on the balcony or on a metal pole.

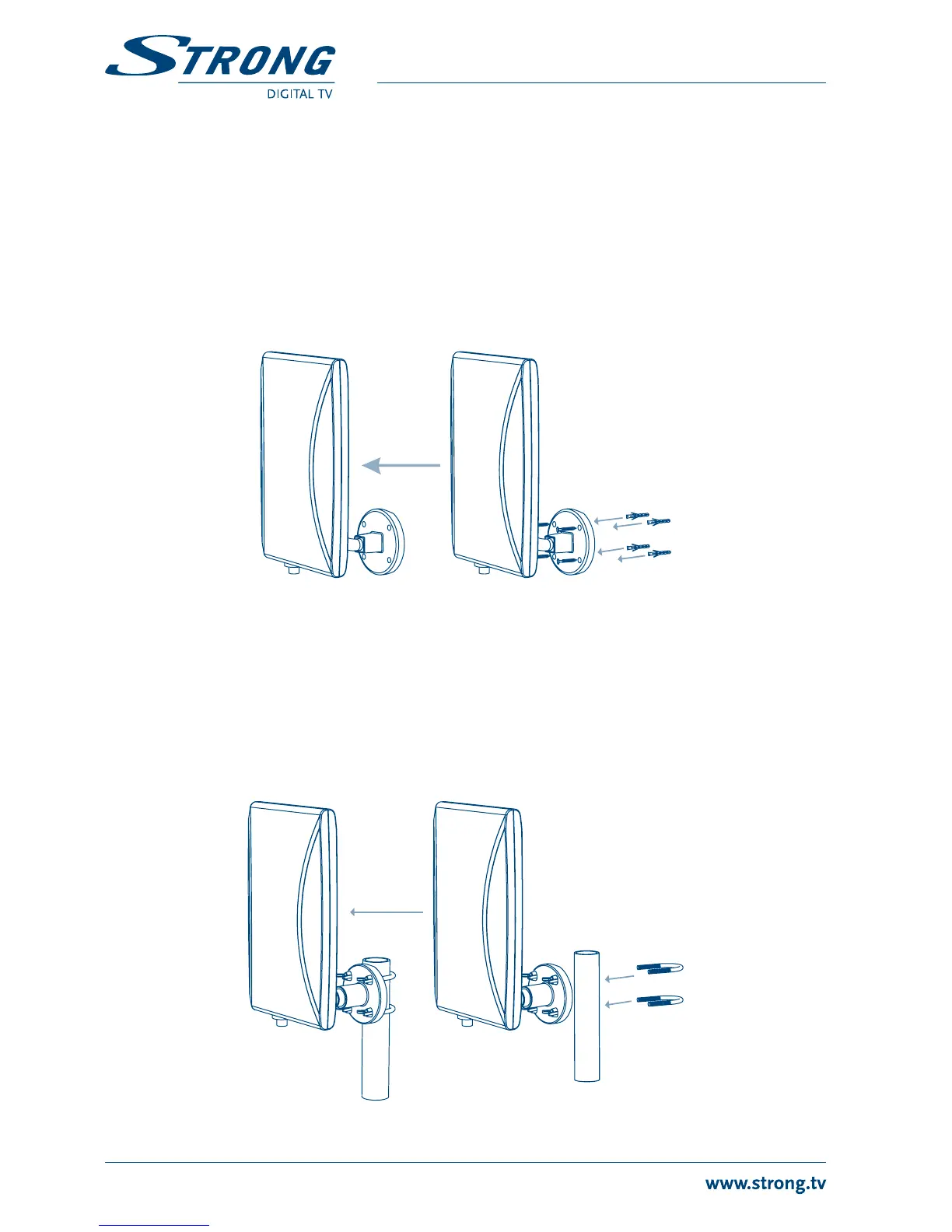

5.1 Installation on the wall
1. Take the multi directional base and hold it to the position on the wall
2. Mark the 4 holes with a pencil
3. Drill 4 holes with 5.8 mm diameter (make sure you are in a secured position and wear
sufficient protective clothing while drilling)
4. Insert the 4 plastic plugs into the drilled holes
5. Hold the multi directional base on its position
6. Use the 4 screws to fix the plastic mount on the wall
Fig. 6
5.2 Installation on a metal pole, or on the balcony
1. Take a metallic pole and make sure it is properly fixed and stable enough to carry the
antenna
2. Take the pole mounting kit
3. Hook the 2 U bolts on the pole (or on the metal parts of the balcony)
4. Take the multi-directional base and place it over the bolts
5. Use the 4 wing nuts to fix them
Fig. 7
