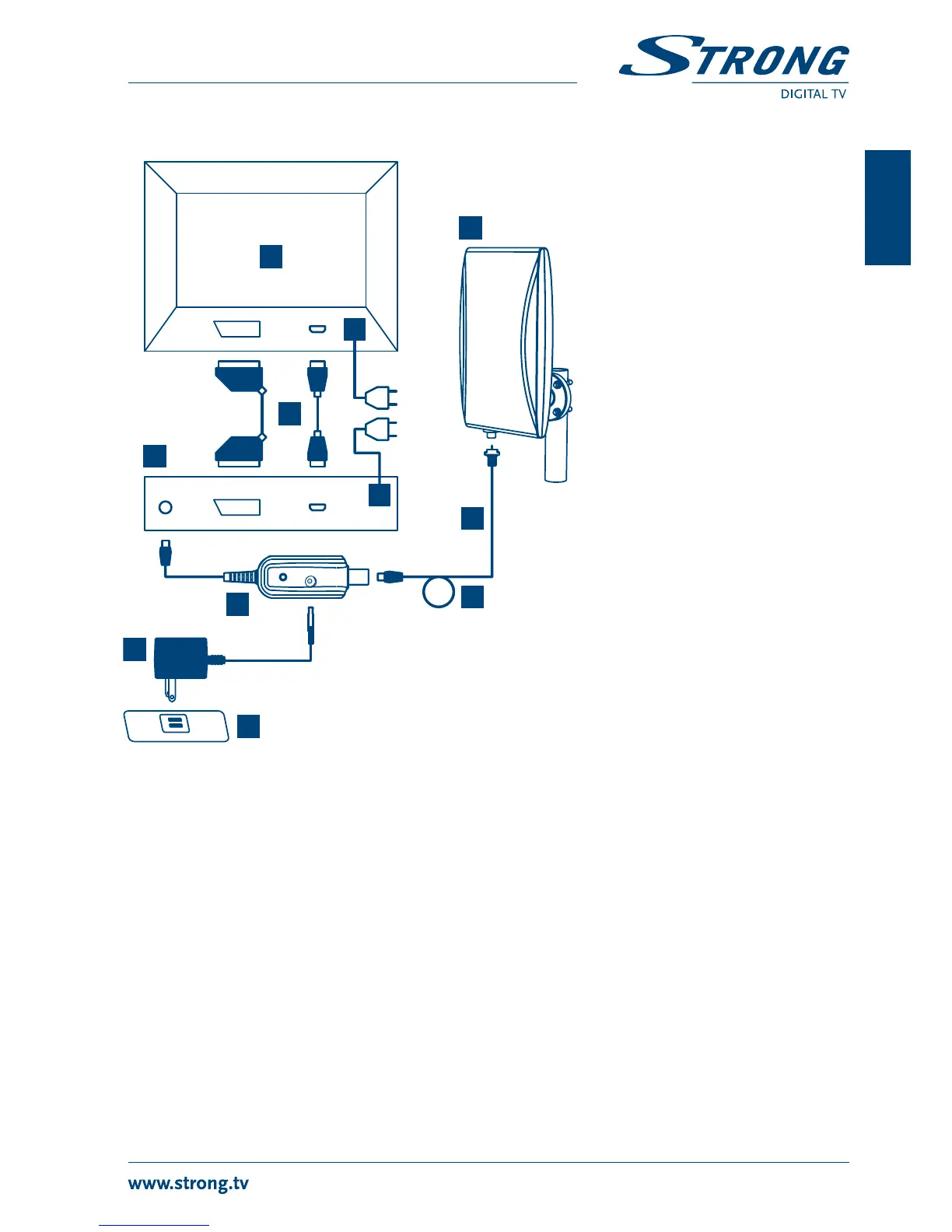

Fig. 5
1
3
2
4
5
6
7
8
9
1. Digital TV
2. STB
3. Active DVB-T/T2 Outdoor
Antenna.
4. HDMI or SCART cable
(optional)
5. Coaxial cable
6. Water-Drop Loop
(recommended)
7. Power injector
8. AC adaptor (12 V)
9. AC mains outlet
5.0 INSTALLATION OF THE ANTENNA
1. Turn on your TV set and turn on your Digital Terrestrial Receiver.
2. Press the "MENU" button on the remote control of your Digital Terrestrial Receiver. Select
the menu on your receiver that shows the signal level indicators. (Normally you can find the
signal meter in the Channel Scan field of the menu). Refer to the user manual of your Digital
Terrestrial Receiver.
3. Now optimise the signal strength by finding the best position for the antenna. Keeping the
antenna in your hand, try to reach the highest or best possible position. Slowly move the
antenna to different positions around the house, at the same time monitor the signal bars
in the menu, once the signal indicator shows the maximum signal, fix the antenna on that
position.
NOTE It is recommended NOT to place the antenna near to:
Devices that are strong source of radiation or interference such as DECT and GSM
telephones, transmitters, microwaves, Wi-Fi, etc.
Devices with high power consumption such as electrical heater, air conditioner, hairdryers,
etc.
Once the best position for the antenna has been found it can be mounted and fixed in that place.
