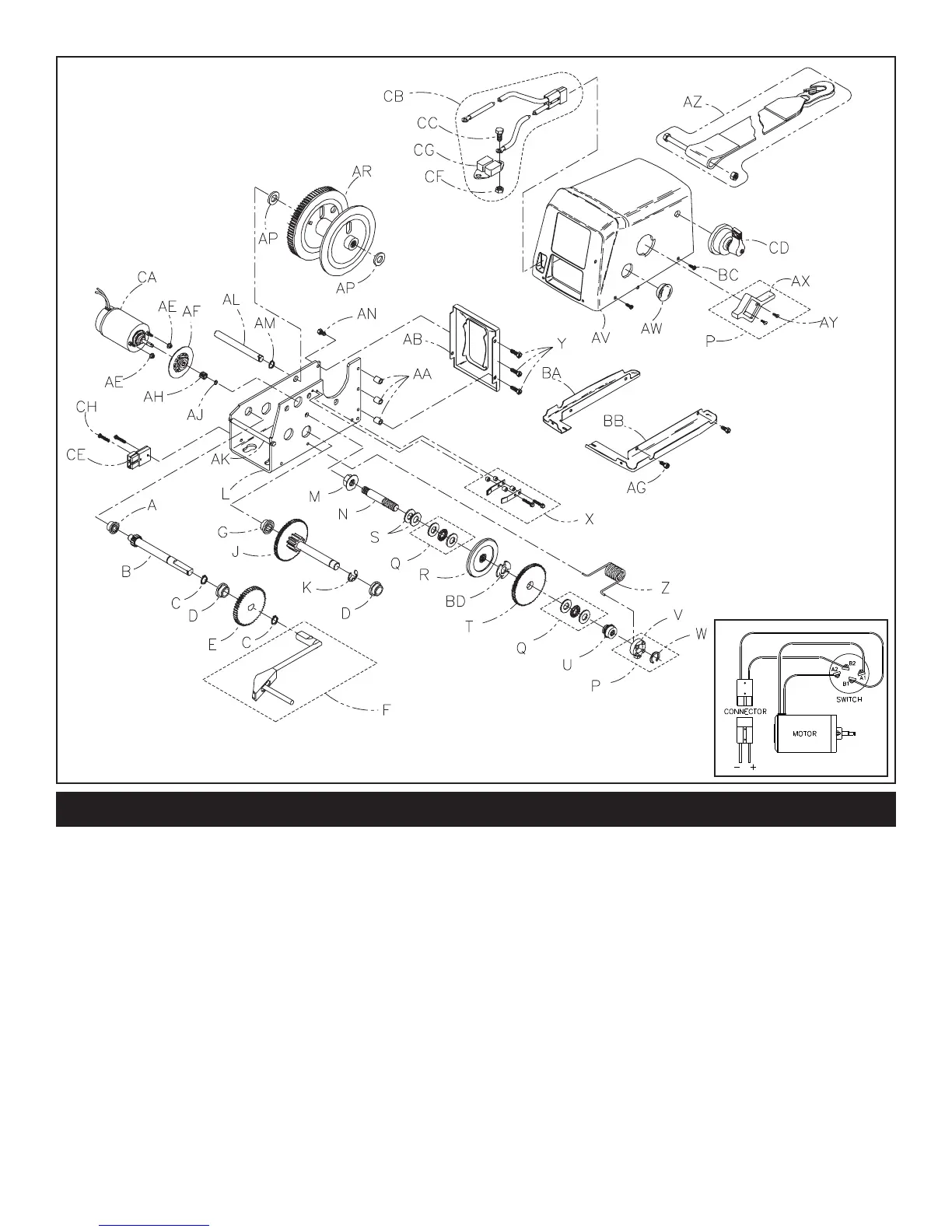

TW9000 PARTS LIST
Ref. Part Number
A Bearing Housing Assy. 304314
B Primary Drive Shaft Assy. 304304
C Retaining Ring (2) 205191
D Bushing (2) 204012
E 56T Gear 204703
F Aux. Handle Assy. 5703079
G Drive Shaft Bushing 304313
Housing Assy.
J Interm. Drive Shaft Assy. 304814
K “E” Ring 205116
L Base 404932
M Nut, 7/16-20 Locknut 205192
N Clutch Stud 404517
P Clutch Handle Replacement Kit 5703178
(Includes Items V, W, AX & AY)
Q Thrust Bearing Replacement Kit 5703194
(Includes Item W, O-Ring)
R Clutch Gear Assy. 304305
S Washer (2) 204360
T 84T Gear Assy. 304311
U Clutch Handle Nut 404518
V Clutch Spring Keeper 204721
W “O”-Ring 204770
X Brake Spring Replacement Kit 5703160
Ref. Part Number
Y Screw, 1/4-20x7/8" (3) 205242
Z Clutch Spring 204711
AA Spacer (3) 404513
AB Front Plate 404495
AE Nut, 10-32 Locknut (2) 205193
AF Brake Disc Assy. 304422
AG Screw, 1/4-20x3/8" (4) 205337
AH 12T Pinion Gear 404522
AJ “E” Ring 205135
AK Base Spacer 404510
AL Reel Shaft 404514
AM Retaining Ring 204468
AN Screw, 1/4x20x1/2" (2) 205189
AP Washer (2) 205109
AR Reel Assy. 304815
AV Cover Assy. 304748
AW Cover Plug 204713
AX Clutch Handle 204712
AY Screw – #4x1/2 205196
AZ Strap (2" x 20') 5242516
BA Base Shroud – LF 404866
BB Base Shroud – RT 404865
BC Screw (6) 205086
BD Finger Spring Washer 205200
MOTOR PARTS
CA Motor Assy 304742
CB Connector Ass’y 5241518
CC Screw – 1/4x20x3/8 205018
CD Switch 404888
CE Connector 206055
CF Nut – 1/4-20 206225
CG Circuit Breaker Assy 304025
CH Screw, 6-32x7/8" (2) 204959
WIRING DIAGRAM
To order replacement parts contact:
Dutton-Lainson Company
www:dlco.com
Tel: 800-569-6577
Fax: 402-460-4612
e-mail: DLsales@dutton-lainson.com
In Europe Contact:
Aqua-Marine International Ltd.
8 Flanders Park
Hedge End, Southampton
Hants, England SO30 2FZ
Tel: +44 (0) 1489-776050
Fax: +44 (0) 1489-776055
e-mail: sales@aqua-marineint.co.uk
