STRUC MUTA Maestral - 1. TECHNICAL SPECIFICATIONS; 2. DESCRIPTION OF FUNCTIONS

1. TECHNICAL SPECIFICATIONS
Engine (detailed information are enclosed
in engine manuals)
4-stroke gasoline or diesel, single cylinder,
air cooled
max power 6,5 kW, max turns 3600 RPM
Clutch dry multidisks (optionally conical)
Speeds (by engine 3600 RPM) 4/3(wheels 4.00x12)
4/3 (wheels 5.00x12)
- I forward and backward
- II forward and backward
- III forward and backward
- IV forward
1,6 km/h
2,4 km/h
5,3 km/h
14,4 km/h
1,8 km/h
3,5 km/h
5,9 km/h
16,1 km/h
Turns of output shaft independent 943 RPM – max
Steering handlebar
rotateable for 180°, handles height
adjustable
Wheels 4.00x12 (optionally 5.00x12)
Clutch safety switch engine stop by loosing of steering lever
Blockade of activating rotary tiller by
backward gear
prevents activating backward gear and rotor
simultaneously
Brakes drum brakes (for left and right wheel
separated –parking position)
Weight cca 95 kg gasoline, 115 kg diesel

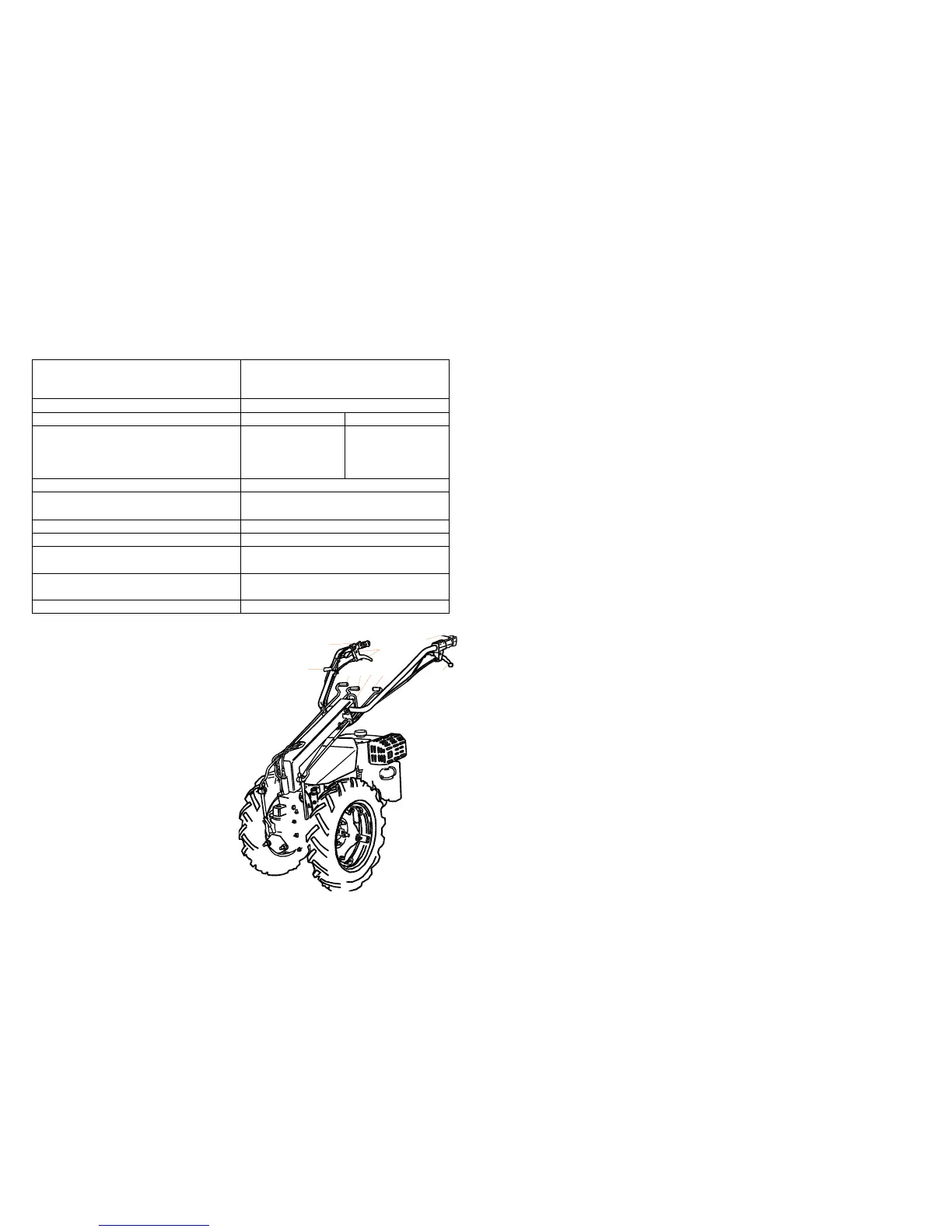

2. DESCRIPTION OF FUNCTIONS
1. gas lever
2. brake lever (right and left wheel)
3. clutch lever
4. safety switch lever
5. lever for activating the PTO
6. lever for activating forward
or backward gear
7. lever for handlebar adjustment
8. gear lever
9. differential lock lever
-19-
1
2
3
4
5
6
7
8
9
-
2
-
