Before beginning the actual wiring, read carefully the circuit and wiring information
provided with the microphone you select. Use the minimum heat required in soldering
the connections. Keep the exposed wire lengths to a minimum to avoid shorting when
the microphone plug is reassembled.
To wire the microphone cable to the plug provided, proceed as follows:
1. Remove the retaining screw.
2. Unscrew the housing from the pin receptacle body.
3. Loosen the two cable clamp retainer screws.

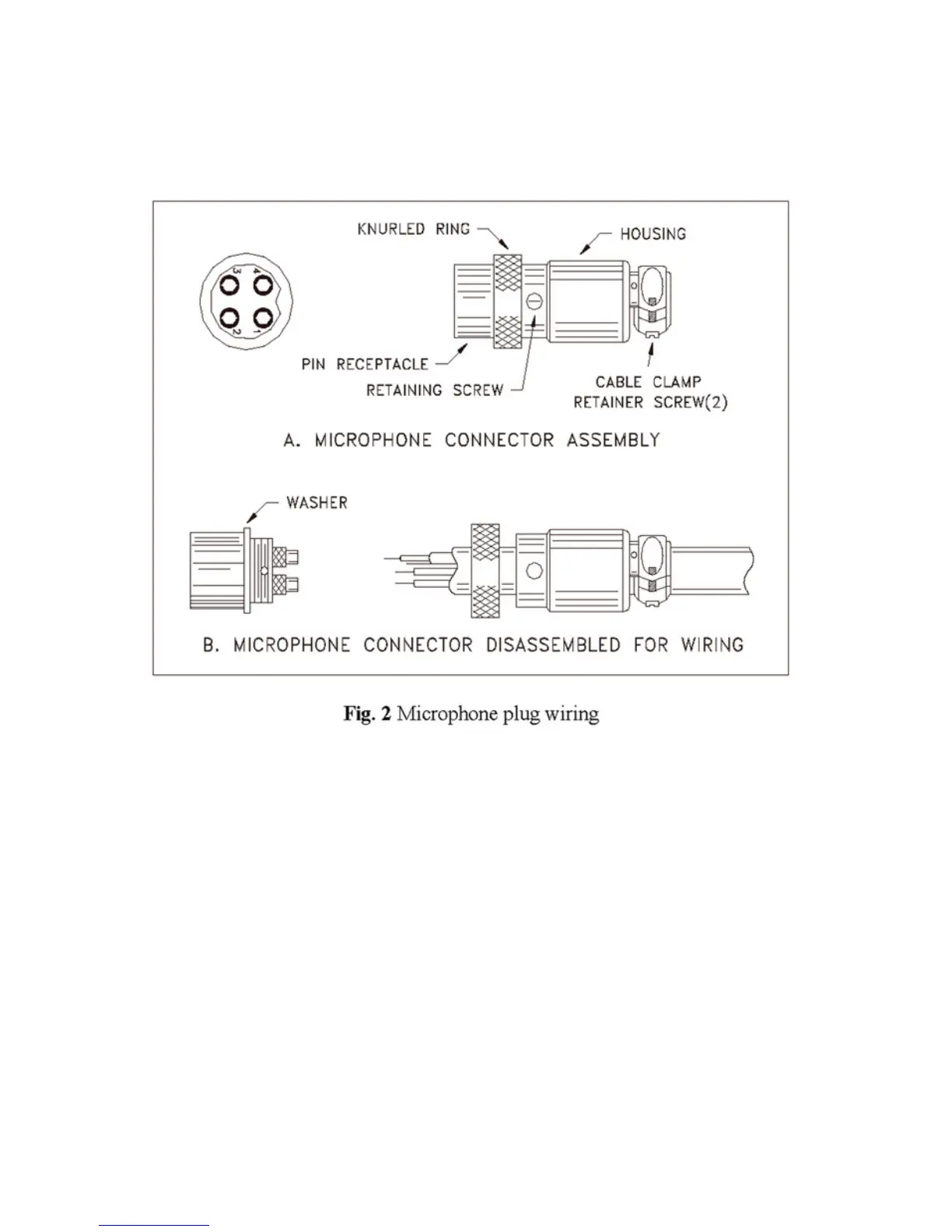

4. Feed the microphone cable through the housing, knurled ring and washer as
shown Figure 2.
