The received signal level can be adjusted by Control unit with
appropriate LED confirmation.
20K-mode activated by Control unit is used for revealed target
identification. This auxiliary mode allows operator to evaluate probable
probing signal amplitude modulation.
DESIGN
NR-2000 Main unit consist of antenna module, probing signal
transmitter unit, two receivers, telescopic bar and control unit with LED
display (fig. 4). The unique ‘Bullpup’ design provides NR-2000
ergonomic advantages in any possible application.
1
2
3
4
5
6
7
8
9

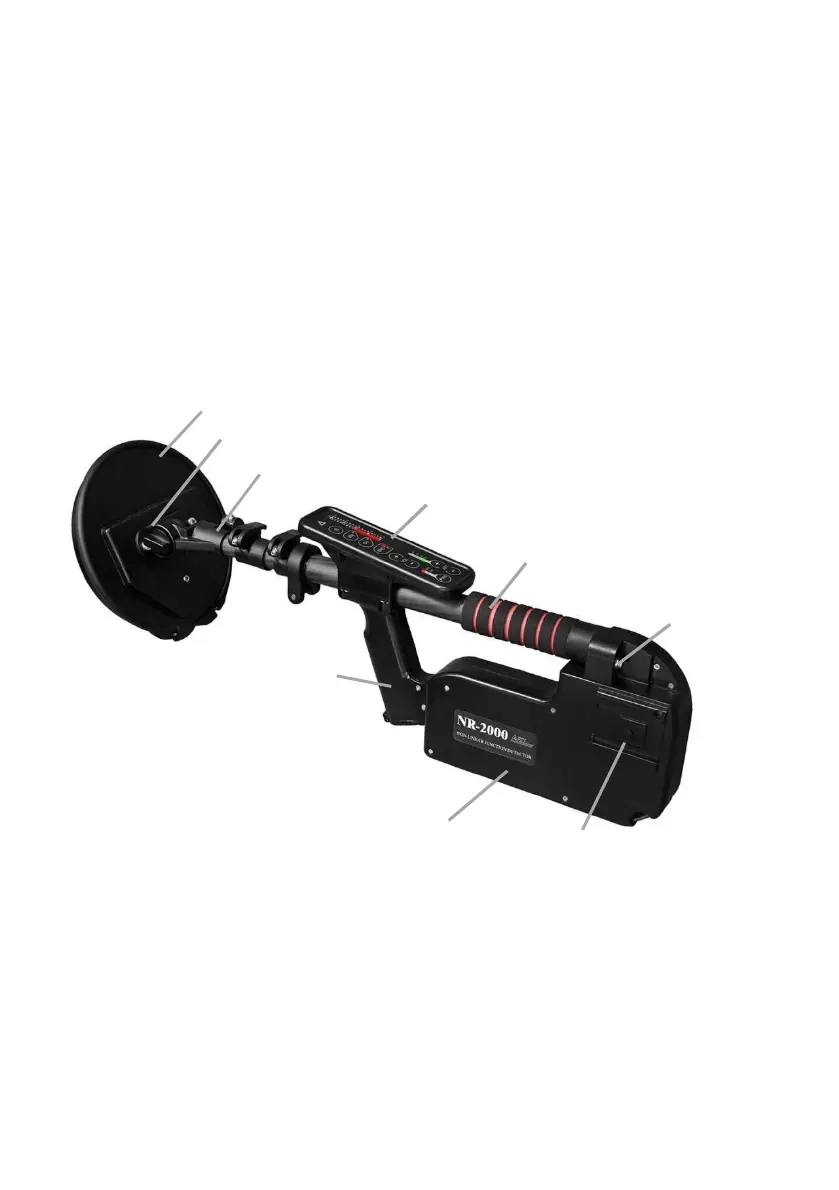

Fig.4 NR-2000 Main unit design
1-
Antenna module
2-
Antenna module joint
3- Telescopic bar with level-locks
4-
Control unit with display
5-
Handle
6-
Headphone jack
7-
Forearm support mount
8-
Transceiver
9- Battery compartment
