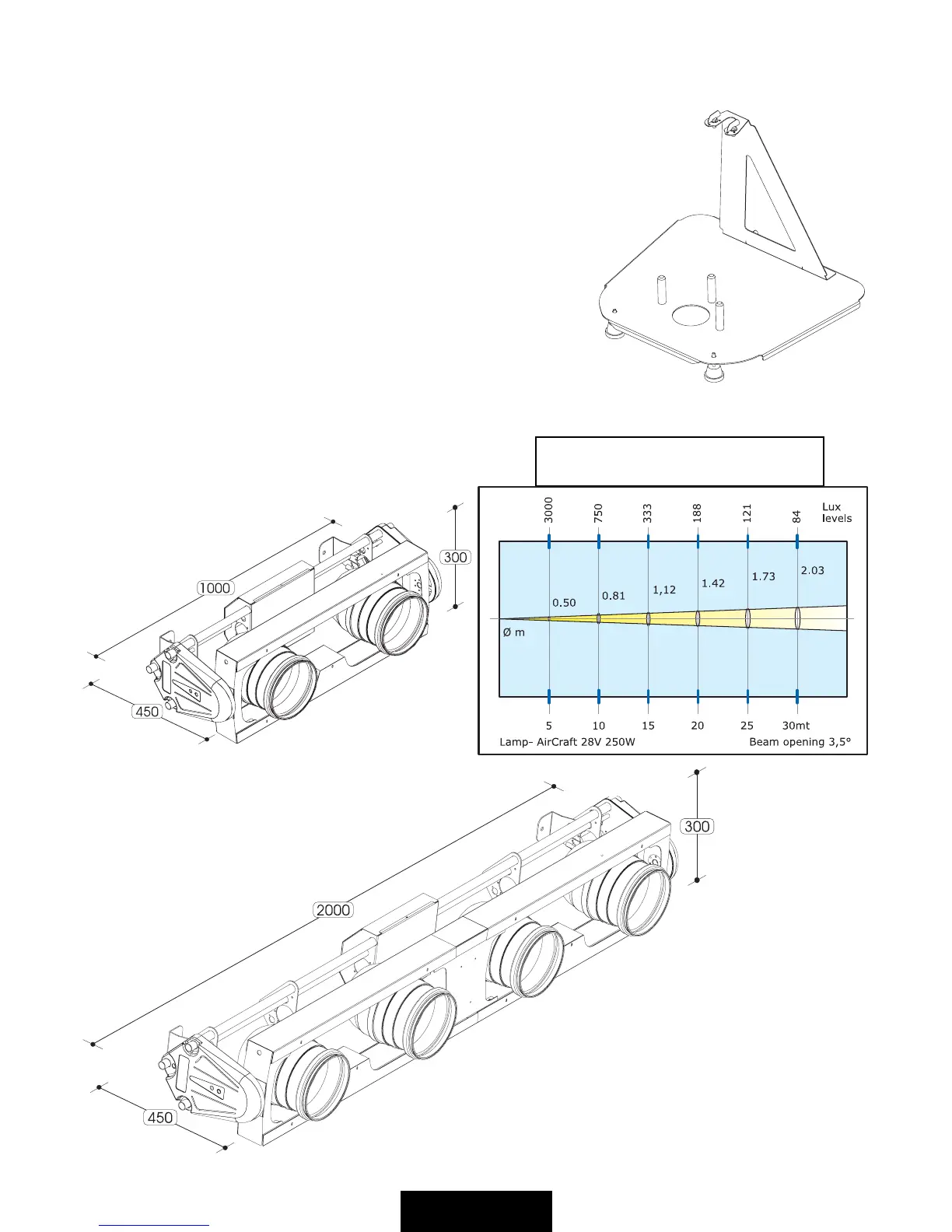

PHOTOMETRIC PARAMETERS
PARAMETRI FOTOMETRICI
TECHNICAL FEATURES / CARATTERISTICHE TECNICHE
• LAMP / LAMPADA
CS-2: 2 lamps ACL 28V 250W (4552) or ST-250W-28V
CS-4: 4 lamps ACL 28V 250W (4552) or ST-250W-28V
Average lamp life / Durata lampada: ACL=25 hours / ST-250-28 =200 hours
Color temperature / Temperatura colore: 3200°K
• MOVEMENTS / MOVIMENTO
Beam angle / apertura del raggio lampada: 3,5°
Electronic dimmer: 0÷100%
Stepper motors 8 or 16 bit: PAN 315° (2,0sec.), Global TILT 273° (3,0sec.)
Encoder close loop with auto-repositioning / autoriposizionamento tramite encoder
PAN and TILT lock mechanism / Blocco meccanico PAN e TILT
• INPUT SIGNAL / SEGNALE DI INGRESSO
DMX512 – RS485 opto-isolated
20 channels
• POWER SUPPLY / POTENZA INGRESSO
Rated voltage / Tensione nominale: 230V/50-60Hz on request: 117V/50-60Hz
Rated current / Corrente nominale: CS-2: 230V= 2,5A - CS-4: 230V= 4,7A
Rated power / Potenza nominale: CS-2: 230V= 540W - CS-4: 230V= 1050W
• DIMENSIONS / DIMENSIONI ( WxDxH) / (LxPxH)
CS-2: mm 1000X300X450 - CS-4: mm 2000X300X450
• WEIGHT / PESO
CS-2: Kg 18,0 - CS-4: Kg 31,0
... 3 ...
Art. CS2/CS4 BASE (optional): for vertical installation
