STUDIO DUE Studio LED 600 - Page 10

10
DMX LISTING 6Ch or 12Ch / LISTA CANALI DMX 12Ch o 6Ch
The fixture can work in 12 channels or 6 channels mode. See below the channels mode.
L’apparecchio può funzionare in modalità 12 canali o 6 canali. Vedere di seguito le modalità.
12 Channels Mode
ch1 = red
ch2 = green
ch3 = blue
ch4 = amber
ch5 = white
ch6 = dimmer
ch7 = strobe
ch8 = led fade speed
ch9 = rainbow
ch10 = white balanced
ch11 = zoom speed
ch12 = zoom

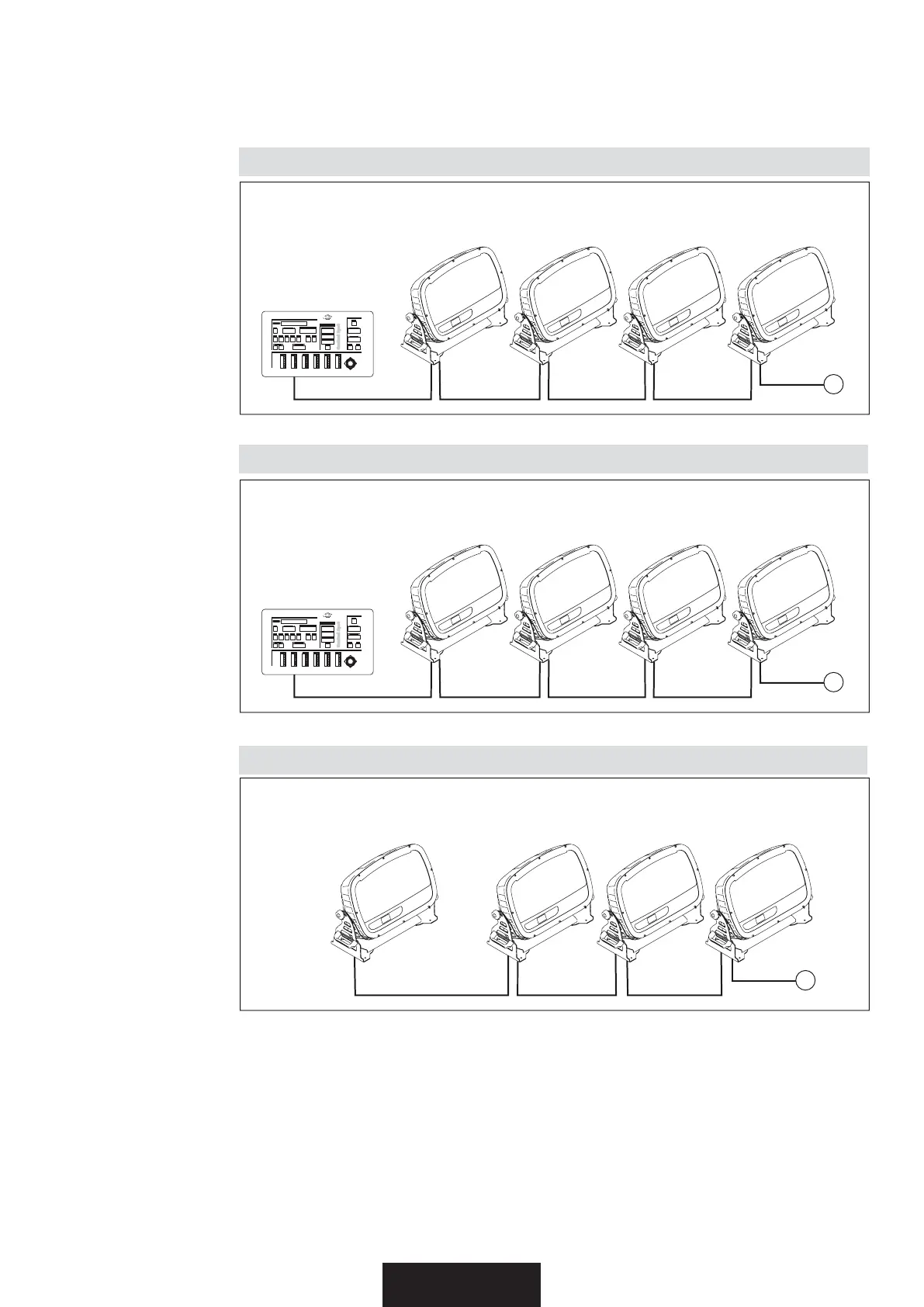

12 channels mode fixtures connection
MASTER/SLAVE fixtures connection
6 Channels Mode
ch1 = red
ch2 = green
ch3 = blue
ch4 = amber
ch5 = white
ch6 = zoom
6 channels mode fixtures connection
Control Spot
Studio Due
R
CHANNEL 8/ 10 CHANNEL 7/ 9 CHANNEL 4CHANNEL 3CHANNEL 2CHANNEL 1
STANDBY
PROGRAM
FADING
AUTO
MUSIC
MANUALSTEPS
STEPTIME FADING
789
456
123
0
SPOT MORE ALL NONE
TILTPANCOPYCLEARCOPYDELETEINSERT
SELECT SPOTS SPOTS SPOTS
INVERTINVERTPROGRAMPROGRAMSTEPSTEPSTEP
ENTEREXIT
PROGRAMMING
SPOTS FUNCTIONS
PROGRAMS SPOTS STEPS
SELECT
PLAY
Control Spot
Studio Due
R
CHANNEL 8/ 10 CHANNEL 7/ 9 CHANNEL 4CHANNEL 3CHANNEL 2CHANNEL 1
STANDBY
PROGRAM
FADING
AUTO
MUSIC
MANUALSTEPS
STEPTIME FADING
789
456
123
0
SPOT MORE ALL NONE
TILTPANCOPYCLEARCOPYDELETEINSERT
SELECT SPOTS SPOTS SPOTS
INVERTINVERTPROGRAMPROGRAMSTEPSTEPSTEP
ENTEREXIT
PROGRAMMING
SPOTS FUNCTIONS
PROGRAMS SPOTS STEPS
SELECT
PLAY
DMX controller
DMX controller
Spot-1
Spot-1
Spot-1
Set-up = MASTER Set-up = SLAVE Set-up = SLAVE Set-up = SLAVE
Spot-2 Spot-3 Spot-4
Address
set-up 12ch = C001
Address
set-up 6ch = C001
Address
set-up 12ch = C013
Address
set-up 6ch = C007
Address
set-up 12ch = C025
Address
set-up 6ch = C013
Address
set-up 12ch = C037
Address
set-up 6ch = C019
Spot-2
Spot-2
Spot-3
Spot-3
Spot-4
Spot-4
TL
TL
TL
