STUDIO DUE Studio LED 600 - Page 8

8

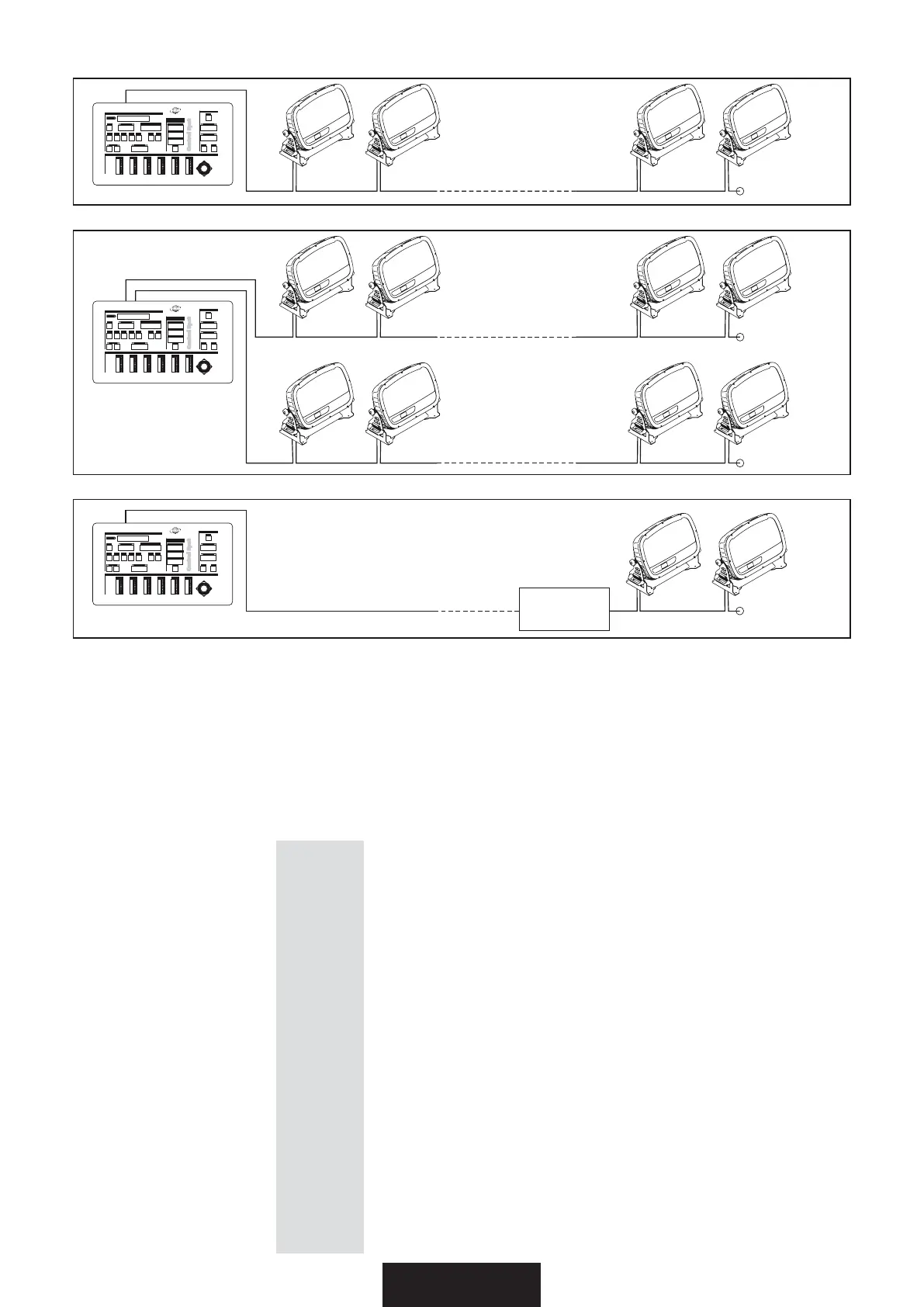

EXAMPLE OF CONNECTION DMX CONTROLLER-SPOT / ESEMPIO DI COLLEGAMENTO CENTRALINA - FARI
CONTROL PANEL
On the control panel you can find, besides the display, the led and the buttons to use to set the spot.
Il pannello dei comandi per il Setup è composto da 4 tasti, un display e un led di controllo.
DMX LED
• “DMX” led -------------------- flashing / lampeggiante: DMX input present / presenza del segnale DMX
off / spento: no DMX input / segnale DMX assente
BUTTONS
• “ENTER”, “ESC”, “UP”, “DOWN” buttons. Through this button is possible to set-up and control the fixture:
Tramite questi bottoni è possibile fare il set-up ed il controllo del faro:
- Address ---> Enter DMX Start Address
- Auto ---> Mode ---> DMX, Slave, Pr 1….Prn
---> Speed ---> -400%...+400%
- Display ---> Flip
---> Brightness ---> 1...8
---> Auto Shut ---> ON/OFF
---> Auto Dim LED ---> ON/OFF
- Focus ---> 0…255
- Channels ---> 12/6
- Wireless ---> Enable ---> ON/OFF
---> Pairing
---> Bridge ---> ON/OFF
- Flicker ---> F1/F2
- Service ---> Format
---> Auto Test
- Hours Display hours
Control Spot
Studio Due
R
CHANNEL 8/ 10 CHANNEL 7/ 9 CHANNEL 4CHANNEL 3CHANNEL 2CHANNEL 1
STAND BY
PROGRAM
FADING
AUTO
MUSIC
MANUAL STEPS
STEP TIME FADING
789
456
123
0
SPOT MORE ALL NONE
TILTPANCOPYCLEARCOPYDELETEINSERT
SELECT SPOTS SPOTS SPOTS
INVERTINVERTPROGRAMPROGRAMSTEPSTEPSTEP
ENTEREXIT
PROGRAMMING
SPOTS FUNCTIONS
PROGRAMS SPOTS STEPS
SELECT
PLAY
Control Spot
Studio Due
R
CHANNEL 8/ 10 CHANNEL 7/ 9 CHANNEL 4CHANNEL 3CHANNEL 2CHANNEL 1
STAND BY
PROGRAM
FADING
AUTO
MUSIC
MANUAL STEPS
STEP TIME FADING
789
456
123
0
SPOT MORE ALL NONE
TILTPANCOPYCLEARCOPYDELETEINSERT
SELECT SPOTS SPOTS SPOTS
INVERTINVERTPROGRAMPROGRAMSTEPSTEPSTEP
ENTEREXIT
PROGRAMMING
SPOTS FUNCTIONS
PROGRAMS SPOTS STEPS
SELECT
PLAY
EXAMPLE 2 / ESEMPIO 2
EXAMPLE 1 / ESEMPIO 1
Termination resistor
Terminale di linea
LAST Spot
Ultimo faro
LAST Spot
Ultimo faro
LAST Spot
Ultimo faro
DMX 1 output line
DMX 2 output line
Linea 1
Linea 2
DMX Controller / Centralina DMX
DMX Controller / Centralina DMX
Termination resistor
Terminale di linea
Termination resistor
Terminale di linea
Control Spot
Studio Due
R
CHANNEL 8/ 10 CHANNEL 7/ 9 CHANNEL 4CHANNEL 3CHANNEL 2CHANNEL 1
STAND BY
PROGRAM
FADING
AUTO
MUSIC
MANUAL STEPS
STEP TIME FADING
789
456
123
0
SPOT MORE ALL NONE
TILTPANCOPYCLEARCOPYDELETEINSERT
SELECT SPOTS SPOTS SPOTS
INVERTINVERTPROGRAMPROGRAMSTEPSTEPSTEP
ENTEREXIT
PROGRAMMING
SPOTS FUNCTIONS
PROGRAMS SPOTS STEPS
SELECT
PLAY
EXAMPLE 3 / ESEMPIO 3
Connection controller-spot to
1 DMX 512 OUTPUT over 150mts long
Collegamento centralina-spot ad una sola
LINEA DI USCITA DMX 512 lunga oltre 150mt.
SIGNAL AMPLIFIER
AMPLIFICATORE
DI SEGNALE
LAST Spot
Ultimo faro
LINE > 150mt. (with microphonic or audio cable)
LINEA > 150mt. (con cavo microfonico o audio)
DMX Controller / Centralina DMX
Termination resistor
Terminale di linea
