STLD46 ASSEMBLY INSTRUCTIONS
⅝” Phillips Screw
½” Hex Screw
½” Hex Screw
3.
5.
4.
6.

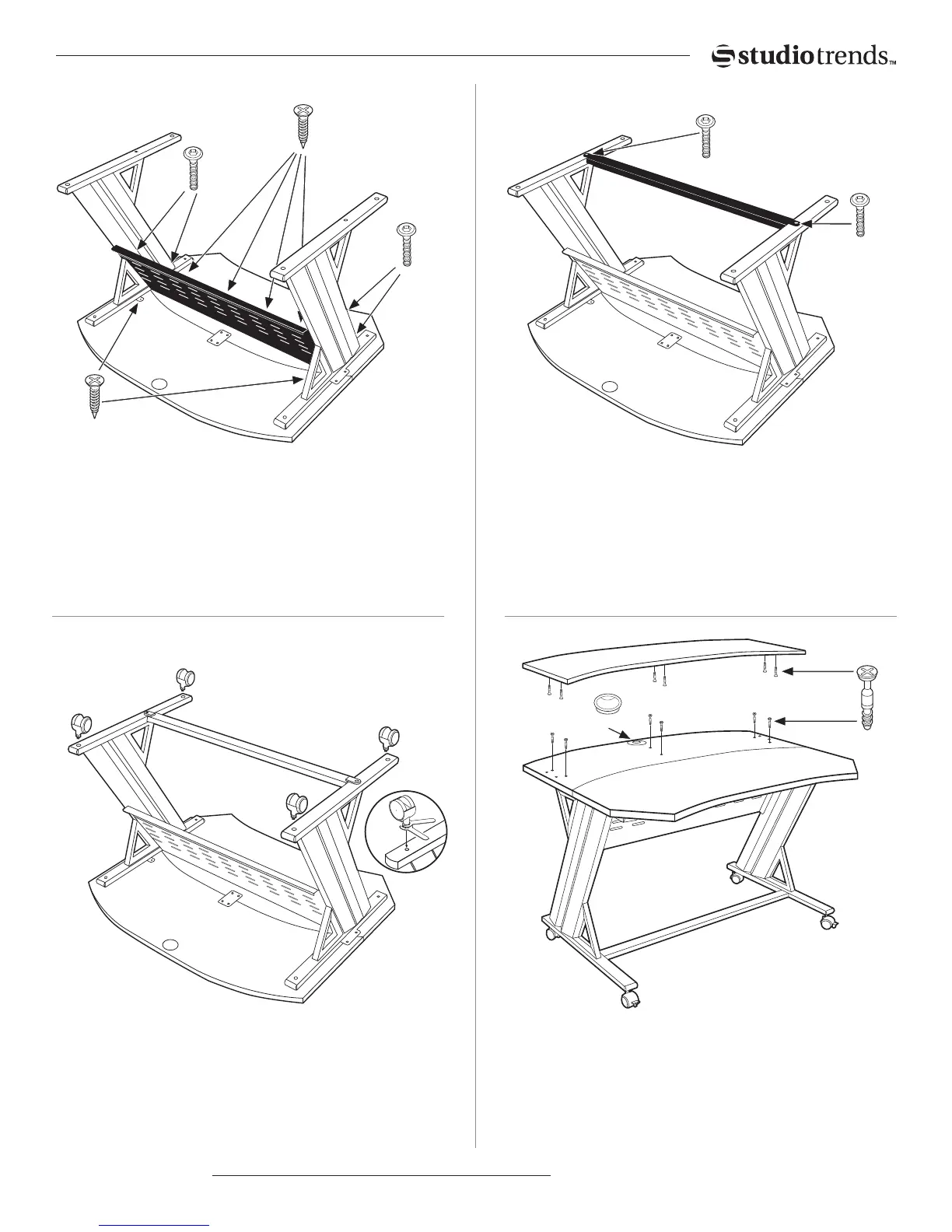

Attach the crossmember bracket to both legs using the
½” hex screws (2x). Check the alignment of the assembly,
adjust if necessary, then tighten screws fully.
With the included Open wrenches, install the casters (4x).
Position the brake-equipped casters on the “front” of the
desk. Please note that these wheels are height adjustable,
enabling you to match the height of the desk with other
furniture.
With the help of a friend, turn the desk up on its wheels.
Install the cable management port grommet. Then install
the cam locks (6x) into the desktop. Install the rest of the
cam lock screws (6x) into the bottom of the desk shelf.
Grommet
Cam Lock
Desk Shelf
www.studiotrendsdesign.com
½” Hex
Screw
3.
Attach the modesty panel to both legs using the ½” hex
screws (4x). Tighten fully. Then install the ⅝” Phillips
screws (2x), attaching the modesty panel to the desktop.
Then, using the remaining ⅝” Phillips screws (4x), attach
the legs to the desktop.
⅝” Phillips Screw
½” Hex
Screw
To Next Page
