The Synth Sound Bank is bases on a simplified Synthesis engine, with the following features:
The selection if various Waveform is made by selecting one of the Sounds of the Synth Bank; the
various waveforms shape is shown on the display when the Sound is selected and can vary from the
standard Sawtooth and Square Waves, to the Pulse with Modulation (a Pulse waveform with a
modulated with by a low frequency modulator) and FM or complex Synthesis waveforms.
The Synth Sounds (basic or complex) are controlled by the nine Sliders, each one assigned to
control a specific parameter, that allows to modify slightly or completely the starting selected

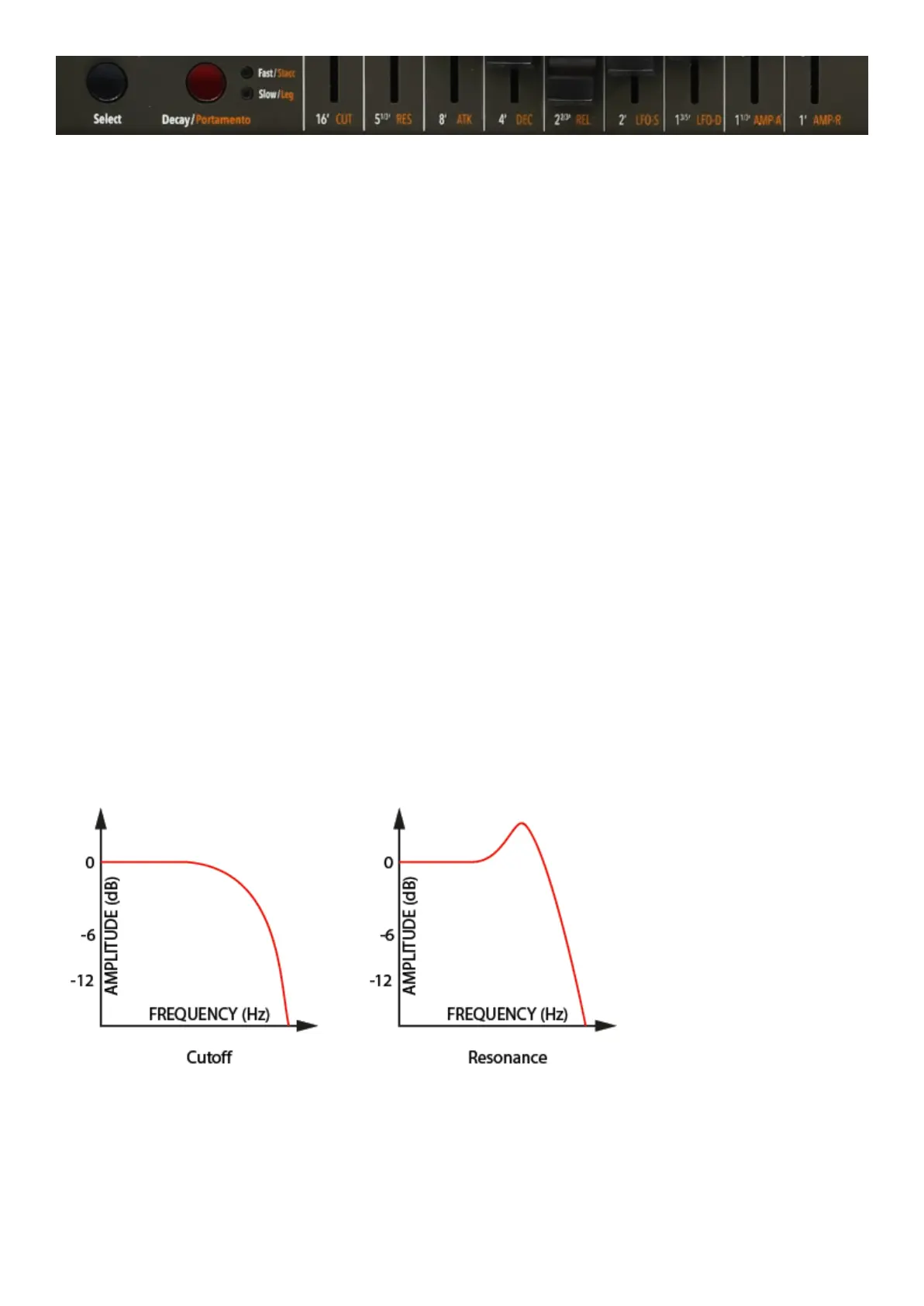

Controls the frequency for the 2 poles low pass filter, use lower values in the range o to give more
warm spectrum to the sound; at higher levels the sound becomes more brilliant, as the filter let
pass thru it all frequencies of the selected Waveform of the starting sound.
When the setting is raised to mid-hi values, the filter starts to emphasize the frequencies around
the Cutoff value; this feature can be used to create analog-style effects, as well as make a part of the
Sound spectrum emphasized by an accurate setting of the Resonance.
If set at values too close to the maximum, the Resonance could create a signal level gain and
consequent distortion possible problems of the overall sound; with hi levels of Resonance, the part
Volume (Upper or Lower) should be reduced proportionally, to avoid clippings or unwanted side-
Both Cutoff and Resonance parameters are enabled to control any other Sound of the instrument
