1
2
3
4
5
6
8
9
10
7
11
12

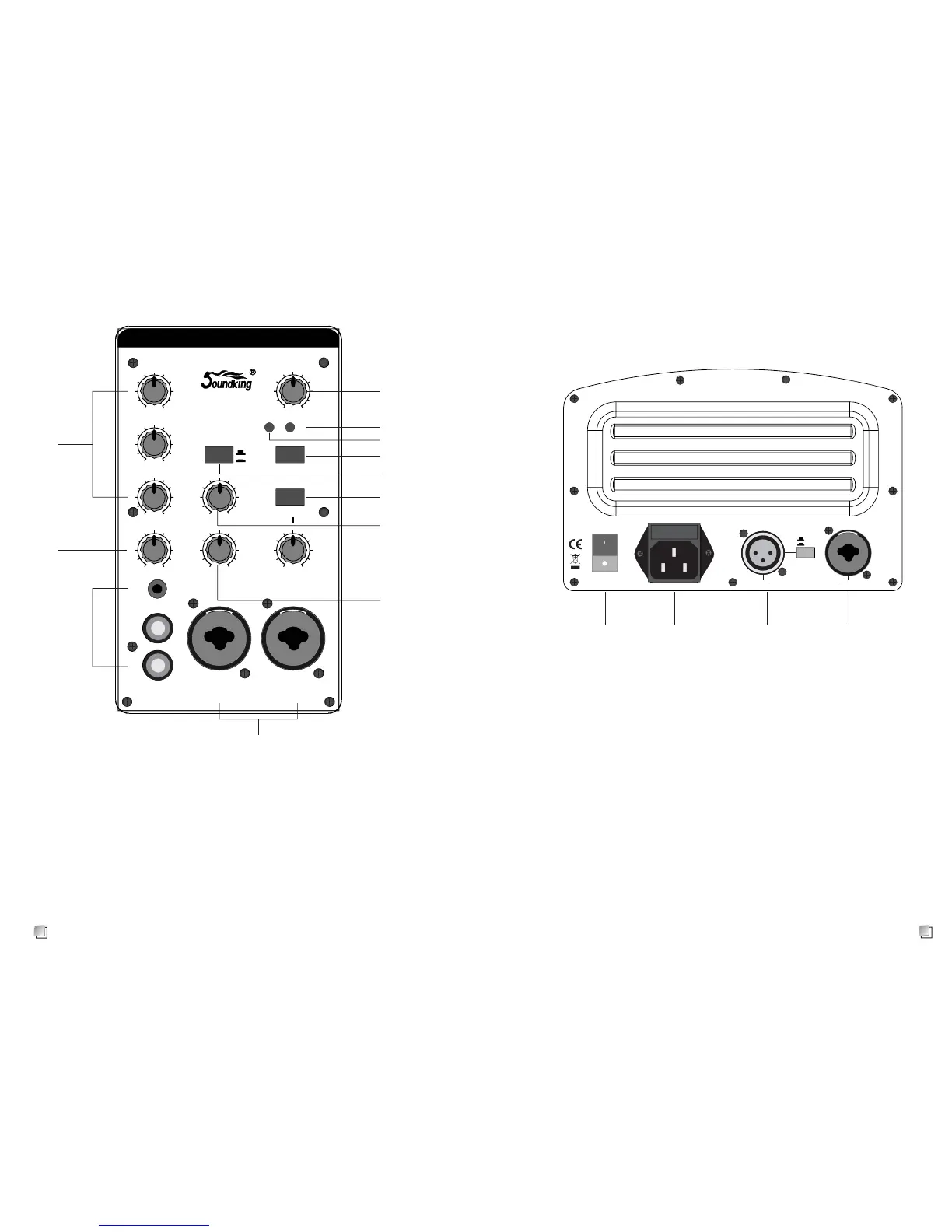

1.EQ Equalisation (tone) boosts or cuts, HI(treble)/MID/LO(bass) by +/- 15dB
2.LINE3 Level Control adjusts RCA PHONO or MP3 (3.5mm jack) AUX input signal level
3.AUX INPUT RCA PHONO or MP3 (3.5mm jack) input connector for CD,MP3 and other line level audio sources
4.MIC/LINE (CH1/CH2) XLR balanced / 6.3mm Jack unbalanced input connector for mic and line level audio
sources
5.LEVEL1&2 adjusts (MIC/LINE) input signal level
6.ECHO adjusts the amount of effect added to the output signal
7.MIC1/MIC2 switch : release the switch and CH1/CH2 have ECHO output. Press the switch and only CH2 has
8.INSTRUMENT press this switch to optimize the MIC/LINE1 input impedance for a guitar
9.PHANTOM provides phantom power (+48V) for condenser microphones
10.Phantom power LED
11.Power LED
12.MAIN LEVEL adjusts the master output volume
1. POWER Power switch to turn on/off the LIVESYS5
2. POWER SOCKET Connects to A.C. power with supplied power cord/mains lead (see safety instructions)
3. THRU Balanced XLR (male) connector to link to another unit (active speaker/mixer etc)
The THRU signal is mixed prior to the MAIN LEVEL control (12)
4. MAIN IN Balanced XLR (female) connector or 6.3mm (TRS jack) to connect a signal from another
unit (active speaker/mixer etc)
Front panel
