11INSTALLATIONHBASE STÛV16
2
7mm

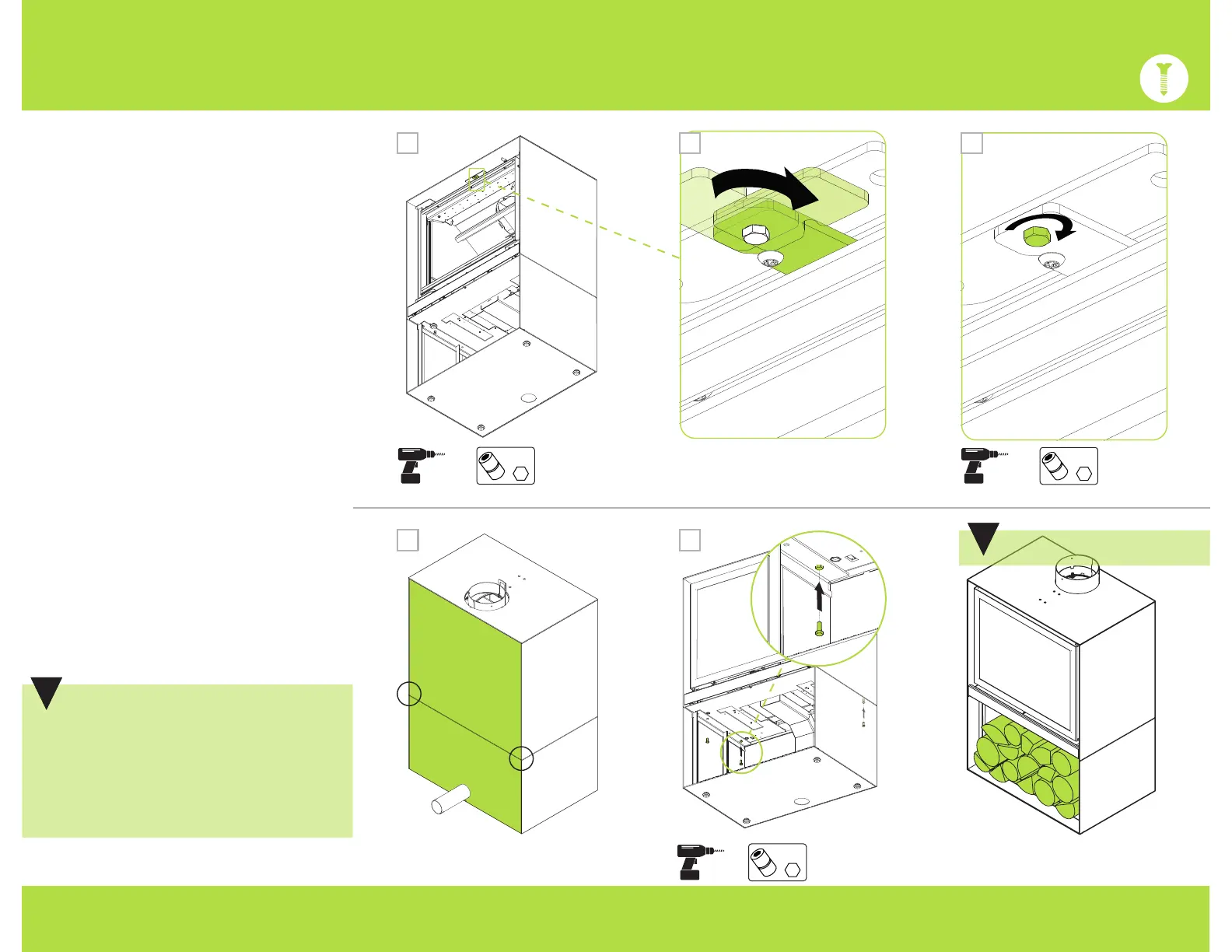

.4 POSITIONING THE CUBE SHELL
Step 27 Check the adjustment at the
back of the stove: the depth and then
laterally. Confirm the alignment at the
front.
Step 28 Tighten the four M6 bolts under
the base plate to solidify it.
Step 24 To secure the upper part of the
shell and the stove, loosen the hex-head
screw.
Step 25 Rotate the lock until it fits around
the button-head screw.
Step 26 Tighten the screw.
4
321
2827
262524
10mm
x4
7mm
CAUTION
In order to increase the safety of your
installation, we recommend limiting
the storage of logs to the interior area
of the H base. Do not store any highly
flammable material, such as paper and
fire starters.
!!
CAUTION
!!
