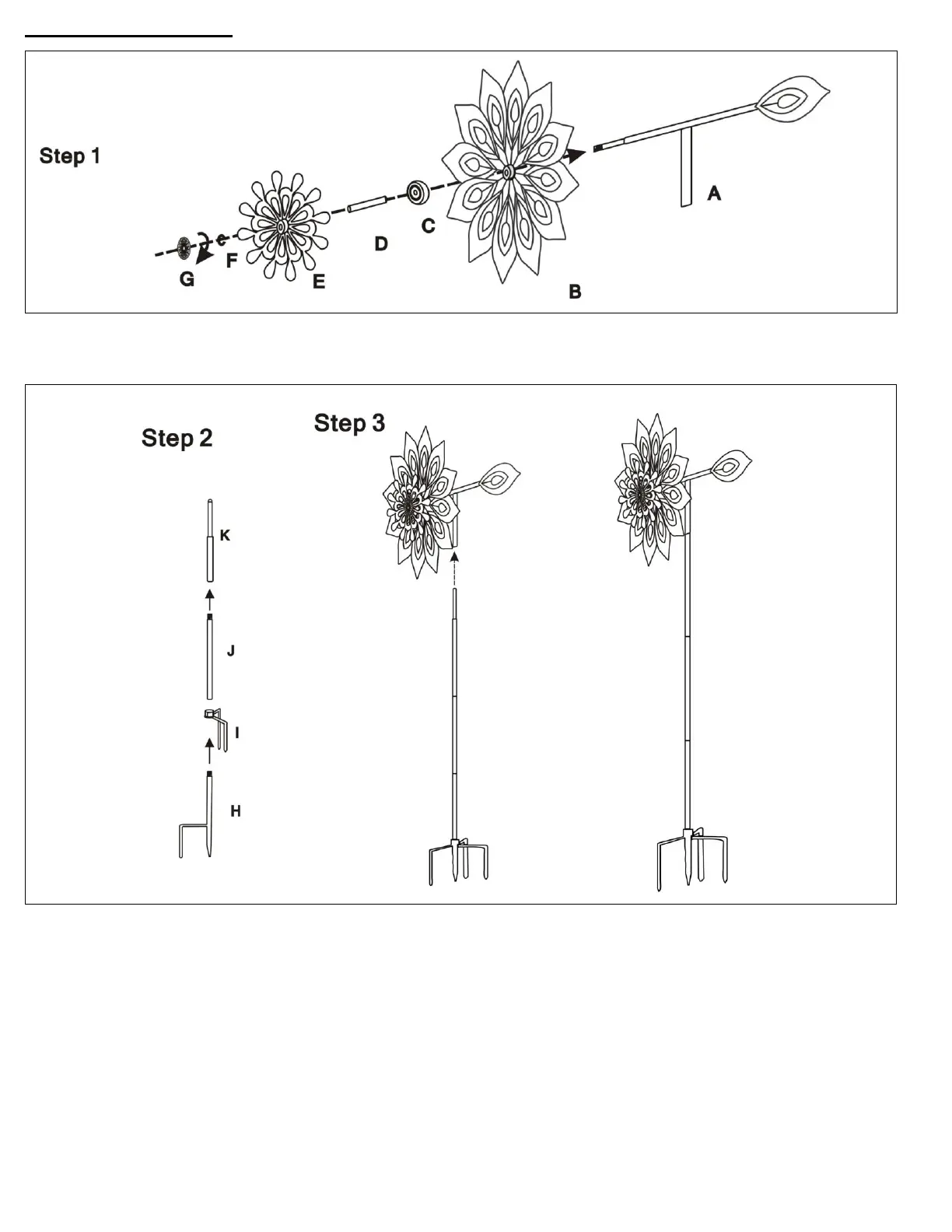

ASSEMBLY INSTRUCTIONS
Step 1: Assemble the Blades: Insert the threaded end of the T-Bar (A) through the middle hole of the Large Blade (B), then
apply the Washer (C), the Sleeve (D), the Small Blade (E), the Ring (F). Fasten the assembly by applying the Cap Nut (G).
Step 2: Assemble the Bars:
A. Thread the Stake Bar (H) through the ring on the Two-Prong Stake (I). Align the stake on the Stake Bar with the Notch
on the ring, creating a three-prong stake;
B. Connect the Middle Bar (J) with the Stake Bar (assembled with the Two-Prong Stake). Connect the Top Bar (K) with the
Bar Assembly.
Step 3: Connect the Bar Assembly in Step 2 with the Blade Assembly in Step 1 by inserting the top of the Top Bar (K) into the
end of the T-Bar (A)
Select location in an outdoor area for your wind catcher. Place foot on horizontal bar of Two-Prong stake (I) and hands
on Top Bar (K). Simultaneously, using hands and foot, gently push unit into ground.
