4. Recess Mount

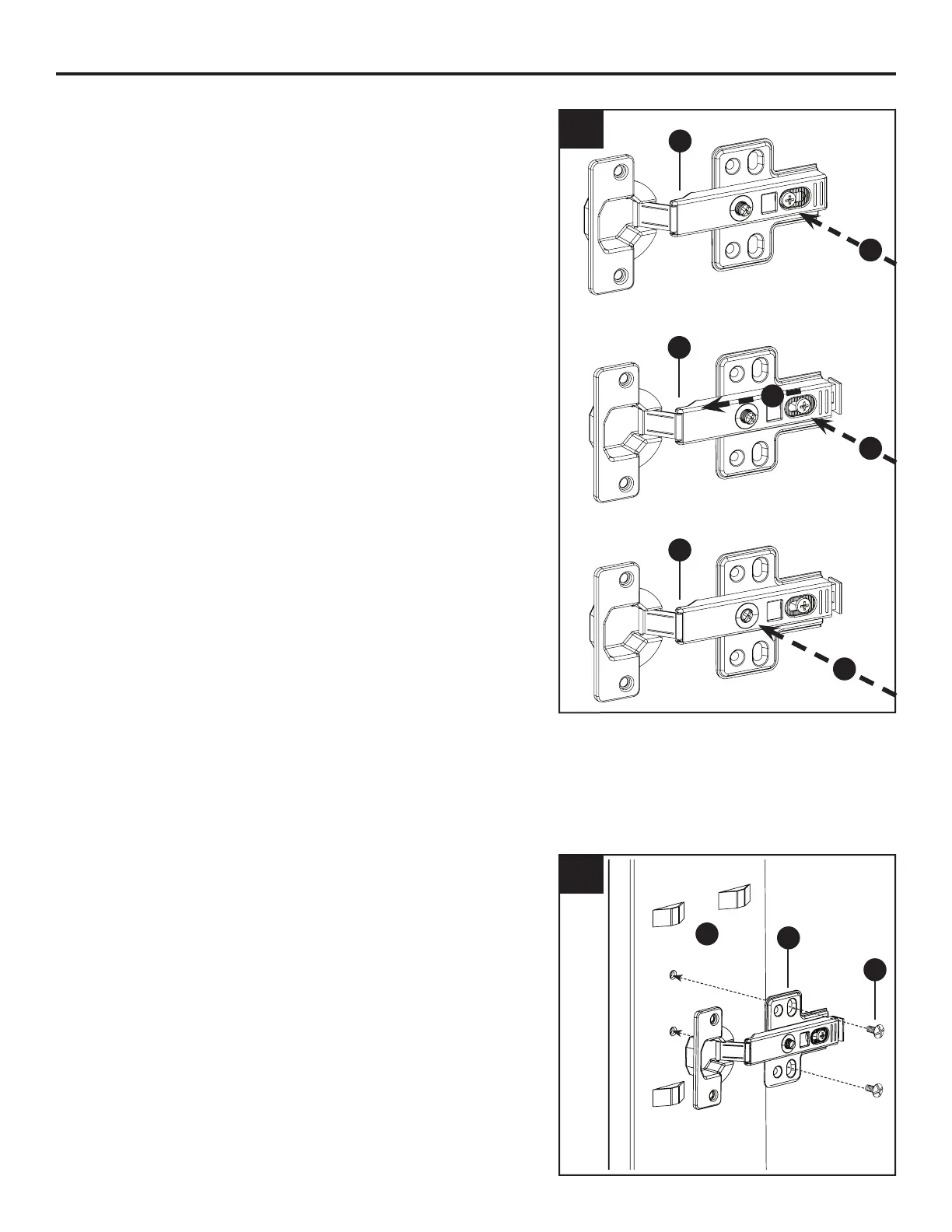

1. LOOSEN the horizontal adjustment (In and Out)
screw on hinge (AA).
2. Slide the hinge (AA) forward.
3. TIGHTEN the horizontal adjustment screw into
place with screw to the rear of the slot.
4. LOOSEN lateral adjustment (In and Out) screw until
screw resists.
4
1
2
3
4
AA
AA
AA
INSTALLATION INSTRUCTIONS
5. Recess Mount
Fasten hinges with mounting brackets (AA) to the
cabinet body (A) using mounting bracket screws (CC).
NOTE: Do not overtighten the mounting bracket
screws (CC).
5
CC
A
AA
