Sub-Zero 430 User Manual

Installation Notes
For framed and overlay models, you will be
adding a door panel for a custom look.
Overlay models also allow you to match
surrounding cabinetry hardware, and the
panel grille accepts a custom panel insert.
Complete installation specifications, including
panel sizes, can be found on our website,
subzero.com.
Unit dimensions may vary by ±
1
/ 8 ".
Specifications
Overall Width 30"
Overall Height 84"
Overall Depth 24"
Door Clearance 30
1
/8"
Wine Storage Capacity 147 bottles*
Opening Width 29
1
/2"
Opening Height 83
3
/4"
Opening Depth 24"
Electrical Requirements 115 V AC, 60 Hz
15 amp dedicated circuit
Shipping Weight Glass Door – 435 lbs
Glass Door/Stainless Steel – 445 lbs
Solid Door – 412 lbs
*750 ml bottles.
75
1
/2"
(1918)
7"
(178)
6"
(152)
29
1
/2"
(749)
ROUGH OPENING WIDTH
24"
(610)
ROUGH
OPENING
DEPTH
E
LOCATE ELECTRICAL
WITHIN SHADED AREA
ANTI-TIP BLOCK
FRONT VIEW
TOP VIEW
83
3
/4" (2127)
ROUGH OPENING
HEIGHT
TO FINISHED
FLOORING WITH
STANDARD
11" (279) GRILLE
83" (2108)
MIN HEIGHT
REQUIRED
(LEVELERS IN)

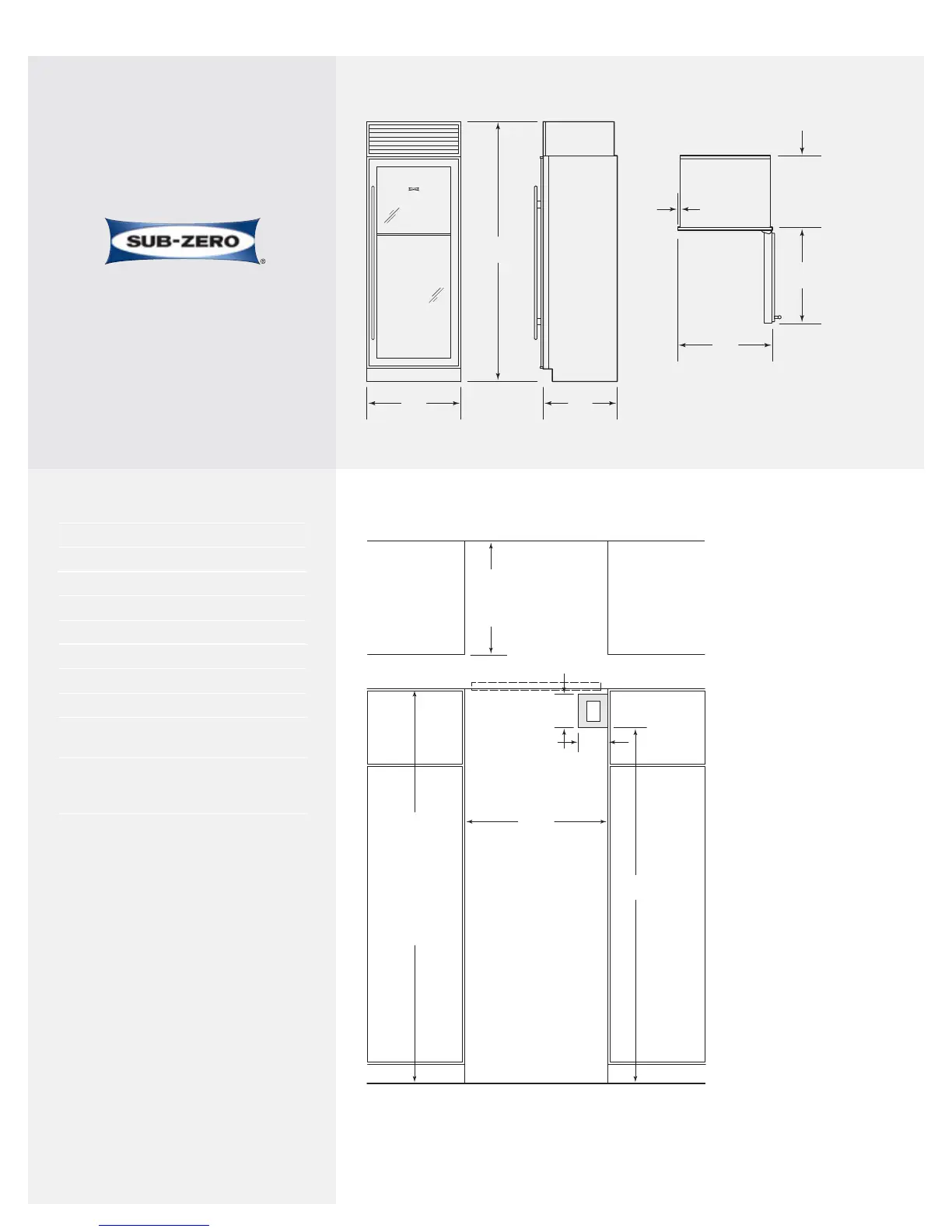

Installation Specifications
Overall Dimensions
Model 430
Wine Storage
30"
(762)
24"
(610)
84"
(2134)
30
1
/8"
(765)
30"
(762)
29
1
/4"
(743)
23
7
/8"
(606)
BEHIND
FRAME
3
/8" (10)
FRAME
EXTENSION
Dimensions in parentheses are in
millimeters unless otherwise specified.

Sub-Zero 430 Specifications

General

Brand	Sub-Zero
Model	430
Category	Wine Cooler
Language	English
