Sub-Zero ICBBI-36F Design Guide

38 | English
INTEGRATED REFRIGERATION
WINE INTEGRATED PRO 48 BUILT-IN

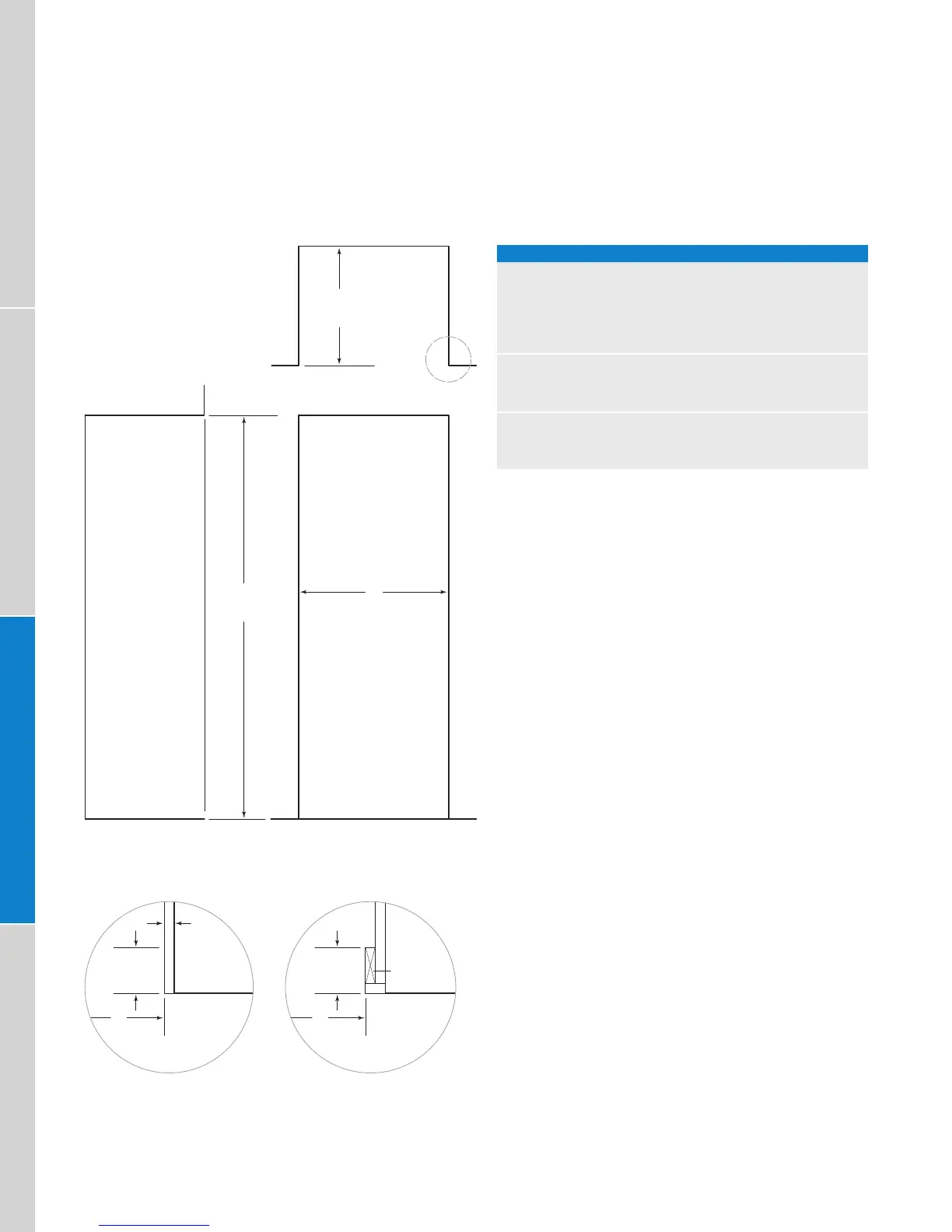

Opening Dimensions
INTEGRATED MODELS
635 mm
OPENING
DEPTH
W
OPENING WIDTH
H
OPENING
HEIGHT
NOTE: 89 mm
finished returns will be visible and should be finished to match cabinetry.
SIDE
VIEW
TOP VIEW
FRONT VIEW
89 mm
FINISHED
RETURN
FRAMELESS CABINETRY
19
mm
TYPICAL
89 mm
FINISHED
RETURN
FILLER
FRAMED CABINETRY
W W
OPENING DIMENSIONS
COLUMN W H
ICBIC-18FI 457 mm 2134 mm
ICBIC-24R, ICBIC-24FI 610 mm 2134 mm
ICBIC-30RID, ICBIC-30FI 762 mm 2134 mm
ICBIC-36RID 914 mm 2134 mm
TALL W H
ICBIT-30RID, ICBIT-30CIID 762 mm 2134 mm
ICBIT-36CIID 914 mm 2134 mm
DRAWER W H
ICBID-30RP, ICBID-30CI 762 mm 876 mm
ICBID-36CI 914 mm 876 mm
The depth of each integrated model is 610 mm. Allow for
panel thickness when planning the nished opening depth.
A minimum 89 mm nished return is required on all sides of
the opening. Framed cabinets will require additional nished
ller material behind the face frame for a proper installation.
Refer to the illustration.
DUAL INSTALLATION
When installing two units side by side in a dual installa-
tion, the opening width is the width of the two units added
together. A dual installation kit will be required for this instal-
lation. If a dual installation kit is not specied, a minimum 51
mm ller strip is required between units.
Dual installation kits are available through an authorized
Sub-Zero dealer. For questions regarding the installation,
contact your authorized Sub-Zero dealer.
