INTEGRATED REFRIGERATION
76 mm
152
mm
RIGHT SIDE
OF OPENING
AREA EXTENDS 13 mm
FORWARD ON FLOOR
A

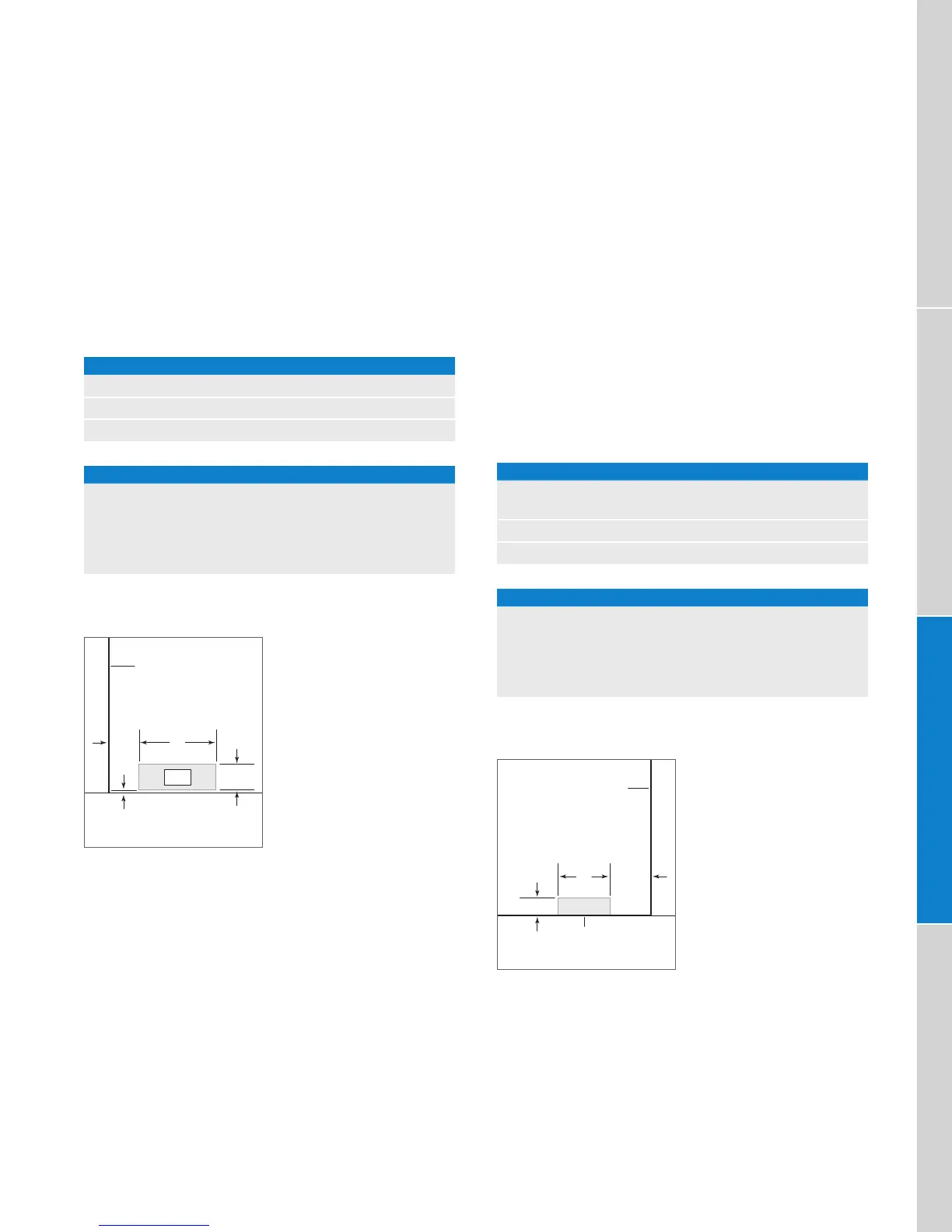

Water supply location.
Electrical
The electrical supply must be located within the shaded
area shown in the illustration and chart below. A separate
circuit, servicing only this appliance is required. A ground
fault circuit interrupter (GFCI) is not recommended and may
cause interruption of operation.
Installation must comply with all applicable electrical codes.
ELECTRICAL REQUIREMENTS
Power Supply 220-240 V AC, 50/60 Hz
Circuit Breaker 10 amp
Receptacle grounding-type (earthed)
ELECTRICAL SUPPLY LOCATION
WIDTH A
457 mm Model 152 mm
610 mm Model 241 mm
762 mm Model 318 mm
914 mm Model 394 mm
A
6 mm
108
mm
114
mm
FLOOR
LEFT SIDE
OF OPENING
E
Electrical supply location.
Plumbing
The water supply line should be located within the shaded
area shown in the illustration below. The water supply line
should be connected to the house supply with an easily
accessible shut-off valve. Do not use self-piercing valves.
The water supply line must not interfere with installation of
the anti-tip bracket.
A reverse osmosis system can be used provided there
is constant water pressure of 2.4–8.3 bar supplied to the
unit at all times. A copper line is not recommended for this
application.
Installation must comply with all applicable plumbing codes.
PLUMBING REQUIREMENTS
Water Supply Line 6.35 mm OD copper line,
braided stainless steel, or PEX tubing
Water Pressure 2.4–8.3 bar
Excess Water Line for Connection .9 m
WATER SUPPLY LOCATION
WIDTH A
457 mm Model 76 mm
610 mm Model 140 mm
762 mm Model 152 mm
914 mm Model 229 mm
BUILT-IN PRO 48 INTEGRATED WINE
