Sub-Zero ICBBI-36F Design Guide

58 | English
WINE STORAGE
Custom Panels—ICBWS-30
OVERLAY PANELS

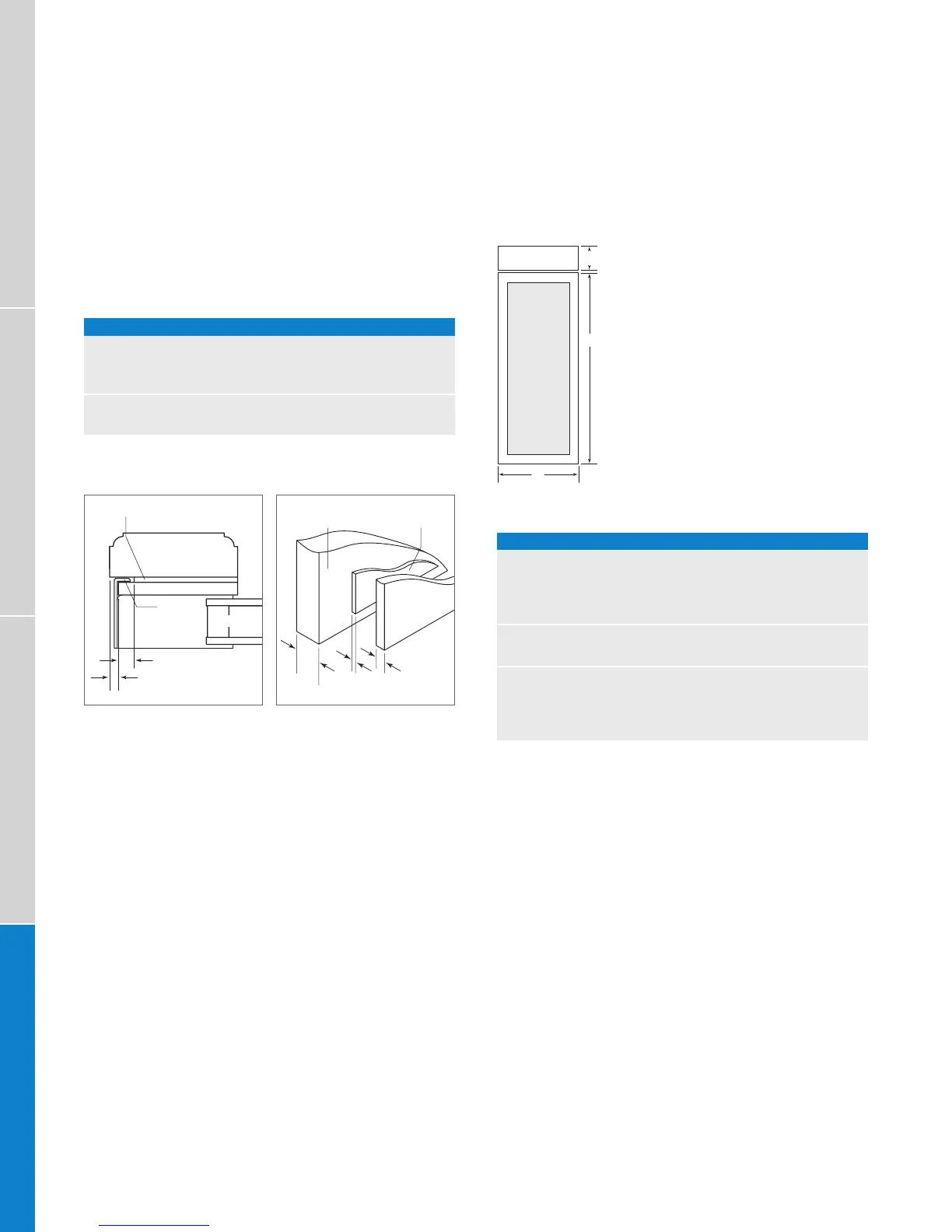

Overlay panels are typically created by combining a 19 mm
custom panel, a 3 mm spacer panel and a 6 mm backer
panel. Refer to the illustrations below.
PANEL REQUIREMENTS
PANEL WEIGHT MAX
Door 34 kg
Grille 6 kg
PANEL THICKNESS MIN
Overlay 16 mm
3 mm
CUSTOM PANEL
SPACER PANEL
BACKER PANEL
TRIM
8 mm min
DOOR FRAME
GLASS
6 mm
3
mm
CUSTOM
PANEL
SPACER
PANEL
BACKER
PANEL
19
mm
TYPICAL
Panel assembly cross section
(overlay).
Panel assembly rear view.
OVERLAY PANEL DIMENSIONS
H
H
W
AA
A
A
ICBWS-30
OVERLAY PANELS
DOOR W H
Overlay Panel 762 mm 1772 mm
Spacer Panel 740 mm 1751 mm
Backer Panel 756 mm 1767 mm
STILES / RAILS A
Minimum 83 mm
GRILLE W H
Overlay Panel 762 mm 235 mm*
Spacer Panel 740 mm 211 mm
Backer Panel 756 mm 227 mm
*Panel height may be increased by 11 mm to hide upper main
frame.
Grille panel dimensions are for standard 2134 mm overall unit
height. For 2108 mm height, subtract 25 mm from grille panel
height dimensions and for 2235 mm height, add 102 mm. A specic
panel grille must be ordered for a 2108 mm or 2235 mm overall unit
height.
