Sub-Zero ICBBI-36R Installation Instructions

14
C
C C
H
W
H
D
H
W
H
C
W
H
C C
D
W
H

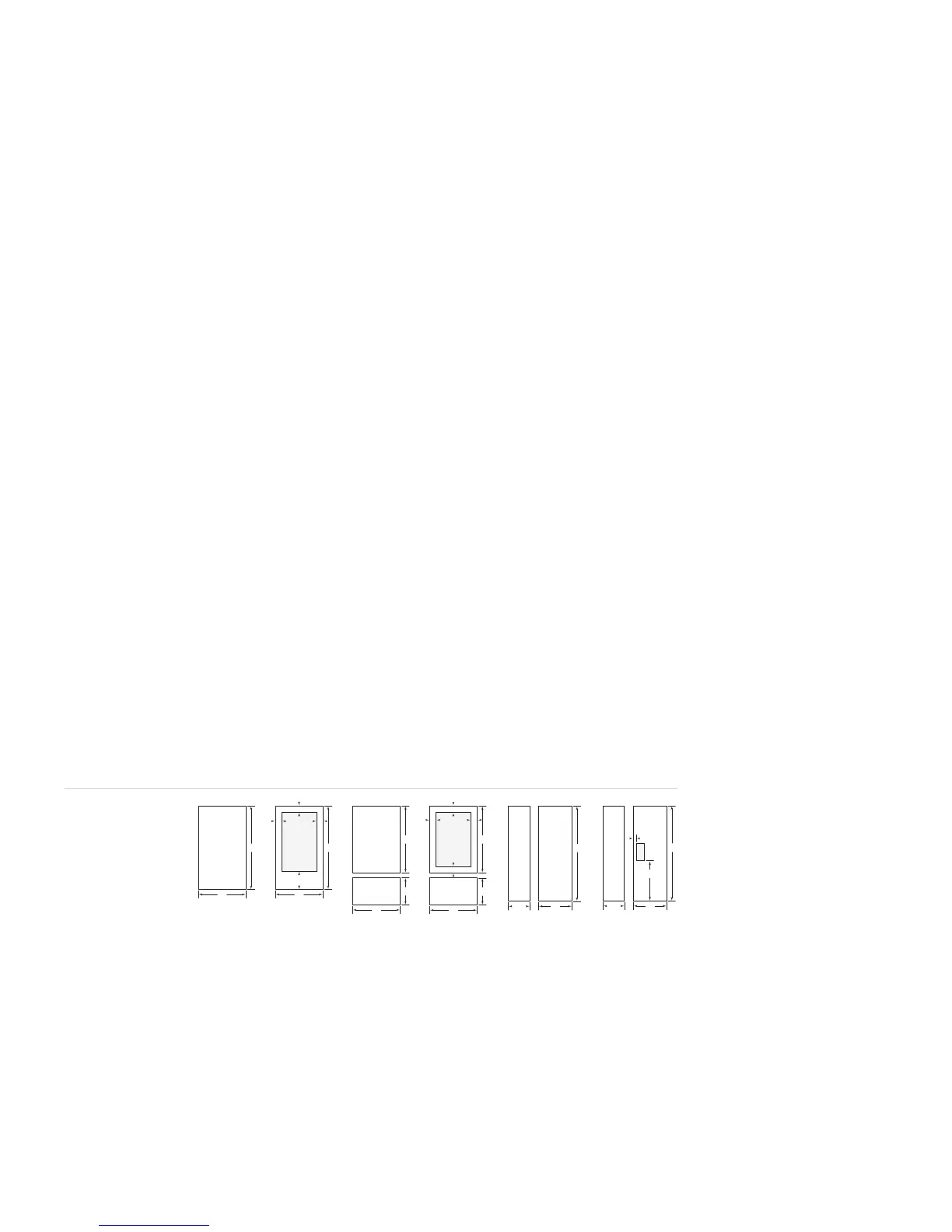

FLUSH INSET DOOR PANELS
All Refrigerator | All Freezer Models in a Flush Inset Application
Model ICBBI-36R W H
Refrigerator Flush Inset Panel 940 mm 1772 mm
Refriger
ator Spacer Panel 892 mm 1751 mm
Refrigerator Backer Panel 908 mm 1767 mm
Refrigerator Panel Offset L 16 mm R 16 mm
Model ICBBI-36RG W H
Refrigerator Flush Inset Panel 940 mm
1772 mm
Refriger
ator Spacer Panel 892 mm 1751 mm
Refrigerator Backer Panel 908 mm 1767 mm
Refrigerator Panel Offset L 16 mm R 16 mm
Window Cut-Out Dimensions TBD
TBD
Window Cut-Out Location C TBD D TBD
Model ICBBI-36F W H
F
reezer Flush Inset Panel 940 mm
1772 mm
F
reezer Spacer Panel 892 mm 1751 mm
Freezer Backer Panel 908 mm 1767 mm
Freezer Panel Offset L 16 mm R 16 mm
IMPORTANT NOTE: Panel specifications are for Built-In
overlay/flush inset models in a flush inset application.
FLUSH INSET DOOR PANELS
Over-and-Under Models in a Flush Inset Application
Models ICBBI-30U and ICBBI-30UG H
Refrigerator Flush Inset Panel 787 mm 1273 mm
Refriger
ator Spacer Panel 740 mm 1253 mm
Refrigerator Backer Panel 756 mm 1268 mm
Refrigerator Panel Offset L 16 mm R 16 mm
F
reezer Flush Inset P
anel 787 mm 483 mm
Freezer Spacer Panel 740 mm 459 mm
Freezer Backer Panel 756 mm 475 mm
Freezer Panel Offset L 16 mm R 16 mm
Model ICBBI-30UG W H
Window Cut-Out Dimensions TBD
TBD
Window Cut-Out Location C TBD D TBD
Models ICBBI-36U and ICBBI-36UG H
Refriger
ator Flush Inset Panel 940 mm
1273 mm
Refriger
ator Spacer Panel 892 mm 1253 mm
Refrigerator Backer Panel 908 mm 1268 mm
Refrigerator Panel Offset L 16 mm R 16 mm
F
reezer Flush Inset P
anel 940 mm 483 mm
Freezer Spacer Panel 892 mm 459 mm
Freezer Backer Panel 908 mm 475 mm
Freezer Panel Offset L 16 mm R 16 mm
Model ICBBI-36UG W H
Window Cut-Out Dimensions TBD
TBD
Window Cut-Out Location C TBD D TBD
IMPORTANT NOTE: Panel specifications are for Built-In
overlay/flush inset models in a flush inset application.
Models ICBBI-30U
and ICBBI-36U
Models ICBBI-30UG
and ICBBI-36UG
Model ICBBI-36RGModels ICBBI-36R
and ICBBI-36F
FLUSH INSET DOOR PANELS
Side-by-Side Models in a Flush Inset Application
Model ICBBI-36S W H
Refrigerator Flush Inset Panel 522 mm 1772 mm
Refriger
ator Spacer Panel 487 mm 1751 mm
Refrigerator Backer Panel 503 mm 1767 mm
Refrigerator Panel Offset L 3 mm R 16 mm
F
reezer Flush Inset P
anel 411 mm 1772 mm
Freezer Spacer Panel 376 mm 1751 mm
Freezer Backer Panel 392 mm 1767 mm
Freezer Panel Offset L 16 mm R 3 mm
Models ICBBI-42S and ICBBI-42SD H
Refrigerator Flush Inset Panel 649 mm
1772 mm
Refriger
ator Spacer Panel 614 mm 1751 mm
Refrigerator Backer Panel 630 mm 1767 mm
Refrigerator Panel Offset L 3 mm R 16 mm
F
reezer Flush Inset P
anel 437 mm 1772 mm
Freezer Spacer Panel 402 mm 1751 mm
Freezer Backer Panel 418 mm 1767 mm
Freezer Panel Offset L 16 mm R 3 mm
Models ICBBI-48S and ICBBI-48SD H
Refrigerator Flush Inset Panel 743 mm
1772 mm
Refriger
ator Spacer Panel 708 mm 1751 mm
Refrigerator Backer Panel 724 mm 1767 mm
Refrigerator Panel Offset L 3 mm R 16 mm
F
reezer Flush Inset P
anel 495 mm 1772 mm
Freezer Spacer Panel 460 mm 1751 mm
Freezer Backer Panel 476 mm 1767 mm
Freezer Panel Offset L 16 mm R 3 mm
Models ICBBI-42SD and ICBBI-48SD H
Glasswell Cut-Out Dimensions 149 mm
316 mm
Glass
well Location (Flush Inset) E 51 mm F 732 mm
Glasswell Location (Spacer) E 40 mm F 721 mm
Glasswell Location (Bac
ker) E 48 mm F 729 mm
For Models ICBBI-42SD and ICBBI-48SD, panel thickness in
the glasswell area can range from 6 mm to a maximum of 29
mm. If the panel is thicker, you must rout out a minimum 6
mm flat landing area to accommodate the bezel surrounding
the glasswell.
WW
H
Models ICBBI-36S,
ICBBI-42S and
ICBBI-48S
Models ICBBI-42SD
and ICBBI-48SD
WW
H
E
F
FLUSH INSET GRILLE PANELS
Overlay/Flush Inset Models
Models ICBBI-30U and ICBBI-30UG
Grille Flush Inset Panel Width 787 mm
Grille Spacer Panel Width 740 mm
Grille Bac
ker Panel Width 756 mm
Models ICBBI-36R, ICBBI-36RG, ICBBI-36F, ICBBI-36U,
ICBBI-36UG and ICBBI-36S
Grille Flush Inset Panel Width 940 mm
Grille Spacer P
anel Width 892 mm
Grille Bac
ker Panel Width 908 mm
Models ICBBI-42S and ICBBI-42SD
Grille Flush Inset Panel Width 1092 mm
Grille Spacer P
anel Width 1045 mm
Grille Bac
ker Panel Width 1060 mm
Models ICBBI-48S and ICBBI-48SD
Grille Flush Inset Panel Width 1245 mm
Grille Spacer P
anel Width 1197 mm
Grille Bac
ker Panel Width 1213 mm
2108 mm Overall Unit Height
Grille Overlay Panel Height 210 mm
Grille Spacer P
anel Height 186 mm
Grille Bac
ker Panel Height 202 mm
2134 mm Overall Unit Height
(standard)
Grille Overlay Panel Height 235 mm
Grille Spacer Panel Height 211 mm
Grille Backer Panel Height 227 mm
2235 mm Overall Unit Height
Grille Overlay Panel Height 337 mm
Grille Spacer P
anel Height 313 mm
Grille Bac
ker Panel Height 329 mm
For overlay grille panel sizes, use width dimension listed
for your model and height dimension for overall unit height.
2134 mm overall unit height is standard.
DOUBLE FLUSH INSET GRILLE PANELS
Dual Installation with 2235 mm Overall Height
Two 762 mm Wide Units W H
Double Grille Flush Inset Panel 1556 mm 235 mm
Double Grille Spacer P
anel 1508 mm 211 mm
Double Grille Backer Panel 1524 mm 227 mm
Two 914 mm Wide Units W H
Double Grille Flush Inset Panel 1861 mm
235 mm
Double Grille Spacer P
anel 1813 mm 211 mm
Double Grille Backer Panel 1829 mm 227 mm
IMPORTANT NOTE: Panel specifications are for Built-In
overlay/flush inset models in a flush inset application.
FLUSH INSET
PANELS
Panel specifications
are for Built-In flush
inset applications.
Additional panel infor-
mation can be found
in the Built-In Design
Guide. Check our
website at
subzero.com.
FLUSH INSET PANEL SPECIFICATIONS
