BUILT-IN REFRIGERATION

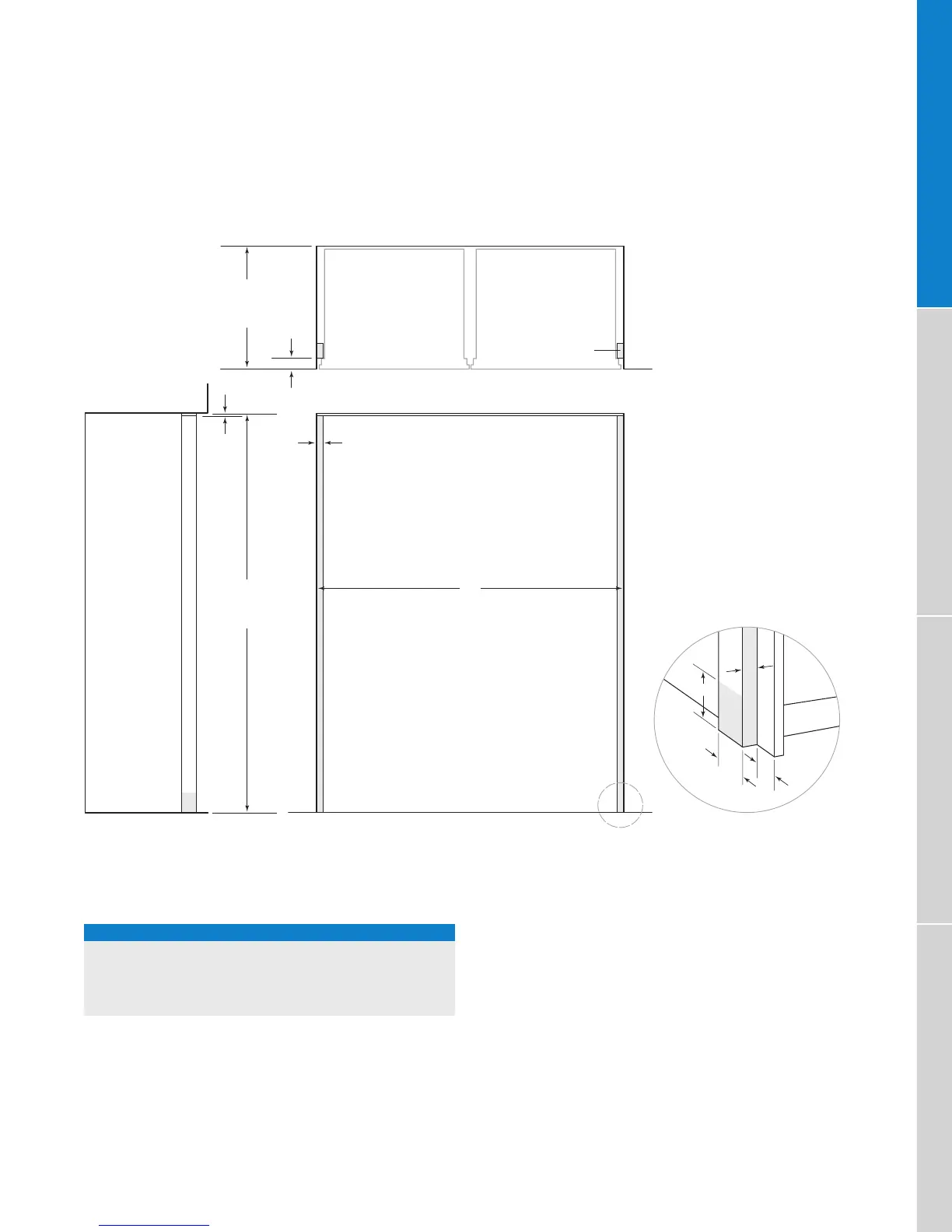

Opening Dimensions
DUAL FLUSH INSET INSTALLATION
2134 mm
FLUSH
INSET
HEIGHT
6 mm
665 mm
FLUSH
INSET
DEPTH
56
mm
76 mm typical depth. Shaded areas will be visible and should be finished to match cabinetry.
NOTE: Shaded line represents profile of unit with
19 mm panel.
FRONT VIEW
VIEW
TOP VIEW
FINISHED
CLEATS*
32 mm
W
FLUSH INSET WIDTH
102 mm
32
mm
56
mm
76
mm*
TYPICAL
FLUSH INSET WIDTH
MODELS W
Two 762 mm Models 1581 mm
762 mm Model and 914 mm Model 1734 mm
Two 914 mm Models 1886 mm
Dimensions assume a 19 mm panel thickness. A dual instal-
lation kit will be required for this installation.
