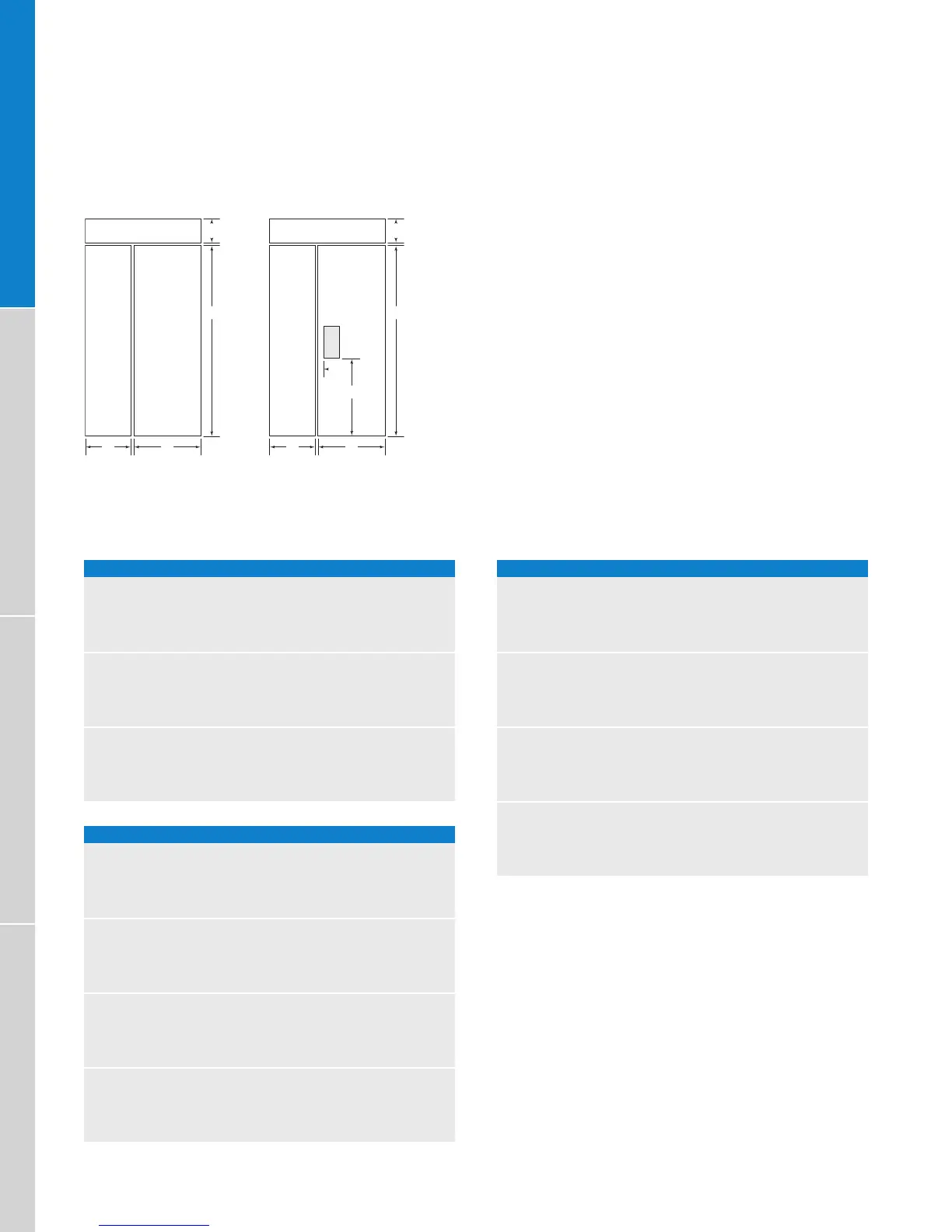

Overlay Panel Dimensions
BUILT-IN REFRIGERATION
H
H
H
W
AA
A
A
H
H
W
H
H
W
H
H
W
AA
A
B
H
H
H
W
H
W
H
H
WW
B
A
H
H
W
W W
H
H
H
W
AA
A
A
H
H
W
H
H
W
H
H
W
AA
A
B
H
H
H
W
H
W
H
H
WW
B
A
H
H
W
W W
ICBBI-36S / ICBBI-42S
ICBBI-48S / ICBBI-48SID
ICBBI-42SD / ICBBI-48SD
MODEL ICBBI-36S
REFRIGERATOR W H
Overlay Panel 510 mm 1772 mm
Spacer Panel 487 mm 1751 mm
Backer Panel 503 mm 1767 mm
FREEZER W H
Overlay Panel 398 mm 1772 mm
Spacer Panel 376 mm 1751 mm
Backer Panel 392 mm 1767 mm
GRILLE W H
Overlay Panel 914 mm 235 mm*
Spacer Panel 892 mm 211 mm
Backer Panel 908 mm 227 mm
MODEL ICBBI-42S, ICBBI-42SD
REFRIGERATOR W H
Overlay Panel 637 mm 1772 mm
Spacer Panel 614 mm 1751 mm
Backer Panel 630 mm 1767 mm
FREEZER W H
Overlay Panel 424 mm 1772 mm
Spacer Panel 402 mm 1751 mm
Backer Panel 418 mm 1767 mm
GRILLE W H
Overlay Panel 1067 mm 235 mm*
Spacer Panel 1045 mm 211 mm
Backer Panel 1060 mm 227 mm
ICBBI-42SD W H
Dispenser Cut-Out 149 mm 316 mm
A B
Cut-Out Location 51 mm 732 mm
MODEL ICBBI-48S, ICBBI-48SID, ICBBI-48SD
REFRIGERATOR W H
Overlay Panel 730 mm 1772 mm
Spacer Panel 708 mm 1751 mm
Backer Panel 724 mm 1767 mm
FREEZER W H
Overlay Panel 483 mm 1772 mm
Spacer Panel 460 mm 1751 mm
Backer Panel 476 mm 1767 mm
GRILLE W H
Overlay Panel 1219 mm 235 mm*
Spacer Panel 1197 mm 211 mm
Backer Panel 1213 mm 227 mm
ICBBI-48SD W H
Dispenser Cut-Out 149 mm 316 mm
A B
Cut-Out Location 51 mm 732 mm
*Panel height may be increased by 11 mm to hide upper main
frame.
Grille panel dimensions are for standard 2134 mm overall unit
height. For 2108 mm height, subtract 25 mm from grille panel
height dimensions and for 2235 mm height, add 102 mm. A specic
panel grille must be ordered for a 2108 mm or 2235 mm overall unit
height.
