BUILT-IN REFRIGERATION
Custom Panels
FLUSH INSET PANELS
The ush inset application is an overlay model with ush
inset panels. It is not a separate model.
The ush inset design allows custom panels to be installed
ush with adjacent cabinets. Similar to overlay, ush inset
panels are typically created by combining a 19 mm custom
panel, a 3 mm spacer panel and a 6 mm backer panel. Refer
to the illustrations for overlay panels.
For ush inset panels thicker than 19 mm, a 90° door stop
may be required to prevent interference with adjacent
cabinets. Refer to the full-scale templates at the end of this
guide.
When installing two units side by side, refer to page 11 for
dual ush inset installations.

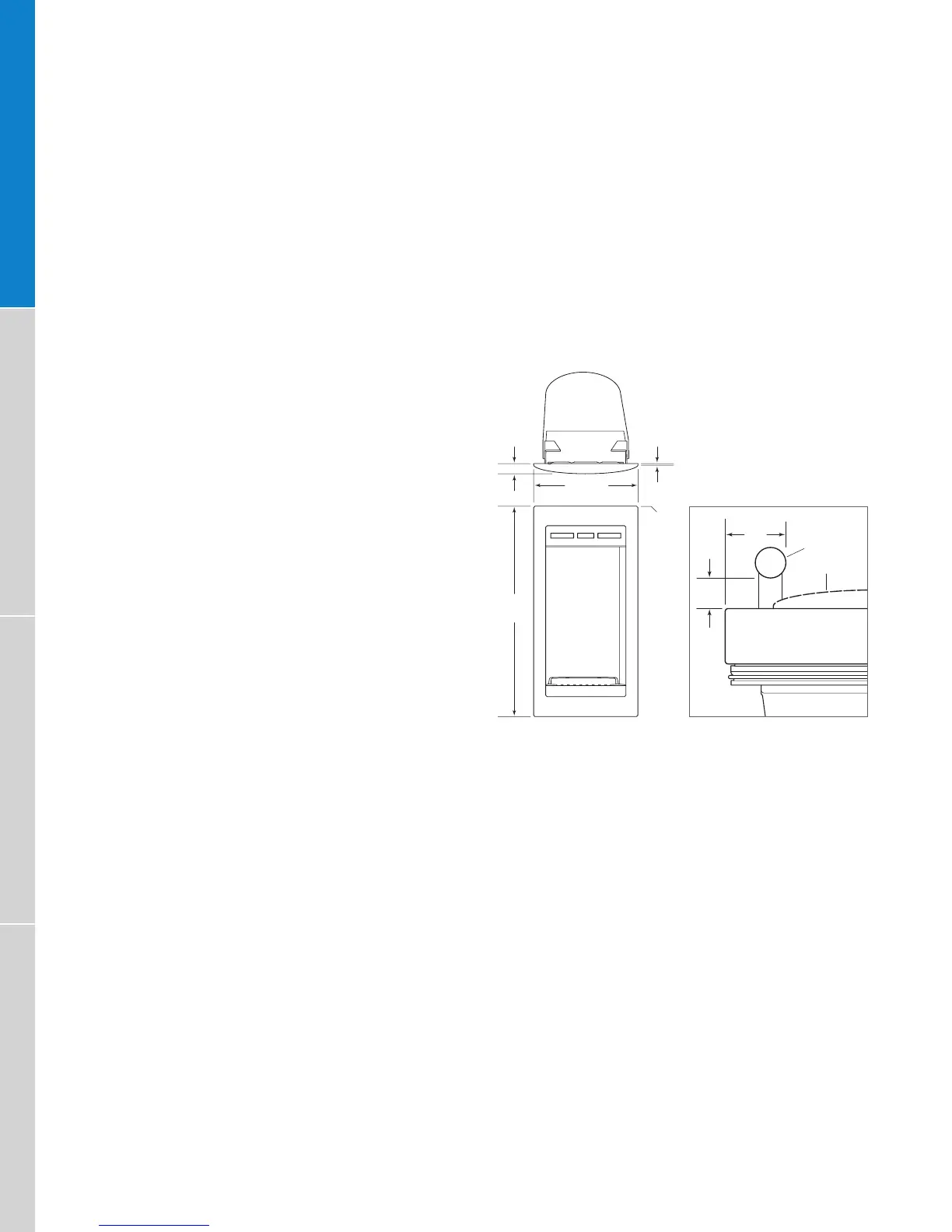

ICE AND WATER DISPENSER
For models ICBBI-42SD and BI-48SD, the refrigerator door
panel must include a cut-out to accommodate the external
dispenser. The thickness of the panel in this area can range
from 6 mm to a maximum of 29 mm. Refer to the illustra-
tions below.
160 mm
2 mm
3 mm
RADIUS
16 mm
327
mm
51
mm
25
mm
HANDLE
GLASSWELL
Dispenser dimensions.
Handle placement.
