BUILT-IN REFRIGERATION

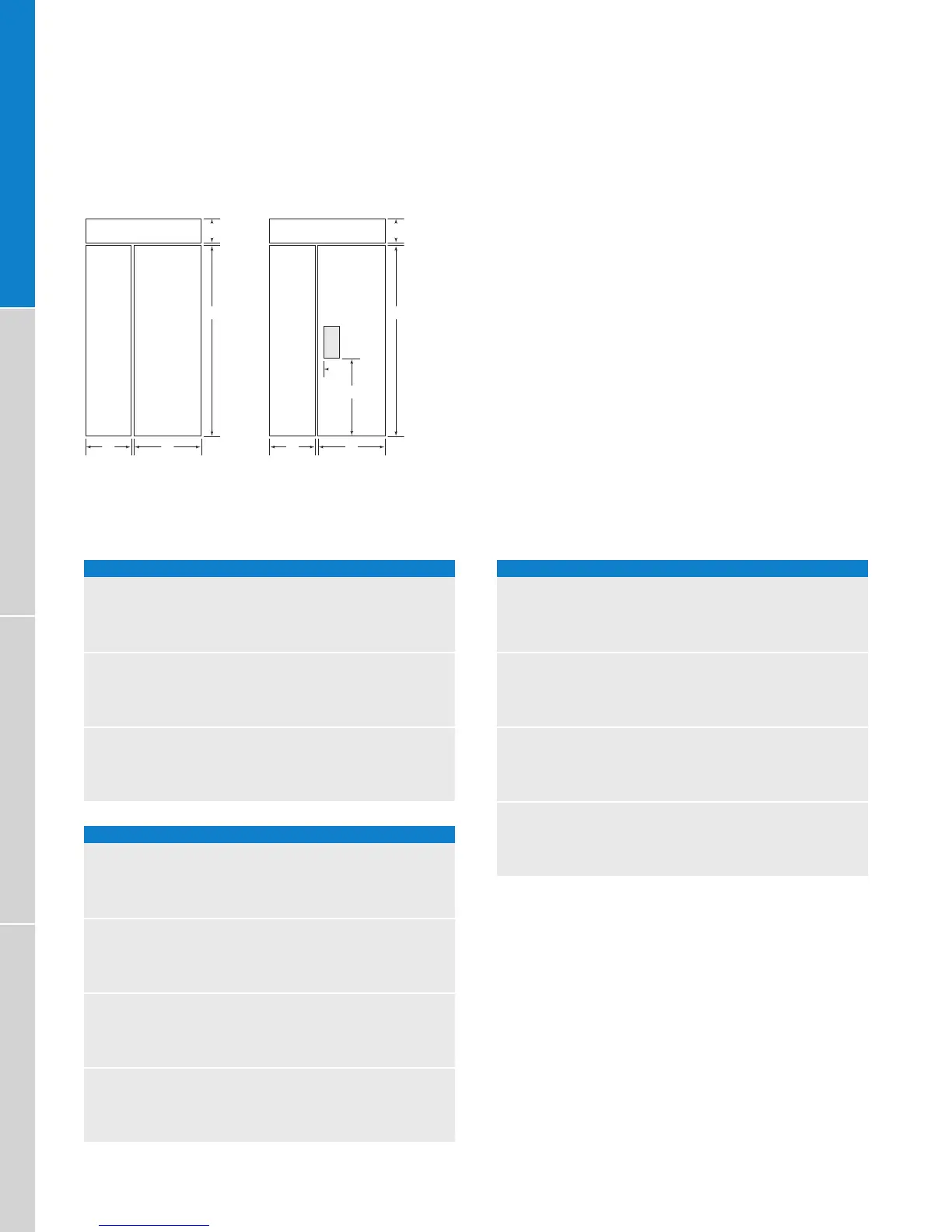

Flush Inset Panel Dimensions
MODEL ICBBI-36S
REFRIGERATOR W H
Flush Inset Panel 522 mm 1772 mm
Spacer Panel 487 mm 1751 mm
Backer Panel 503 mm 1767 mm
FREEZER W H
Flush Inset Panel 411 mm 1772 mm
Spacer Panel 376 mm 1751 mm
Backer Panel 392 mm 1767 mm
GRILLE W H
Flush Inset Panel 940 mm 235 mm
Spacer Panel 892 mm 211 mm
Backer Panel 908 mm 227 mm
MODEL ICBBI-42S, ICBBI-42SD
REFRIGERATOR W H
Flush Inset Panel 649 mm 1772 mm
Spacer Panel 614 mm 1751 mm
Backer Panel 630 mm 1767 mm
FREEZER W H
Flush Inset Panel 437 mm 1772 mm
Spacer Panel 402 mm 1751 mm
Backer Panel 418 mm 1767 mm
GRILLE W H
Flush Inset Panel 1092 mm 235 mm
Spacer Panel 1045 mm 211 mm
Backer Panel 1060 mm 227 mm
DISPENSER (ICBBI-42SD) W H
Dispenser Cut-Out 149 mm 316 mm
A B
Cut-Out Location 51 mm 732 mm
MODEL ICBBI-48S, ICBBI-48SID, ICBBI-48SD
REFRIGERATOR W H
Flush Inset Panel 743 mm 1772 mm
Spacer Panel 708 mm 1751 mm
Backer Panel 724 mm 1767 mm
FREEZER W H
Flush Inset Panel 495 mm 1772 mm
Spacer Panel 460 mm 1751 mm
Backer Panel 476 mm 1767 mm
GRILLE W H
Flush Inset Panel 1245 mm 235 mm
Spacer Panel 1197 mm 211 mm
Backer Panel 1213 mm 227 mm
DISPENSER (ICBBI-48SD) W H
Cut-Out 149 mm 316 mm
A B
Cut-Out Location 51 mm 732 mm
Grille panel dimensions are for standard 2134 mm overall unit
height. For 2108 mm height, subtract 25 mm from grille panel
height dimensions and for 2235 mm height, add 102 mm. A specic
panel grille must be ordered for a 2108 mm or 2235 mm overall unit
height.
H
H
H
W
AA
A
A
H
H
W
H
H
W
H
H
W
AA
A
B
H
H
H
W
H
W
H
H
WW
B
A
H
H
W
W W
H
H
H
W
AA
A
A
H
H
W
H
H
W
H
H
W
AA
A
B
H
H
H
W
H
W
H
H
WW
B
A
H
H
W
W W
ICBBI-36S / ICBBI-42S
ICBBI-48S / ICBBI-48SID
ICBBI-42SD / ICBBI-48SD
WINE INTEGRATED PRO 48 BUILT-IN
