subzero.com
|
25
BUILT-IN PRO 48 INTEGRATED WINE
Overlay and Flush Inset Panels

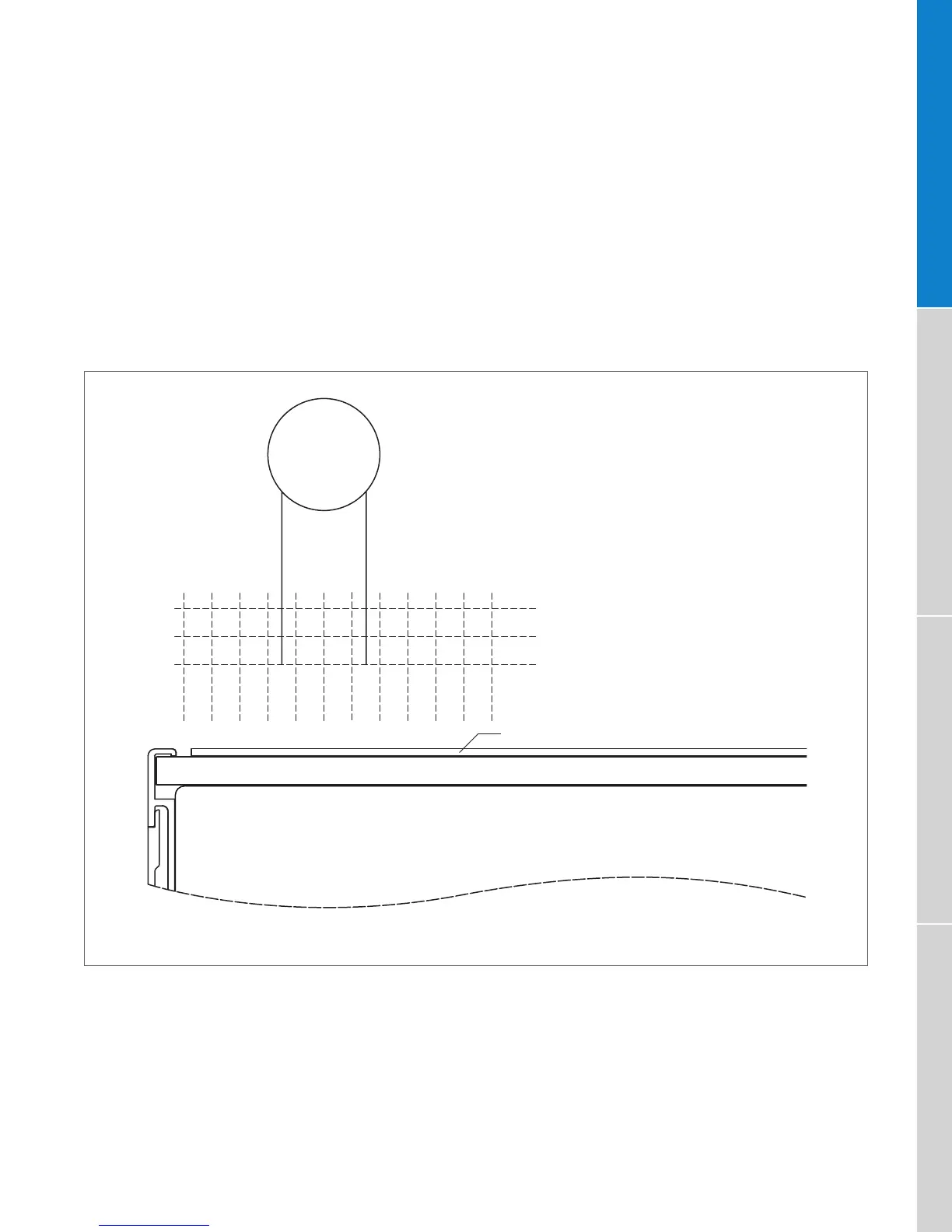

FULL-SCALE TEMPLATE
Overlay and ush inset panels must be a minimum of 16
mm thick to support mounting the handle. Panel thickness
does not include backer and spacer panel. Mount handle
close to the opening edge of the door.
BUILT-IN REFRIGERATION
Overlay and ush inset panel thickness.
6 mm BACKER PANEL
DOOR
DEPTH OF TUBULAR
AND PRO HANDLES
25
mm
76
mm
32 mm PANEL
25 mm PANEL
19 mm PANEL
51
mm
3 mm
SPACER PANEL
