27
BUILT-IN REFRIGERATION
32 mm
ASSUMES
19 mm
FLUSH INSET
PANEL
THICKNESS
56 mm
610 mm
TO BACK WALL
19 mm
THICK FLUSH INSET PANEL
(TYPICAL)
6 mm
BACKER PANEL
25 mm
THICK PANEL
25 mm0
SCALE

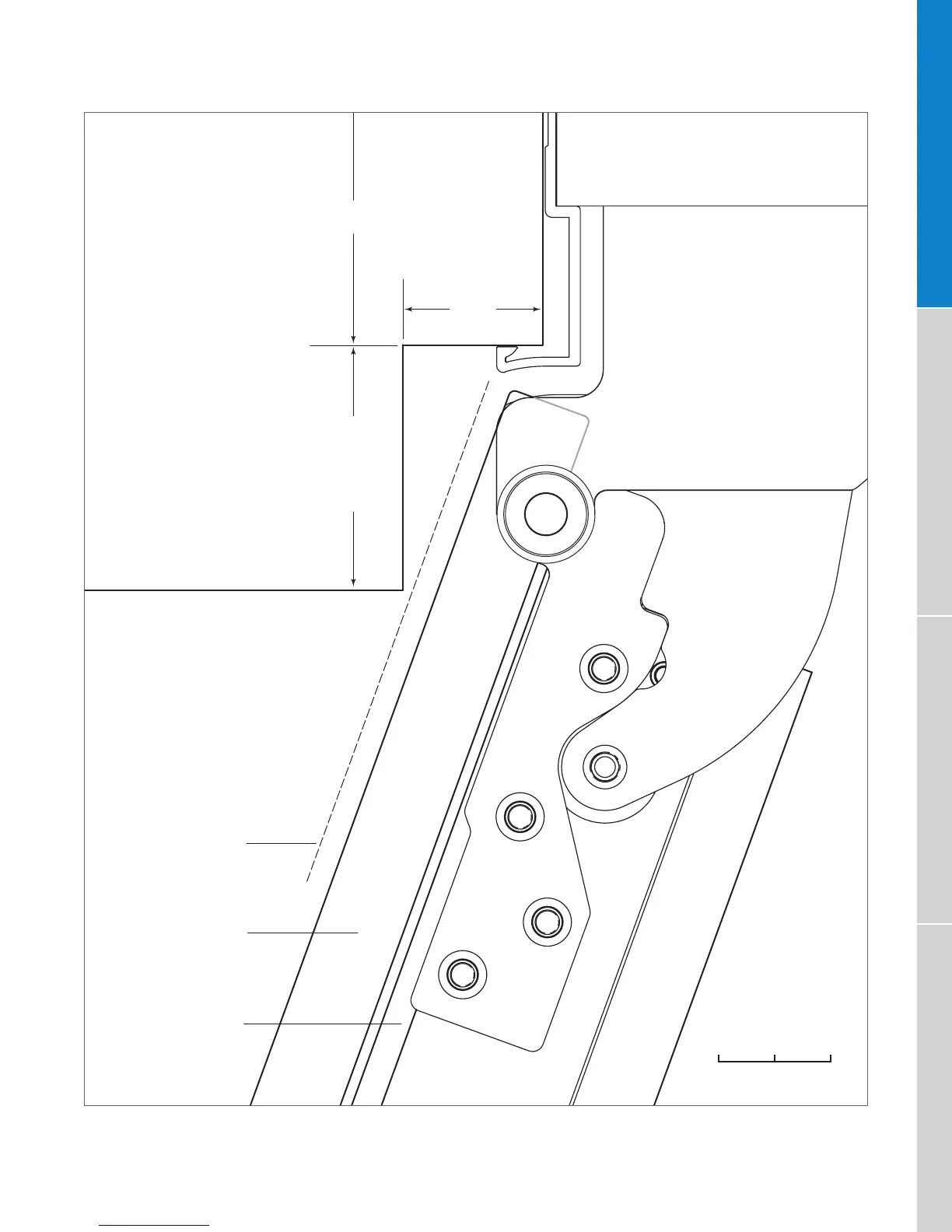

110° door opening (top view).
Flush Inset Application
FULL-SCALE TEMPLATE
For panels thicker than 19
mm, a 90° door stop may be
required to prevent interfer-
ence with adjacent cabinets.
BUILT-IN PRO 48 INTEGRATED WINE
