INTEGRATED REFRIGERATION
DOOR CLOSED
19 mm PANEL
POTENTIAL
INTERFERENCE
ADJACENT
CABINETRY
DOOR OPEN
MAXIMUM 105°
POTENTIAL INTERFERENCE
3 mm REVEAL
19 mm PANEL

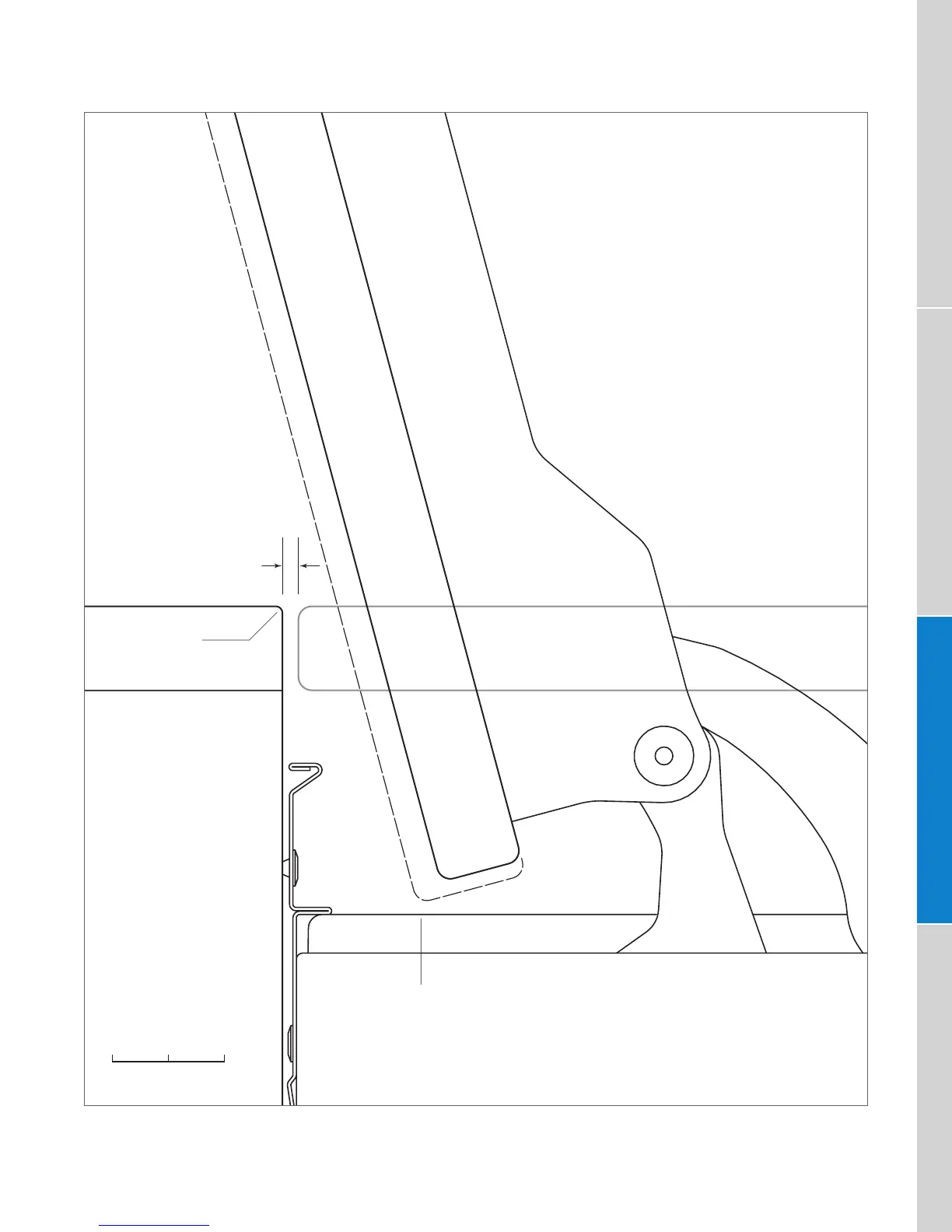

Maximum door opening (top view).
Maximum Door Opening
FULL-SCALE TEMPLATE
As the panel width and/or depth increases,
so does the potential for panel interference.
Interference may be minimized by utilizing
the 90° door stop.
25 mm0
SCALE
