WINE STORAGE
Custom Panels—ICBWS-30
SIDE PANEL
The custom side panel must be a minimum of 610 mm deep
and 13 mm thick. Routing will be necessary for the side
panel to t ush against the side of the unit. Refer to the
illustrations below.
When installing model ICBWS-30 with a custom side panel,
an accessory kit is required. Stainless steel and white
enamel side panels are available through an authorized Sub-
Zero dealer.
2134
mm
610 mm
OPTIONAL
TOE KICK
CUT-OUT
102 mm
48 mm
25 mm
ROUT TO 3 mm
FRONT
OF SIDE
PANEL
67 mm
MAIN
FRAME
SIDE PANEL
ROUTING
25 mm
48 mm
3 mm
13 mm

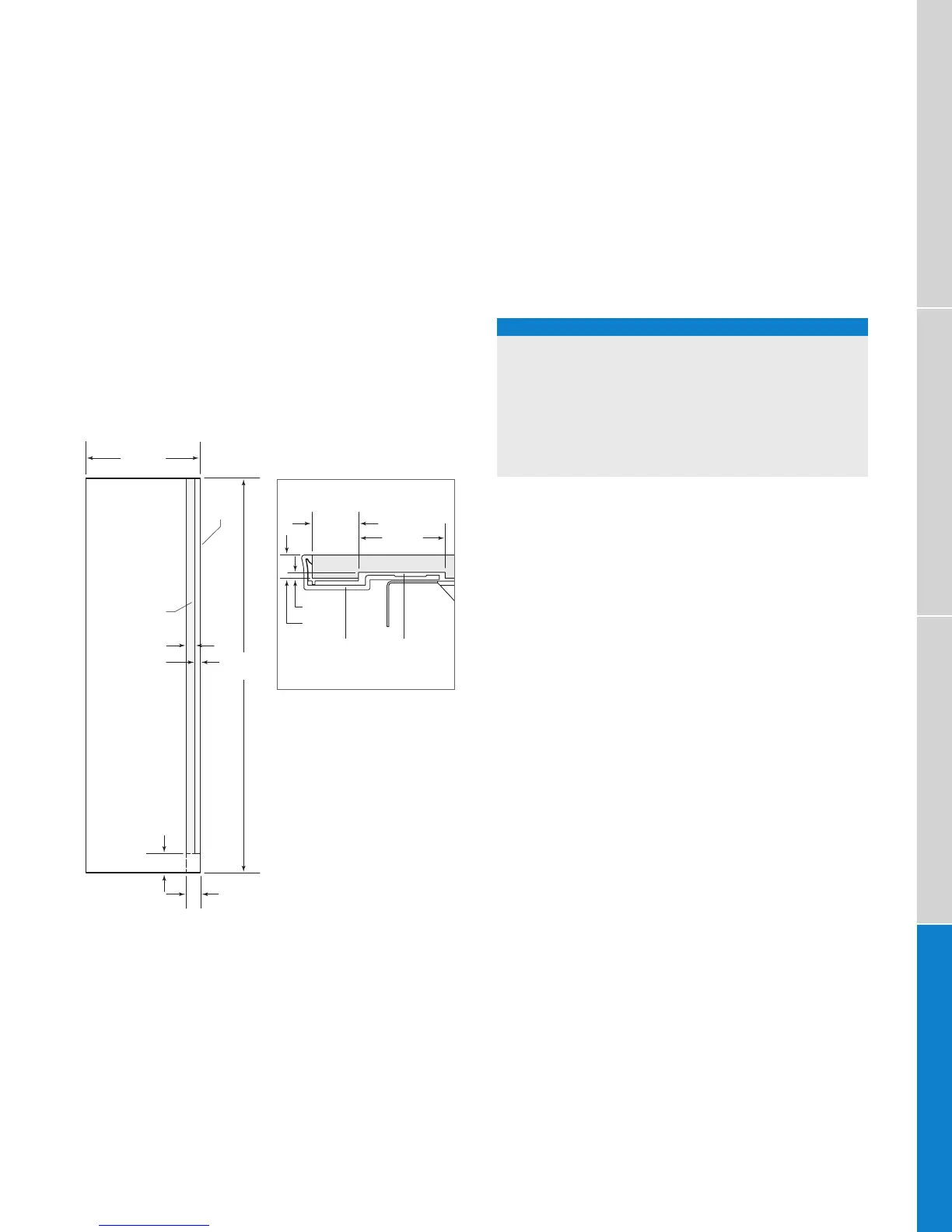

Side panel dimensions.
Routing detail.
Standard Handles
Optional stainless steel tubular and pro handles are avail-
able through an authorized Sub-Zero dealer.
Refer to the chart below for standard handle lengths for
wine storage models.
HANDLE LENGTH
WINE STORAGE TUBULAR PRO
ICB424G Door 616 mm 572 mm
ICBIW-18 Door 1273 mm 1229 mm
ICBIW-24 Door 1273 mm 1229 mm
ICBIW-30 Door 1273 mm 1229 mm
ICBIW-30R Door 845 mm 800 mm
ICBIW-30R Drawer 616 mm 572 mm
ICBWS-30 Door 1622 mm 1147 mm
BUILT-IN PRO 48 INTEGRATED WINE
