BUILT-IN REFRIGERATION

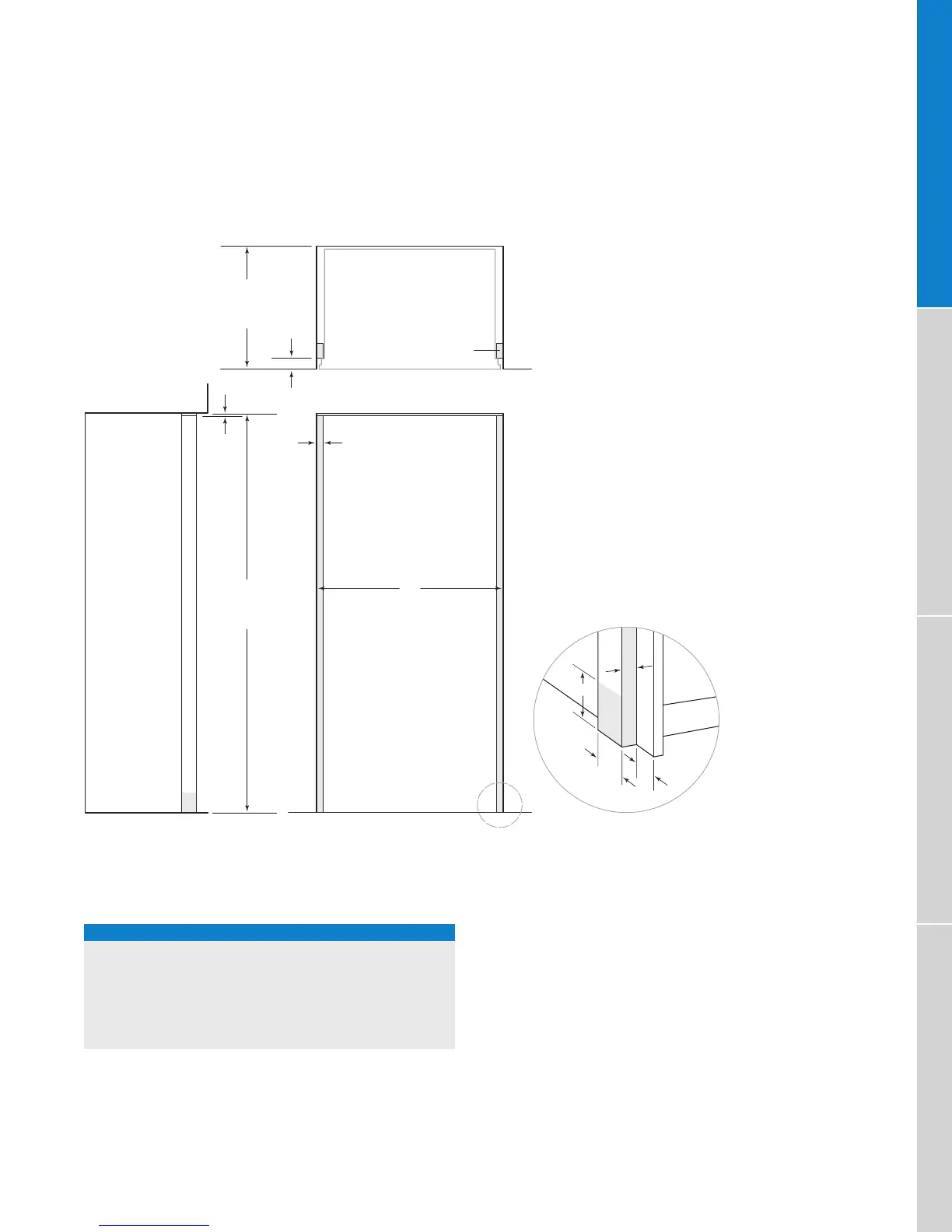

Opening Dimensions
FLUSH INSET INSTALLATION
FLUSH INSET WIDTH
MODEL W
ICBBI-36R, ICBBI-36F 965 mm
ICBBI-30U 813 mm
ICBBI-36U, ICBBI-36UFD, ICBBI-36S 965 mm
ICBBI-42S, ICBBI-42SD 1118 mm
ICBBI-48S, ICBBI-48SID, ICBBI-48SD 1270 mm
Dimensions assume a 19 mm panel thickness.
If a 2108 mm grille height is specied, the ush inset height
must be decreased by 22 mm. If a 2235 mm grille height is
specied, the ush inset height must be increased by 102
mm.
If two units are installed side by side, refer to page 11 for
dual ush inset installations.
2134 mm
FLUSH
INSET
HEIGHT
6 mm
665 mm
FLUSH
INSET
DEPTH
56
mm
*
76 mm typical depth. Shaded areas will be visible and should be finished to match cabinetry.
NOTE: Shaded line represents profile of unit with
19 mm panel.
FRONT VIEW
SIDE
VIEW
TOP VIEW
FINISHED
CLEATS*
32 mm
W
FLUSH INSET WIDTH
102 mm
32
mm
56
mm
76
mm*
TYPICAL
