Built-In Refrigeration 13
subzero.com/specs
Flush Inset Application
It is necessary to consider the following points when
planning for a flush inset application:
• The flush inset depth is 56 mm deeper than the
standard opening.
• The flush inset width is 64 mm wider than the
standard opening.
• The flush inset height is 6 mm higher than the
standard opening.
• Panel widths increase to achieve the flush inset look.
• You must allow a 13 mm reveal around the perimeter of
the unit and grille to allow for proper door swing and
airflow.
IMPORTANT NOTE: The flush inset application is not a
separate model. This is an overlay unit in a flush installa-
tion. The same model is used in an overlay or flush inset
application.

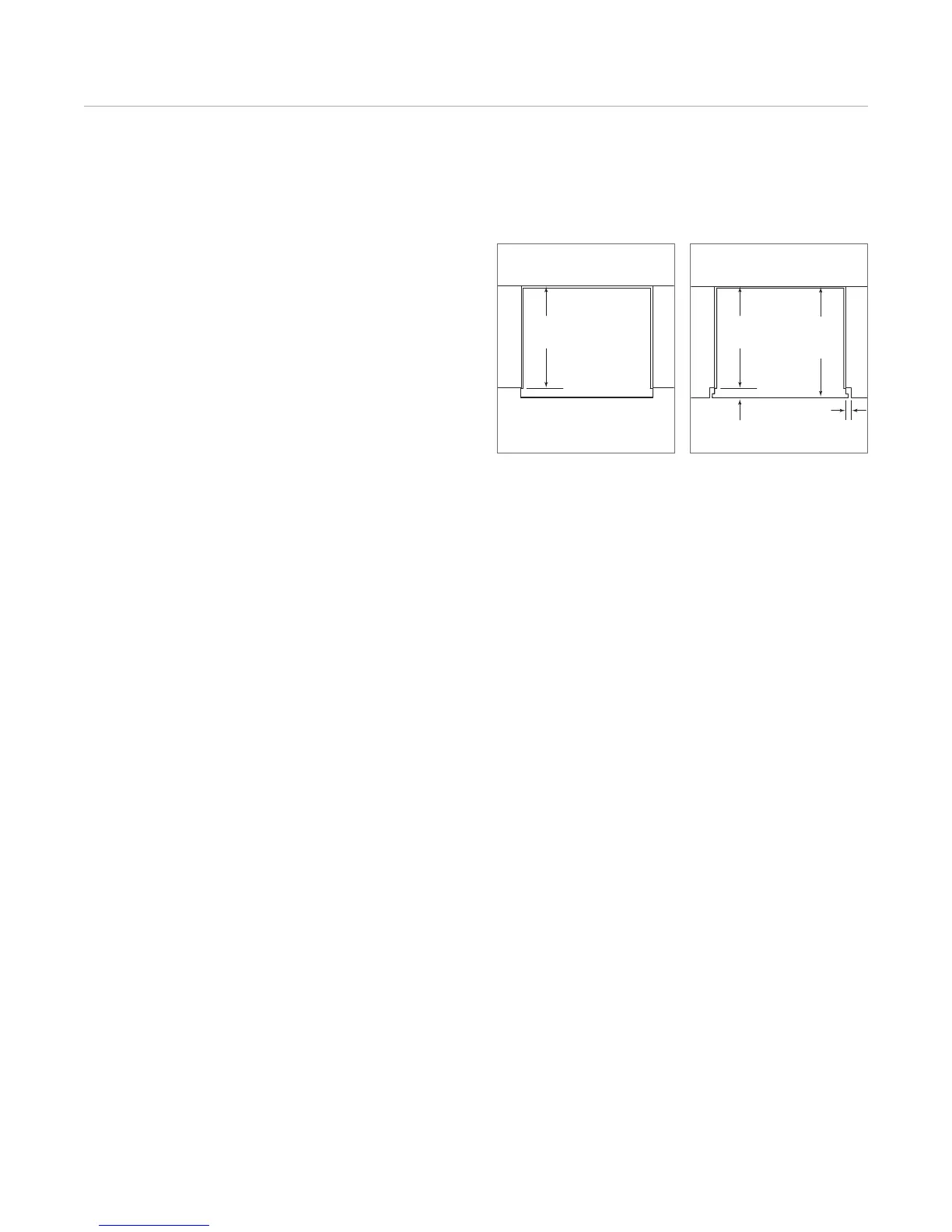

Rough opening dimensions for the flush inset application
assume the use of a 19 mm decorative panel. The illustra-
tions at right show the difference between standard and
flush inset installations.
STANDARD INSTALLATION
610 mm
OPENING
DEPTH
TOP VIEW
Standard installation. Flush inset installation.
665 mm
FLUSH
INSET
DEPTH
56 mm
32 mm
TOP VIEW
FLUSH INSET INSTALLATION
WITH
19 mm PANEL
610 mm
OPENING
DEPTH
