Sub-Zero ICBBI-48SID User Manual

Flush Inset Opening Widths A B
ICBBI-30U 746 mm 813 mm
ICBBI-36U 902 mm 965 mm
ICBBI-36S 902 mm 965 mm
ICBBI-42S 1054 mm 1118 mm
ICBBI-48S and ICBBI-48SD 1206 mm 1270 mm
IMPORTANT NOTE: Dimensions assume a 19 mm panel
thickness.
IMPORTANT NOTE: If two units are installed side by side,
refer to pages 23–27 for dual flush inset installations.
UNIT WITH
19 mm PANEL

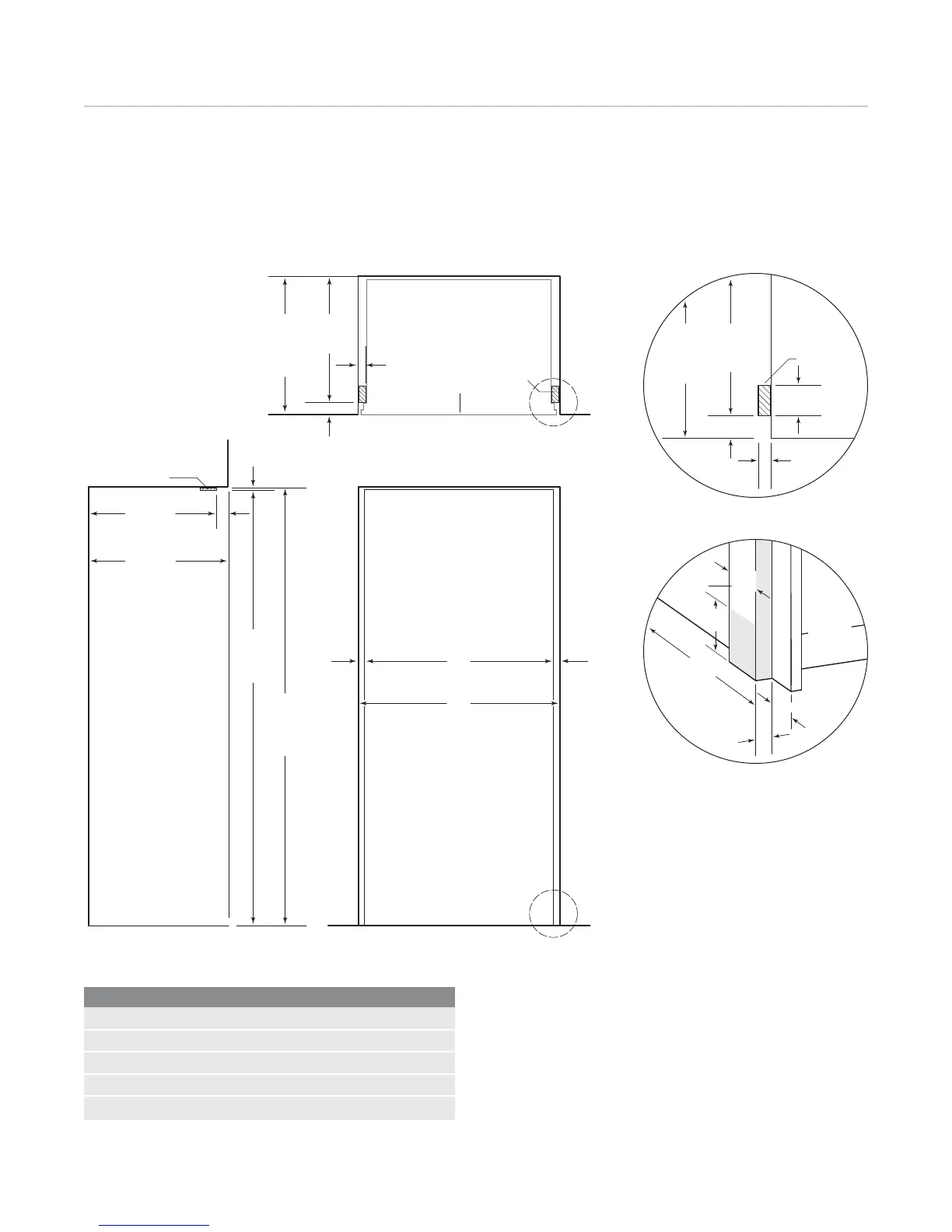

DETAIL A
DETAIL B
FRONT VIEW
A
WIDTH TO CLEAT
B
FLUSH INSET WIDTH
32
mm
32
mm
SIDE VIEW
2134
mm
FLUSH
INSET
HEIGHT
6 mm
610 mm
DEPTH TO CLEAT
665 mm
FLUSH INSET DEPTH
56
mm
2127
mm
HEIGHT
TO CLEAT
610 mm
DEPTH
TO CLEAT
665
mm
FLUSH
INSET
DEPTH
TOP VIEW
56 mm
32
mm
CLEAT
CLEAT
Detail A
Detail B
32 mm
610 mm
OPENING
DEPTH
TO CLEAT
CLEAT
TOP VIEW
665
mm
FLUSH
INSET
DEPTH
56 mm
76 mm
typical
610 mm
OPENING
DEPTH TO
CLEAT
32 mm
56 mm
CLEAT
SHADED
AREA
MUST BE
FINISHED
76 mm
typical
102
mm
Built-In Models
FLUSH INSET INSTALLATION
Built-In Refrigeration 14
