Sub-Zero ICBBI-48SID User Manual

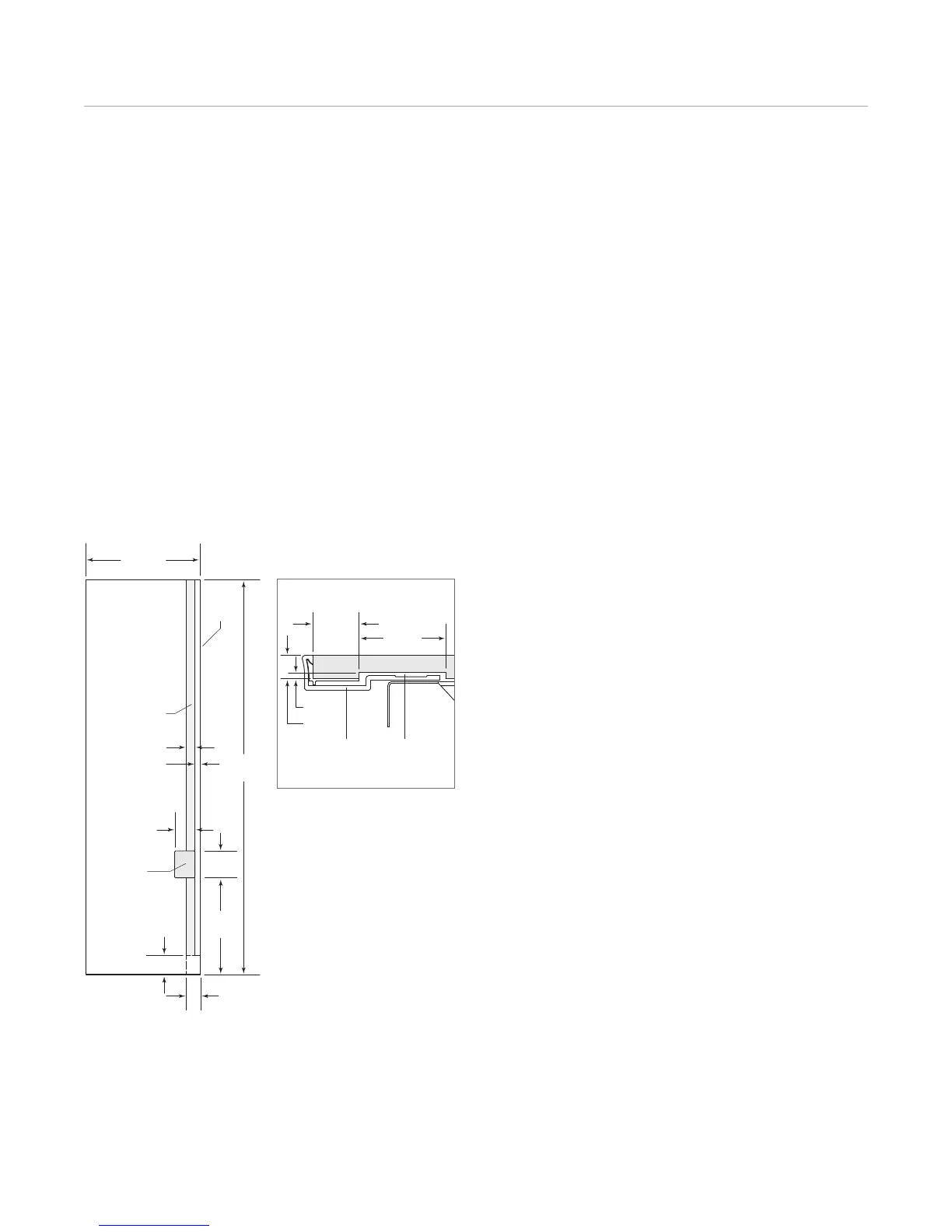

Routing detail.
MAIN
FRAME
SIDE PANEL
ROUTING
25 mm
48 mm
3 mm
13 mm
Side Panels
Side panels can be used with every design application.
When planning for side panels with the installation of a
built-in model, you need to be aware of the space configu-
ration to achieve a pleasing fit. Depending on the exact
panel you are using with your unit, the height of the panel
may vary.
IMPORTANT NOTE: The use of side panels may change
the width of your rough opening.
The side panel will need to be a minimum of 610 mm deep
and 13 mm thick. Refer to the illustrations below for side
panel dimensions. Routing will be necessary so that the
side panel fits flush against the side of the unit.
2134
mm
610 mm
ROUT TO
5 mm
(OVER-AND-UNDER
MODELS)
OPTIONAL
TOE KICK
CUT-OUT
102 mm
521
mm
146
mm
48 mm
25 mm
108 mm
ROUT TO 3 mm
FRONT
OF SIDE
PANEL
67 mm
Side panel dimensions.
IMPORTANT NOTE: If you have a model ICBBI-30U or
ICBBI-36U, extra routing will be necessary to prevent the
panel from hitting the refrigerator lower hinge plate.
When installing a built-in unit with a custom side panel, an
accessory kit (7003407) is required. Stainless steel and
white enamel side panels are also available through your
authorized Sub-Zero dealer.
Built-In Refrigeration 20
