Built-In Refrigeration 21
subzero.com/specs
Dual Installation
STANDARD APPLICATION
Two overlay or stainless steel units may be placed side by
side in a dual installation. Some standard applications will
require a dual installation kit, avail able through your
authorized Sub-Zero dealer. If you are installing two units
side by side in a flush inset application, refer to page 23.
A custom filler strip can be used between two units in an
overlay or stainless steel design application. It is recom-
mended that the filler strip be at least 51 mm wide to
prevent condensation between the units. Be sure to add
the filler strip width to your rough opening width. Refer to
the full-scale template on page 32.
Dual installations without a filler strip can only be accom-
plished using two units with opposite hinges as shown in
illustration A below. The dual installations shown in illus-
trations B and C require a filler strip.
IMPORTANT NOTE: For the application shown in illustra-
tion A, a dual installation accessory kit is required. Refer to
page 27 for information on dual installation kits.
Dual Installation Panel Requirements
MAX WEIGHT PER PANEL
All Models 23 kg
Dual Wide Grille Panel 12 kg
MIN PANEL THICKNESS
Overlay and Flush Inset Panels 16 mm

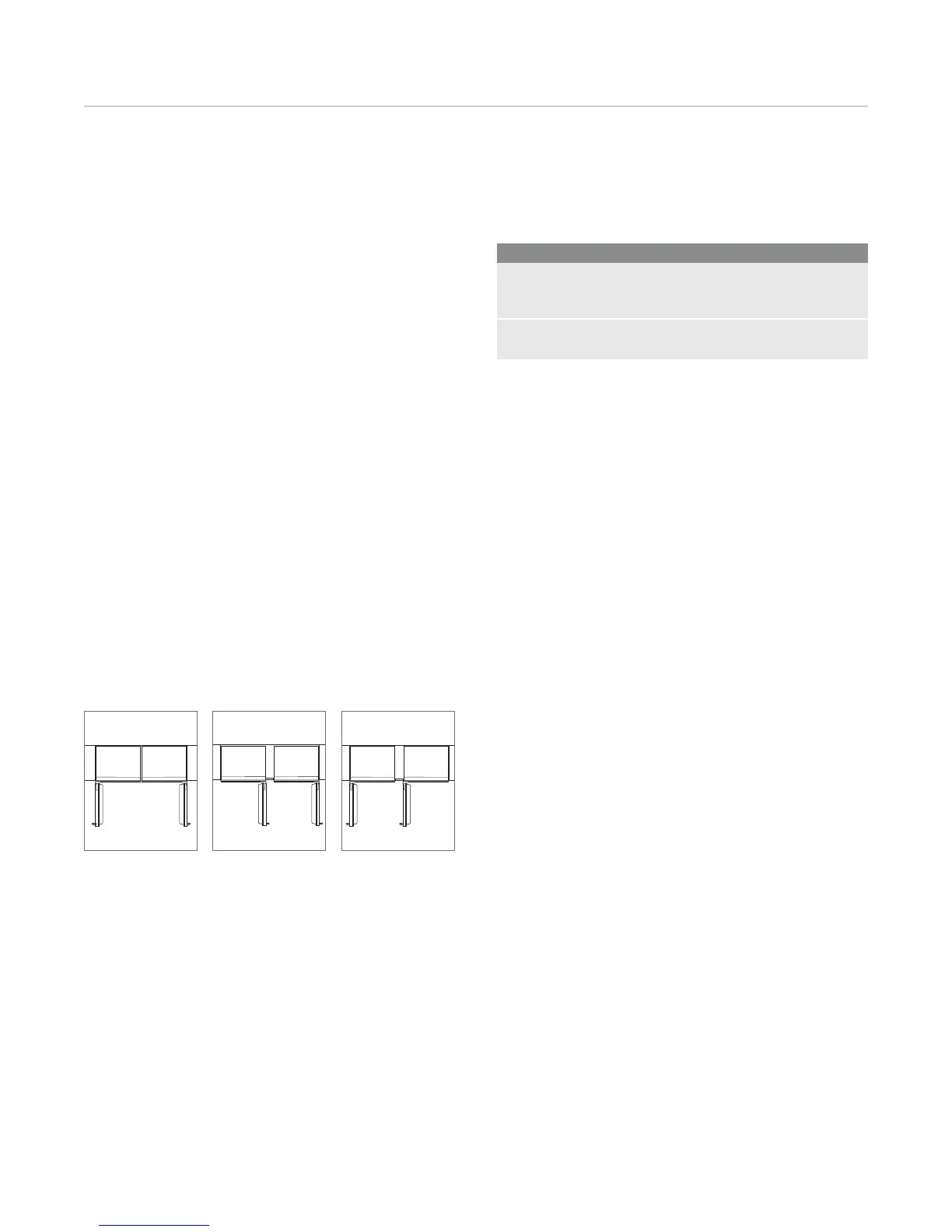

Illus. A
WITHOUT FILLER STRIP
FILLER STRIP REQUIRED
FILLER STRIP REQUIRED
Illus. B Illus. C
