Sub-Zero UC-15I Maintenance

4-6
#7012423 - Revision B - May, 2011
Maintenance/Cleaning/Adjust
Model UC-15I (Undercounter Ice Machine)
Ice Chute Removal
The ice chute is positioned over the spray nozzles and
allows the ice to easily fall into the bin.
To remove the ice chute, grab protruding spray hole on
one end, lift up and pull forward out of evaporator/spray
bar enclosure (See Figure 4-11)
NOTE: When reinstalling ice chute, it must be firmly
positioned over the spray bar, with the front edge inside
the water trough. Spray nozzles must be align with the
spray holes or spray water will fall into the bin.
Water Trough Drain Tube and Standpipe/Overflow
Tube Removal
To remove the drain tube and overflow tube (See Figure
4-12):
1. At top of drain tube, disengage tube clamp teeth
and remove clamp from tube and water trough nip-
ple.
2. Pull drain tube up out of bin drain.
3. Pull drain tube and standpipe/overflow tube down
out of water trough (water in the trough will drain
into the bin).
4. Remove standpipe/overflow tube from drain tube by
pulling.
Water Trough Removal
To remove the water trough (See Figure 4-13):
1. Depress tabs on right and left side of the water
trough.
2. Allow front of trough to drop as you pull forward to
disengage the rear pins, then pull from bin.

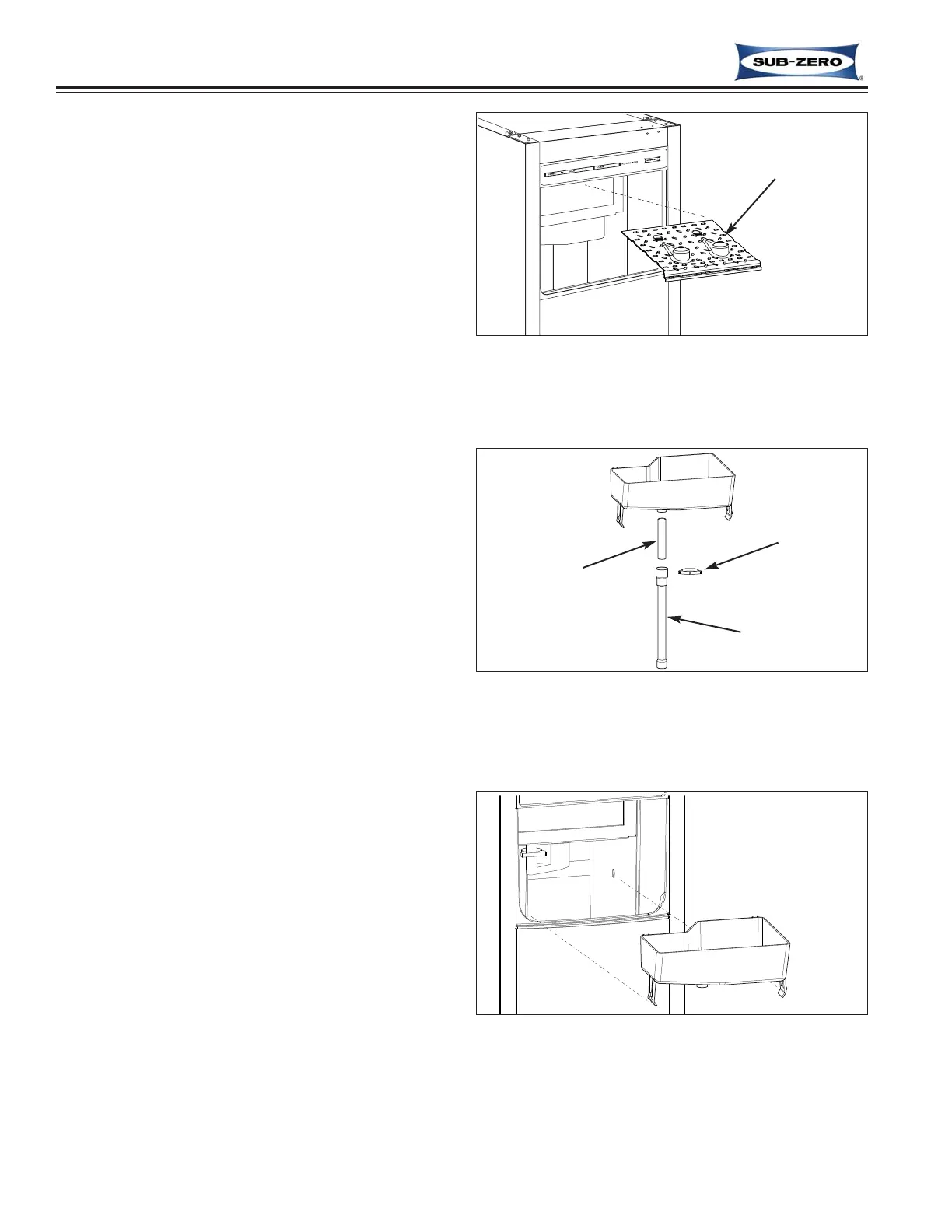

Figure 4-11. Ice Ramp Removal
Ice Ramp
Figure 4-12. Drain Tube & Overflow Tube Removal
Clamp
Water Trough
Drain Tube
Standpipe /
Overflow Tube
Figure 4-13. Water Trough Removal
Water Trough
