3-3
Electronic Control System
7011902 - Revision A - October, 2009
International Integrated
International Integrated
(ICB700 Base)
(ICB700 Base)
Series
Series

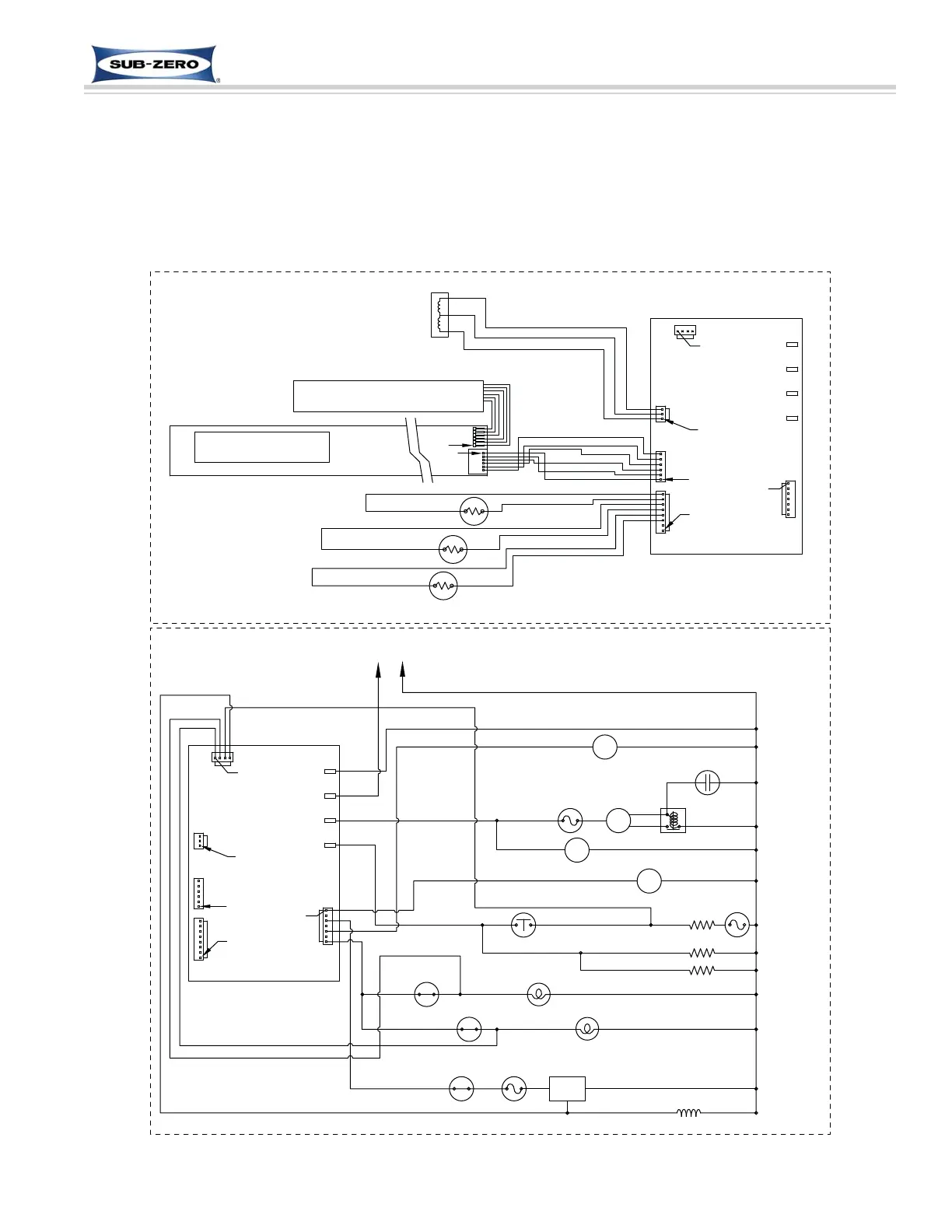

Figure 3-1. ICB700BCI Wiring Schematic
ELECTRONIC CONTROL SYSTEM OVERVIEW
This page contains the wiring schematic of the model ICB700BCI. Input operations for the electronic control system
are performed at the control panel (located inside the upper drawer), with monitoring, regulating and controlling func-
tions taking place at the main control board. Temperatures and possible problems with the unit are shown in the
control panel display. The entire electronic control system is described in greater detail on the following pages.
NOTE: For more detailed electrical diagrams refer to the wiring diagram and schematic supplied with the unit.
