Suburban SF-30F Service Manual

44
Figure 31
NT ELECTRODE GAP SPECIFICATIONS AND POSITIONING

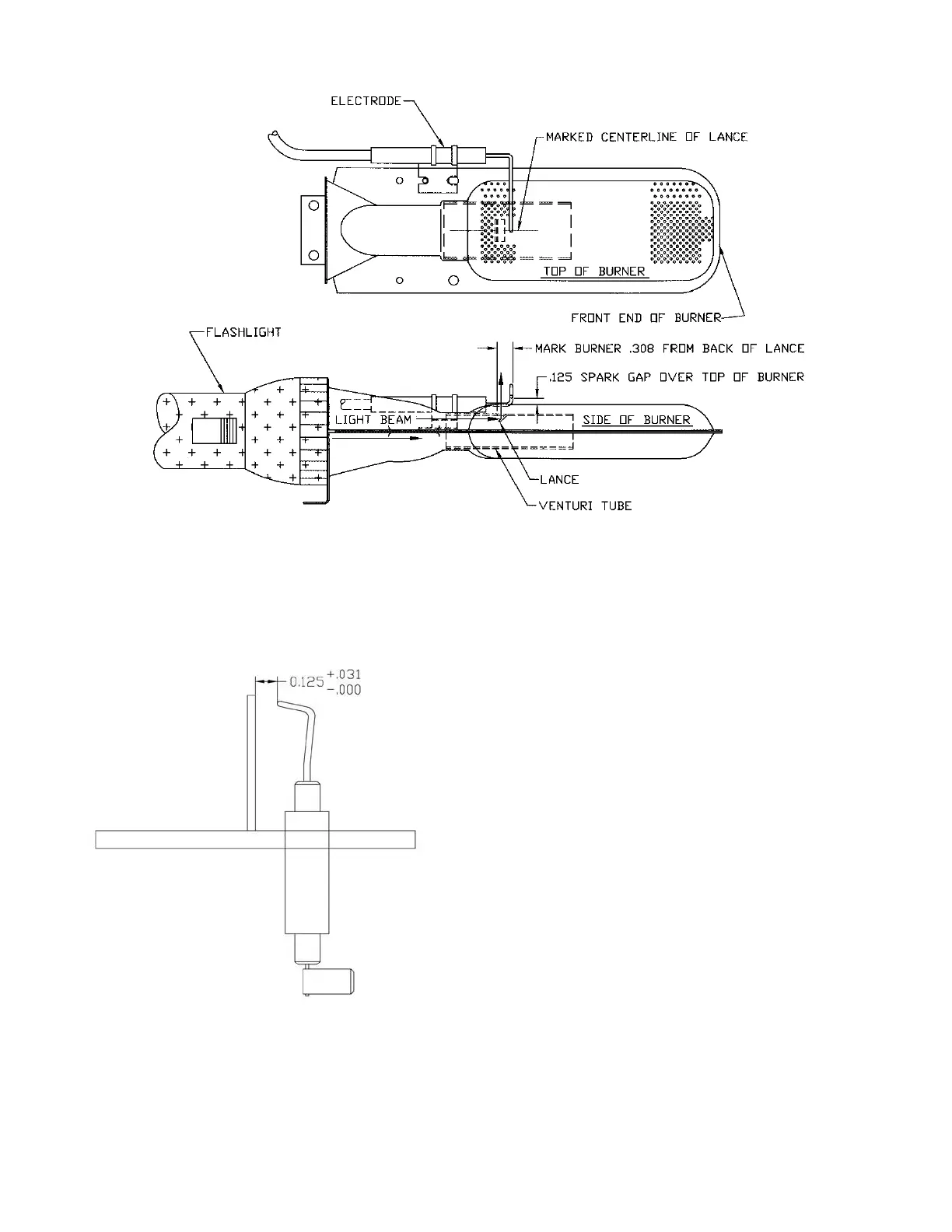

To assure consistent ignition of the burner, it is important for the electrode to be positioned properly over the top of the burner. When
replacing the electrode, or should you be experiencing ignition type problems, the electrode should be positioned as outlined in the
drawing.
1. 1/8" spark gap between electrode and ground.
2. Maintain electrode position of 3/16" over burner ports.
Figure 32
LOCAL FLAME SENSE
PARK MODEL ELECTRODE GAP SPECIFICATIONS AND POSITIONING
To assure consistent ignition of the burner, it is important for the electrode to be positioned properly over the top of the burner. When
replacing the electrode, or should you be experiencing ignition type problems, the electrode should be positioned as outlined in the
drawing.

Suburban SF-30F Specifications

General

BTU Output	30, 000 BTU
Type	Forced Air
Ignition	Direct Spark Ignition
Voltage	12V DC
Fuel Type	Propane
Efficiency	80%
